TS-K009260 Pogo Pin Module – 5 Spring-Loaded Pins

Inquire Download PDF
PREV：TS-K009257 POGOPIN Module-02NEXT：TS-K009259 Pogo Pin Module - 04 Brass Post

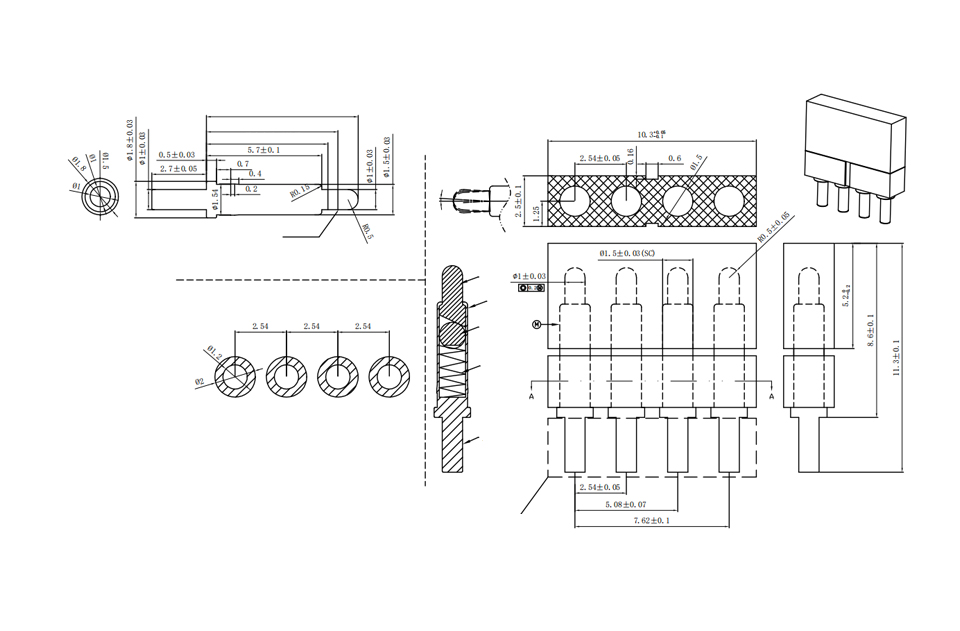

Technical Parameters Drawings
Needle:  Brass
Sleeve:  Brass
Steel ball:  SUS304
Spring:  SUS304
Plastic:  PA9T (UL94V-0) black
Needle:  20-micron platinum plating, 10-micron gold plating,
10-micron palladium plating, 3-micron gold plating,
40–120-micron copper-tin-zinc plating, 80–160-micron copper;
Ball: 2-micron gold plating, 50–100-micron nickel plating;
Needle tube: 10-micron platinum plating, 10-micron gold plating,
10-micron palladium plating, 3-micron gold plating,
40–120-micron copper-tin-zinc plating, 80–160-micron copper; 3-micron gold plating on the welded area.
Specifications: Working height 1.5 mm, spring force 150 g ± 20
Maximum compression stroke:  1.5 mm
Service life:  Over 10,000 cycles
Rated maximum voltage and current:  24 V DC, 5 A
Contact resistance:  Less than 50 mΩ
Environmental parameters: 5.1 High-temperature resistance: 260 °C
5.2 Storage and operating temperature range: -40 °C to 85 °C
5.3 Humidity range: 10% RH to 90% RH
5.4 Salt spray: No corrosion after 192 hours in a 5% industrial sodium chloride solution 5.5 Solder coverage on soldered areas >95% at a temperature of 245°C ±5
Waterproofing requirements:  The mating interface between the pins and the plastic housing must meet IPX5
Notes:  When the current exceeds 1A, a time delay circuit (3 seconds) must be incorporated
Weight:  0.55g
Circuit Diagram
PCB Layout
