TS-K009259 Pogo Pin Module - 04 Brass Post

Inquire Download PDF
PREV：TS-K009260 Pogo Pin Module – 5 Spring-Loaded PinsNEXT：TS-K009256 POGOPIN-01

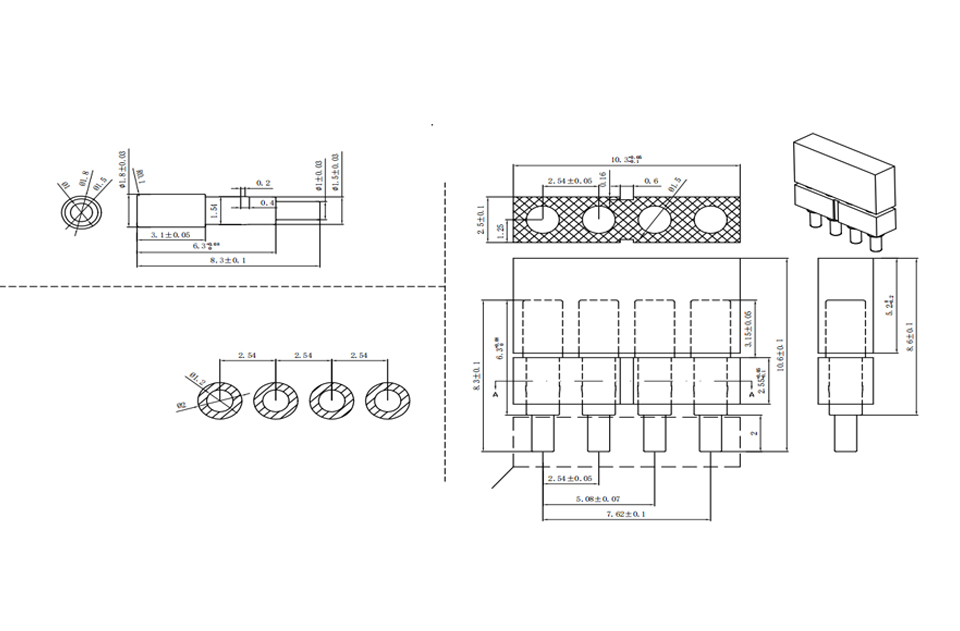

Technical Parameters Drawings
Copper pins:  Brass; Plastic: PA9T (UL94V-0), black
Surface treatment parameters:  The copper post is plated with a 20-micron layer of platinum over a 10-micron layer of gold, followed by a 10-micron layer of palladium and a 3-micron layer of gold. The plating thickness ranges from 40 to 120 microns for the copper-tin-zinc alloy and from 80 to 160 microns for the copper.The soldering area is plated with 3 micro-inches of gold.
Service life:  Over 10,000 cycles
Rated maximum voltage and current:  24 V DC, 5 A
Contact resistance:  Less than 50 mΩ
Environmental parameters: 5.1 High-temperature resistance: 260 °C
5.2 Storage and operating temperature range: -40 °C to 85 °C
5.3 Humidity range: 10% RH to 90% RH
5.4 Salt spray: No corrosion after 192 hours in a 5% industrial sodium chloride solution
5.5 Solder coverage on the soldered area >95% at a temperature of 245°C ±5
Waterproofing requirements:  The mating interface between the pins and the plastic housing must meet IPX5
Notes:  When the current exceeds 1A, a time delay circuit (3 seconds) must be incorporated
Weight:  0.7g
Circuit Diagram
PCB Layout
