TS-Q002078-184 1.25mm Pitch Right-Angle SMT Pin Header Connector

1. The product surface must be clean and free from rust, oxidation, cracks, core defects, burrs and other mechanical damage;
2. Plastic material: high-temperature-resistant polyester; colour: natural;
3. Contact pin material: brass, tin-plated;
4. Solder tab material: brass, tin-plated;

Inquire Download PDF
PREV：TS-Q002144 1.25mm Pitch Vertical SMT Pin Header Connector with LatchNEXT：TS-Q002065-184 1.25mm Pitch Vertical SMT Pin Header Connector
Technical Parameters Specification Drawings
Number of Cores A B C D
2  1.25  7.25  3.05  7.08
3  2.50  8.50  4.30  8.33
4  3.75  9.75  5.55  9.58
5  5.00  11.00  6.80  10.83
6  6.25  12.25  8.05  12.08
7  7.50  13.50  9.30  13.33
8  8.75  14.75  10.55  14.58
9  10.00  16.00  11.80  15.83
10  11.25  17.25  13.05  17.08
11  12.50  18.50  14.30  18.33
12  13.75  19.75  15.55  19.58
13  15.00  21.00  16.80  20.83
14  16.25  22.25  18.05  22.08
15  17.50  23.50  19.30  23.33
16  18.75  24.75  20.55  24.58
Pitch:  1.25 mm
Rated Current:  1A (AC/DC)
Rated Voltage:  125V (AC/DC)
Temperature Range:  -25°C to +85°C
Applicable Wires:  AWG #26 – #32
Applicable PCB Thickness:  0.8 mm – 1.6 mm

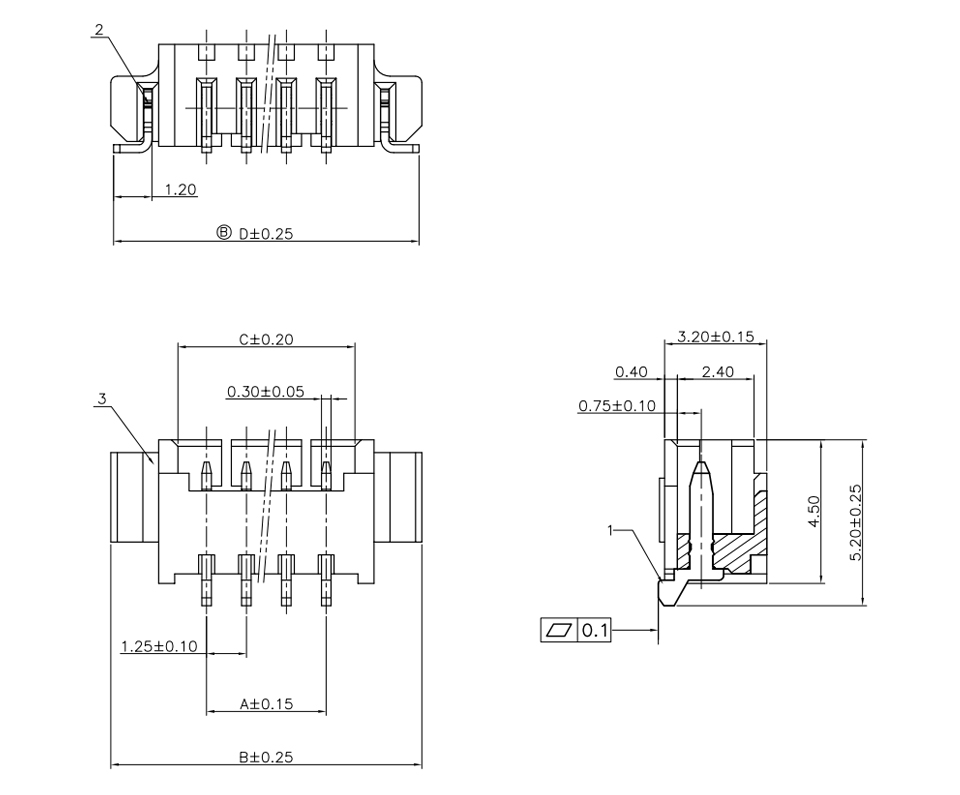

Dimensions Circuit Diagram

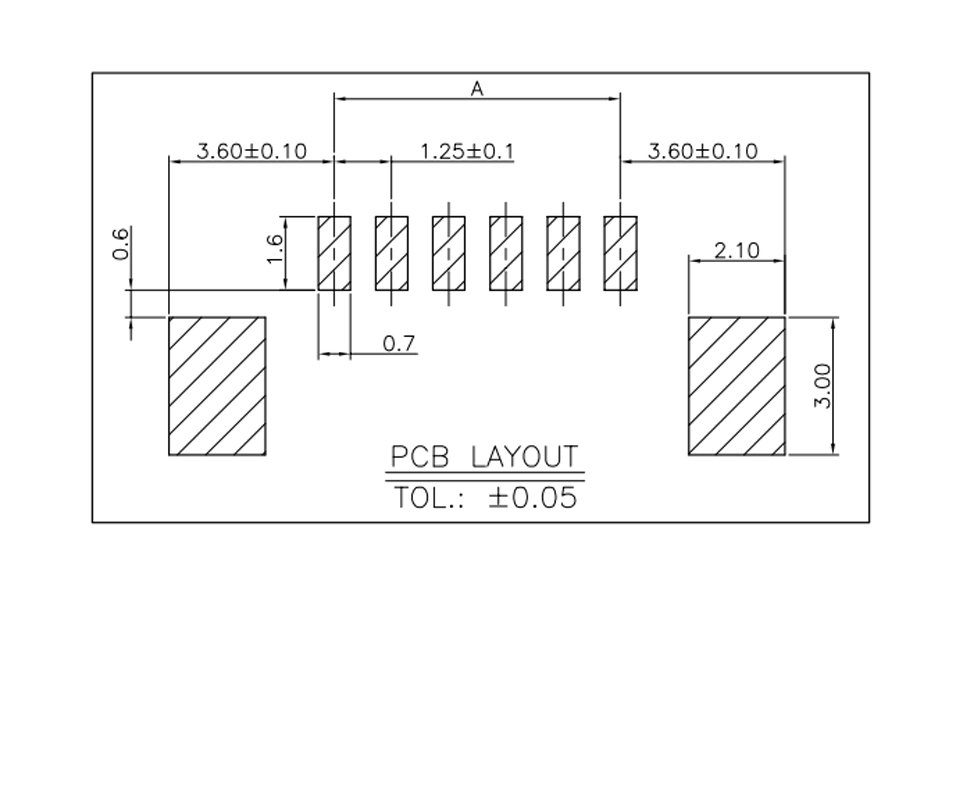

PCB Layout
