TS-Q004001 1.0mm Pitch Vertical SMT Pin Header Connector

1. Connector Surface Clean, No Rust, Oxide, Cracks. Missing Cores, Burrs, And Other Machinery Damage.
2. Housing: Lcp, Color: Natural.
3. Contacts: Phosphor Bronze Tin Plating. Fitting Nail: Brass Tin Plating Phosphor Bronze

Inquire Download PDF
PREV：TS-Q002492-184 0.8mm Pitch Vertical SMT Pin Header ConnectorNEXT：TS-Q002027 1.0mm Pitch Right-Angle SMT Pin Header Connector
Technical Parameters Specification Drawings
REV ECN No. DESCRIPTION DATE
A EC-21082002 RELEASE 2021.08.20
B EC-21082002 ADD   COVER 2022.07.21
C EC-24073001 CHANGE    TERMINAL 2024.07.30
Pitch:  1.0mm
Rated Current:  1A (AC/DC)
Rated Voltage:  50V (AC/DC)
Temperature Range:  -25°C to +85°C
Applicable Wires:  AWG #28 – #32
Applicable PCB Thickness:  0.6mm – 1.2mm

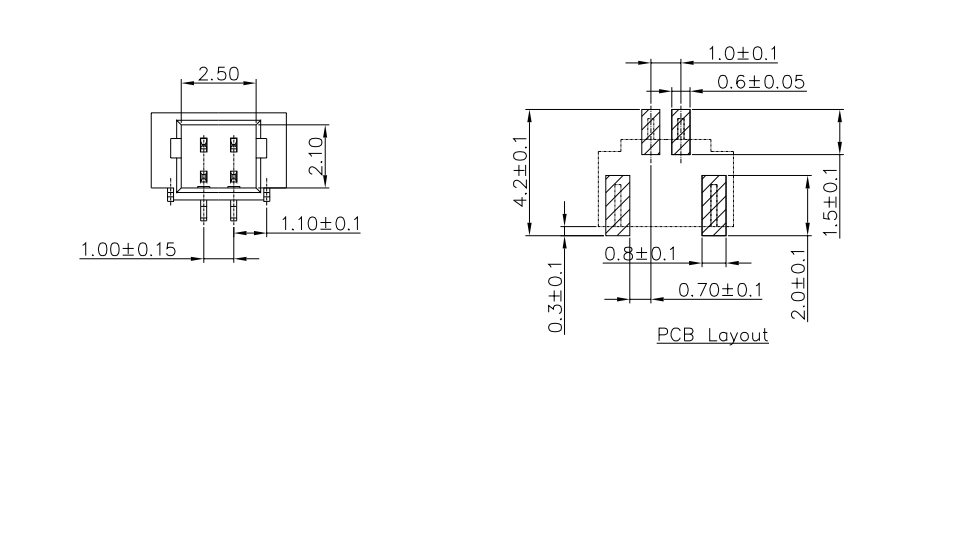

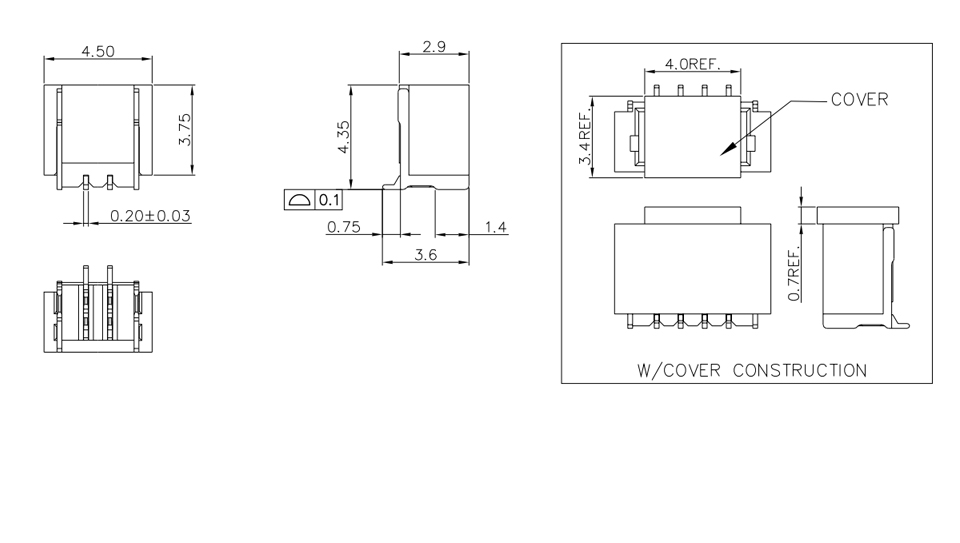

Dimensions Circuit Diagram
