TS-Q002065-184 1.25mm Pitch Vertical SMT Pin Header Connector

1. The product surface must be clean and free from rust, oxidation, cracks, core defects, burrs and other mechanical damage;
2. Plastic material: H-TEMP PLASTIC; Colour: natural;
3. Metal material: brass, tin-plated;

Inquire Download PDF
PREV：TS-Q002078-184 1.25mm Pitch Right-Angle SMT Pin Header ConnectorNEXT：TS-Q002046 1.25mm Pitch Right-Angle SMT Pin Header Connector with Latch
Technical Parameters Specification Drawings
PIN A B  C
02  1.25  7.25  3.05
03  2.50  8.50  4.30
04  3.75  9.75  5.55
05  5.00  11.00  6.80
06  6.25  12.25  8.05
07  7.50  13.50  9.30
08  8.75  14.75  10.55
09  10.00  16.00  11.80
10  11.25  17.25  13.05
11  12.50  18.50  14.30
12  13.75  19.75  15.55
13  15.00  21.00  16.80
14  16.25  22.25  18.05
15  17.50  23.50  19.30
16  18.75  24.75  20.55
Pitch:  1.25 mm
Rated Current:  1A (AC/DC)
Rated Voltage:  125V (AC/DC)
Temperature Range:  -25°C to +85°C
Applicable Wires:  AWG #26 – #32
Applicable PCB Thickness:  0.8 mm – 1.6 mm

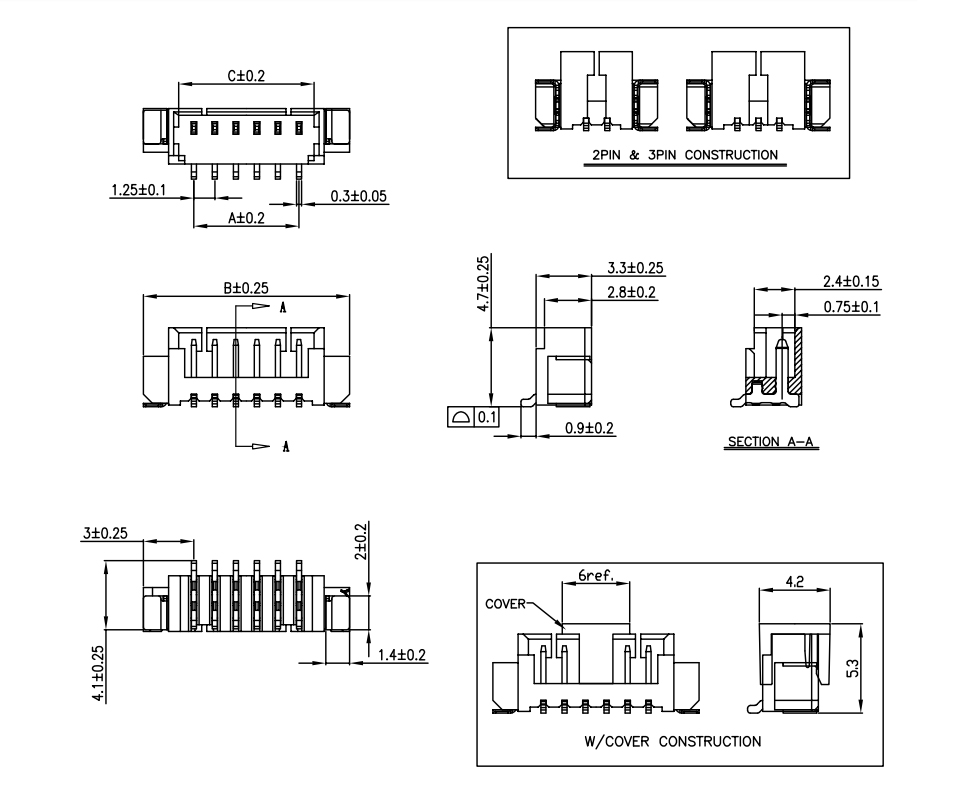

Dimensions Circuit Diagram

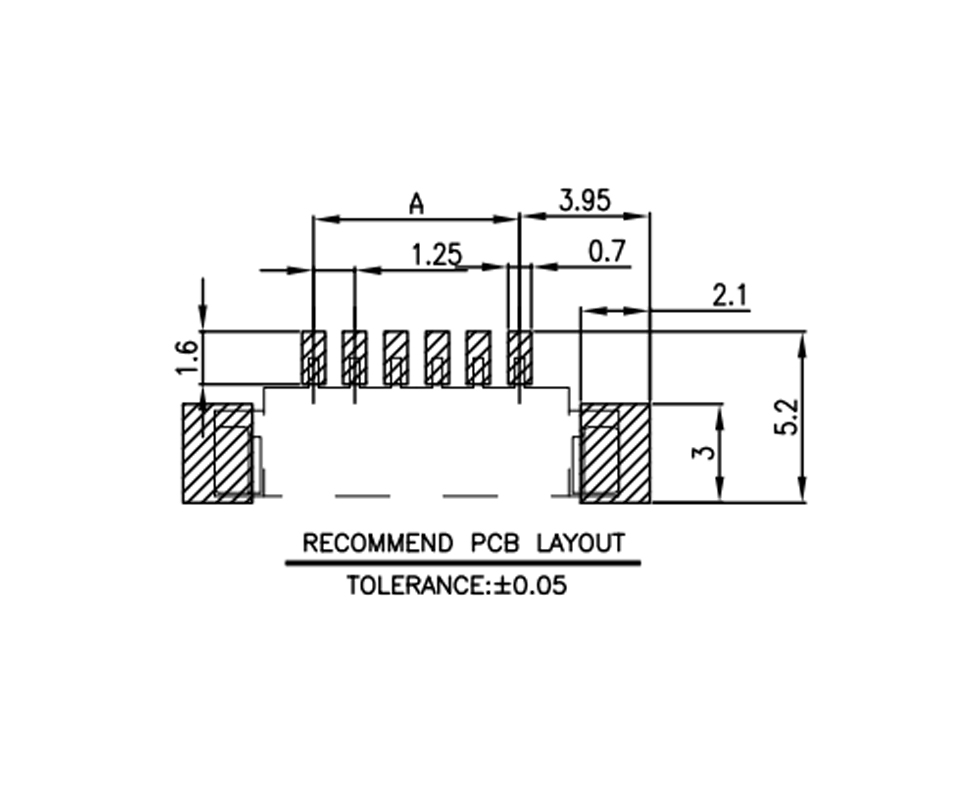

PCB Layout
Related Products
