TS-Q002013-184 1.5mm Pitch Right-Angle SMT Pin Header

1. The product surface is clean and free from rust, oxidation, cracks, core defects, burrs and other mechanical damage;
2. Plastic material: high-temperature-resistant polyester; colour: natural;
3. Solder tabs: brass, tin-plated;
4. Contact pins: brass, tin-plated.

Inquire Download PDF
PREV：TS-K009026-184 1.5mm Pitch Vertical SMT Pin HeaderNEXT：TS-Q024140-0129 1.25mm Pitch Ultra-Thin Right-Angle SMT Pin Header Connector
Technical Parameters Drawings
Number of cores A B C
2 1.5 6 3.6
3 3 7.5 5.1
4 4.5 9 6.6
5 6 10.5 8.1
6 7.5 12 9.6
7 9 13.5 11.1
8 10.5 15 12.6
9 12 16.5 14.1
10 13.5 18 15.6
11 15 19.5 17.1
12 16.5 21 18.6
13 18 22.5 20.1

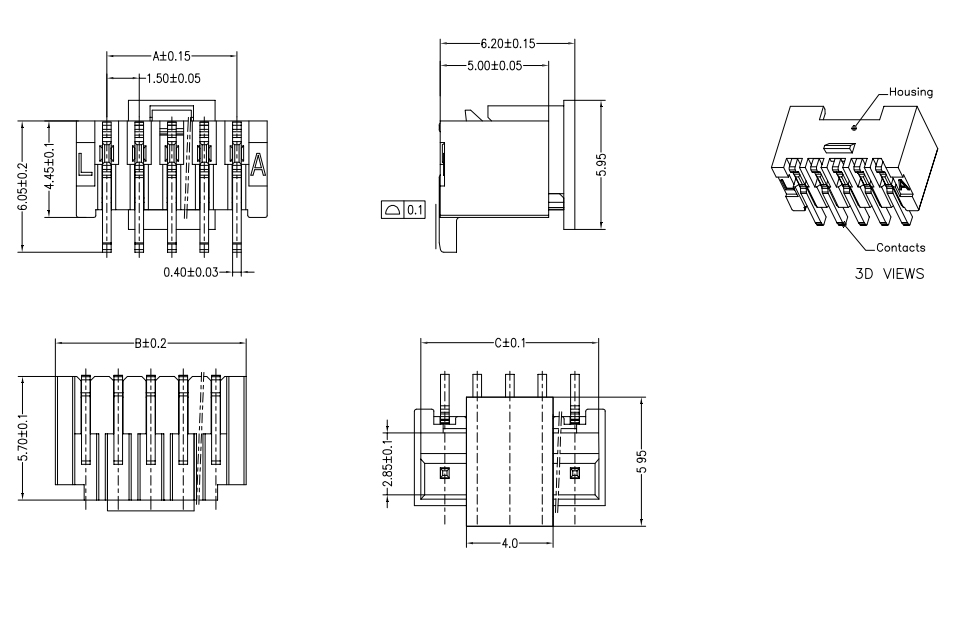

Dimensions Circuit Diagram

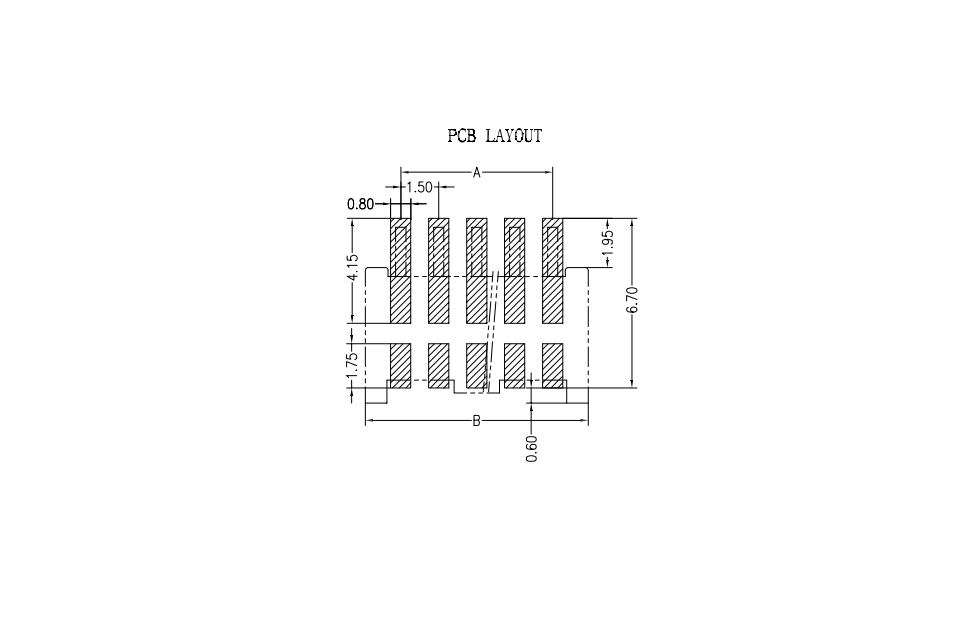

PCB Layout
