TS-Q002495-134 1.25mm Pitch Right-Angle Pin Connector

Inquire Download PDF
PREV：TS-Q024140-0129 1.25mm Pitch Ultra-Thin Right-Angle SMT Pin Header ConnectorNEXT：TS-Q002494-134 1.25mm Pitch Straight Pin Connector
Technical Parameters Specification Drawings
Poles Type Dimensions mm
A B
2  1.25-2AW 1.25  4.35
3  1.25-3AW 2.50  5.60
4  1.25-4AW 3.75  6.85
5  1.25-5AW 5.00  8.10
6  1.25-6AW 6.25  9.35
7  1.25-7AW 7.50  10.60
8  1.25-8AW 8.75  11.85
9  1.25-9AW 10.00  13.10
10  1.25-10AW 11.25  14.35
11  1.25-11AW 12.50  15.60
12  1.25-12AW 13.75  16.85
13  1.25-13AW 15.00  18.10
14  1.25-14AW 16.25  19.35
15  1.25-15AW 17.50  20.60
16  1.25-16AW 18.75  21.85
Number of poles:  2–16
Applicable wire gauge:  AWG 32–28
Applicable PCB thickness:  0.8 mm
Temperature range:  -25°C to 85°C
Voltage rating:  125 V AC/DC
Current rating:  1 A
Contact resistance:  <0.03 Ω
Insulation resistance:  >1000 MΩ
Withstand voltage:  250 V AC for 1 minute

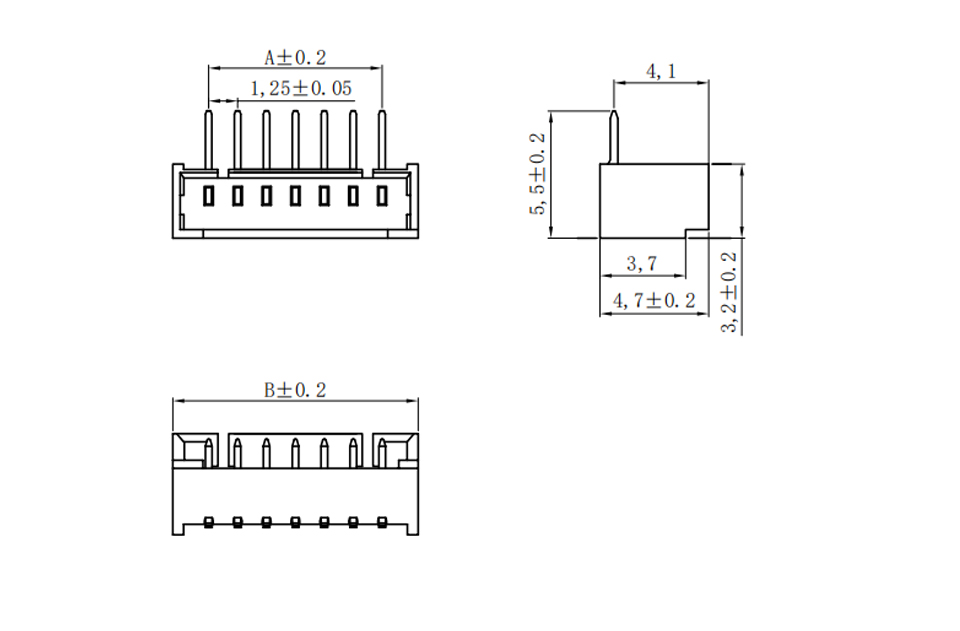

Dimensions Circuit Diagram

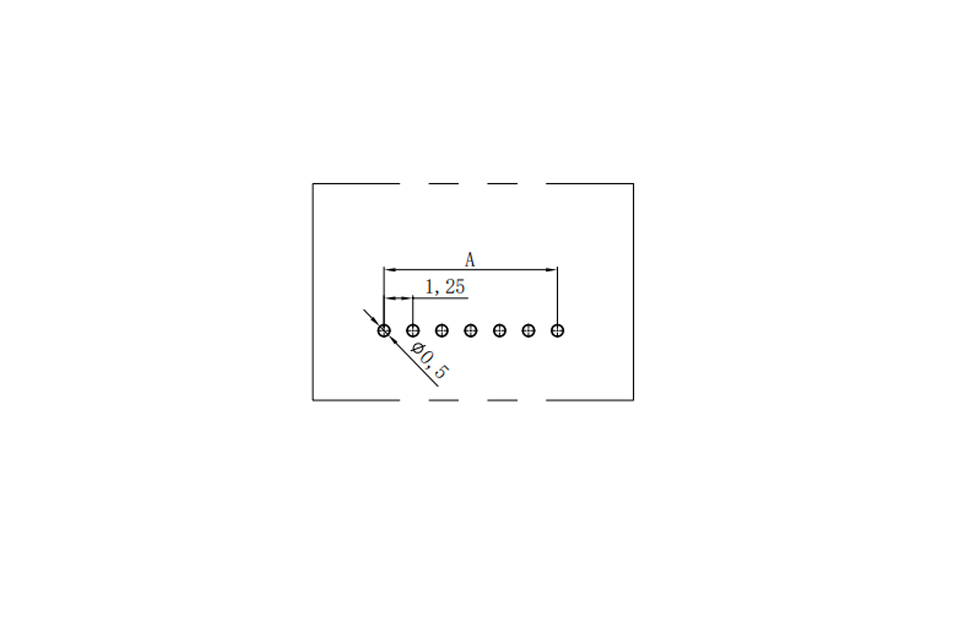

PCB Layout
