TS-Q002046 1.25mm Pitch Right-Angle SMT Pin Header Connector with Latch

1. The plastic surface must be smooth and free from burrs, visible shrinkage, defects, cracks, etc.;
2. Temperature range: -25°C to +85°C;
3. Rated current: 15 V AC/DC (equivalent);
4. Contact resistance: <200 mΩ;
5. Insulation resistance: ≥100 MΩ;
6. Withstand voltage: 500 V AC for 1 minute.

Inquire Download PDF
PREV：TS-Q002065-184 1.25mm Pitch Vertical SMT Pin Header ConnectorNEXT：TS-Q002493-184 0.8mm Pitch Right-Angle SMT Pin Header Connector
Technical Parameters Specification Drawings
1.25 Horizontal surface-mount A B C
1.25WT-2P 1.25  4.90  5.75
1.25WT-3P 2.50  6.15  7.00
1.25WT-4P 3.75  7.40  8.25
1.25WT-5P 5.00  8.65  9.50
1.25WT-6P 6.25  9.90  10.75
1.25WT-7P 7.50  11.15  12.00
1.25WT-8P 8.75  12.40  13.25
1.25WT-9P 10.00  13.65  14.50
1.25WT-10P 11.25  14.90  15.75

1. The plastic surface should be smooth, free of burrs, obvious shrinkage, defects, cracks, etc.
2. Temperature range: -25℃ to +85℃;
3. Rated current: 15V AC DC (equivalent);
4. Contact resistance: ≤200 milliohms;
5. Insulation resistance: ≥100 megohms;
6. Withstand voltage: 500V, AC/minute.

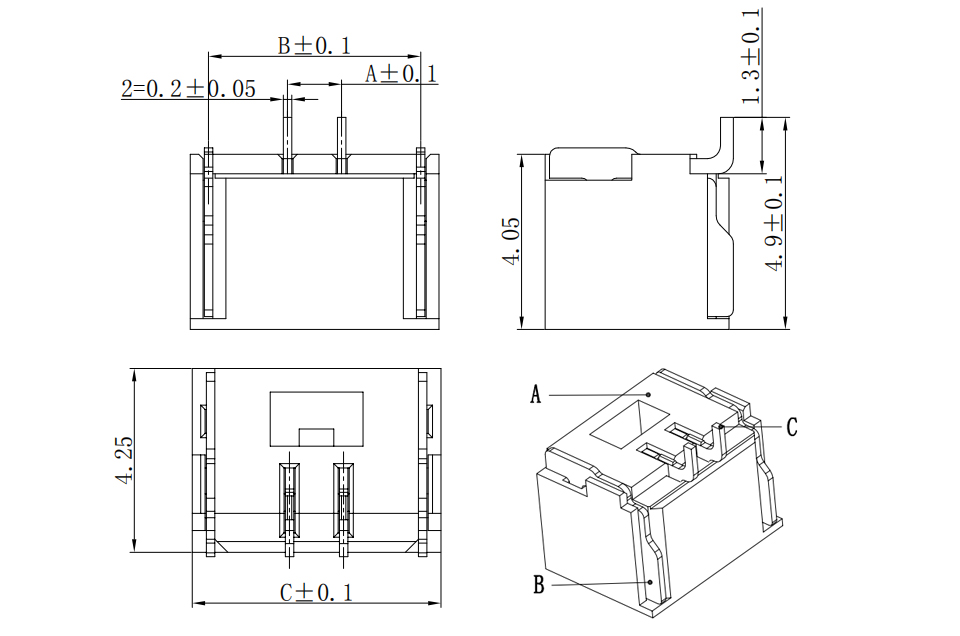

Dimensions Circuit Diagram

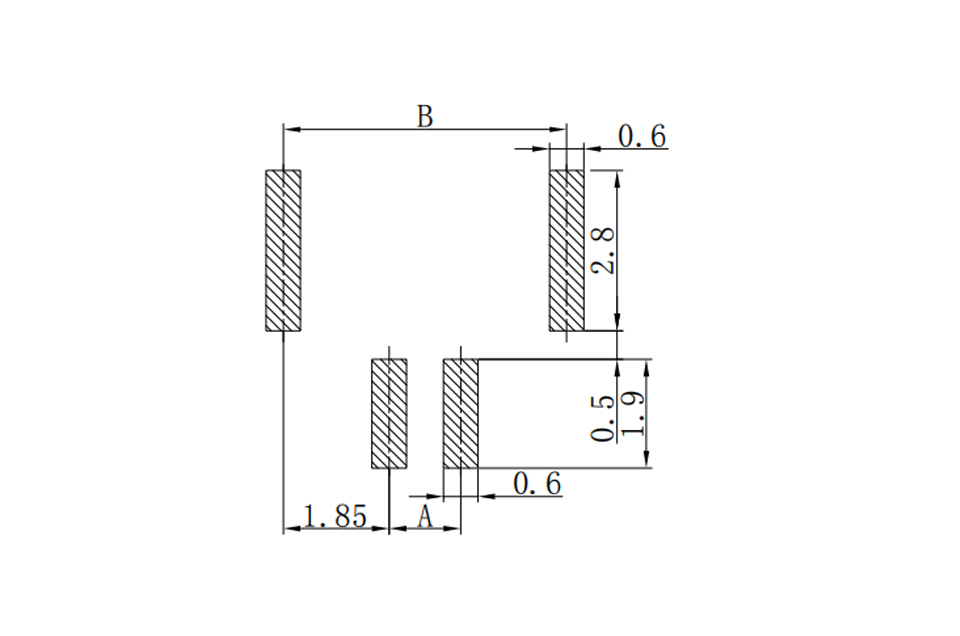

PCB Layout
