TS-Q002027 1.0mm Pitch Right-Angle SMT Pin Header Connector

1. The plastic surface shall be smooth and free from burrs, visible shrinkage, defects, cracks, etc.;
2. Temperature range: -25°C to +85°C;
3. Rated current: 15 V AC/DC (equivalent);
4. Contact resistance: <200 mΩ; 5. Insulation resistance: >100 MΩ;
6. Withstand voltage: 500 V AC/minute.

Inquire Download PDF
PREV：TS-Q004001 1.0mm Pitch Vertical SMT Pin Header ConnectorNEXT：No next article
Technical Parameters Drawings
1.0  A B C
1.0 -2P 1 3.25 4.35
1.0 -3P 2 4.25  5.35
1.0 -4P 3 5.25 6.35
1.0 -5P 4 6.25  7.35
1.0 -6P 5 7.25 8.35
1.0 -7P 6 8.25  9.35
1.0 -8P 7 9.25 10.35
1.0 -9P 8 10.25  11.35
1.0 -10P 9 11.25 12.35
1.0 -11P 10 12.25  13.35
1.0 -12P 11 13.25 14.35
1.0 -13P 12 14.25  15.35
1.0 -14P 13 15.25 16.35
1.0 -15P 14 16.25  17.35
1.0 -16P 15 17.25 18.35

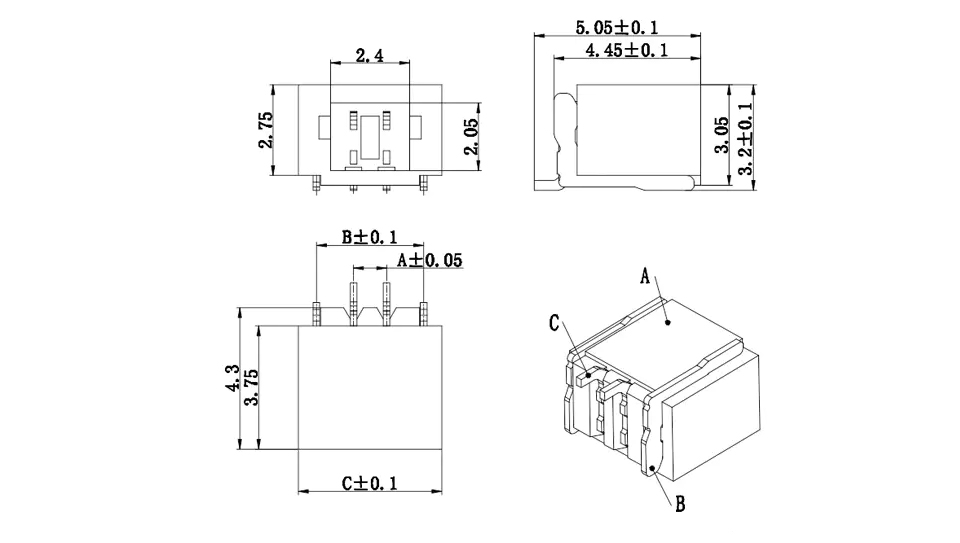

Dimensions Circuit Diagram

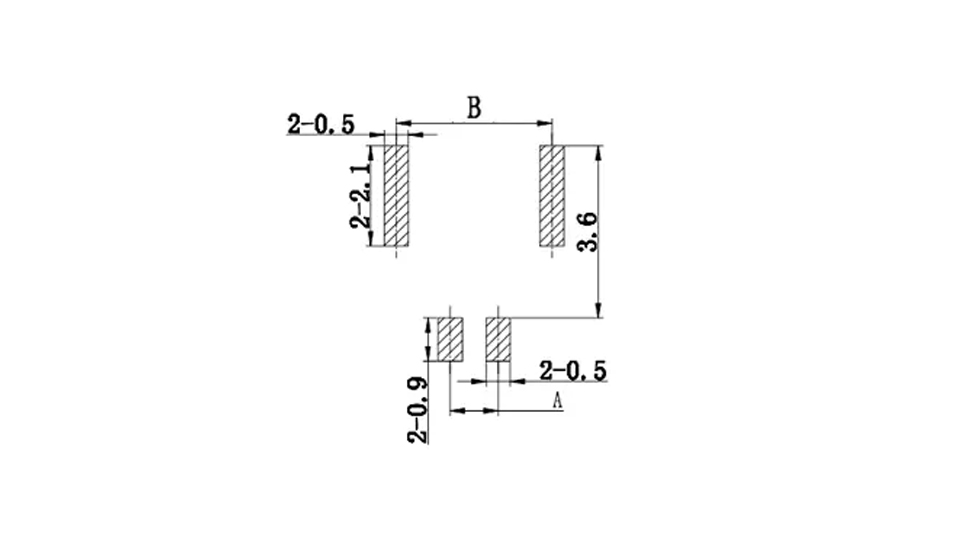

PCB Layout
