TS-Q002144 1.25mm Pitch Vertical SMT Pin Header Connector with Latch

1. Connector Surface Clean, No Rust, Oxide, Cracks, Missing Cores, Burrs, And Other Machinery Damage.
2. Housing: Lcp, Color: Natural.
3. Contacts: Brass, Tin Plating.

Inquire Download PDF
PREV：TS-Q002494-134 1.25mm Pitch Straight Pin ConnectorNEXT：TS-Q002078-184 1.25mm Pitch Right-Angle SMT Pin Header Connector
Specification Drawings
Pitch:  1.25 mm
Rated Current:  1A (AC/DC)
Rated Voltage:  50V (AC/DC)
Temperature Range:  -25°C to +85°C
Applicable Wire Gauge:  AWG #26 – #32
Applicable PCB Thickness:  0.8 mm – 1.6 mm

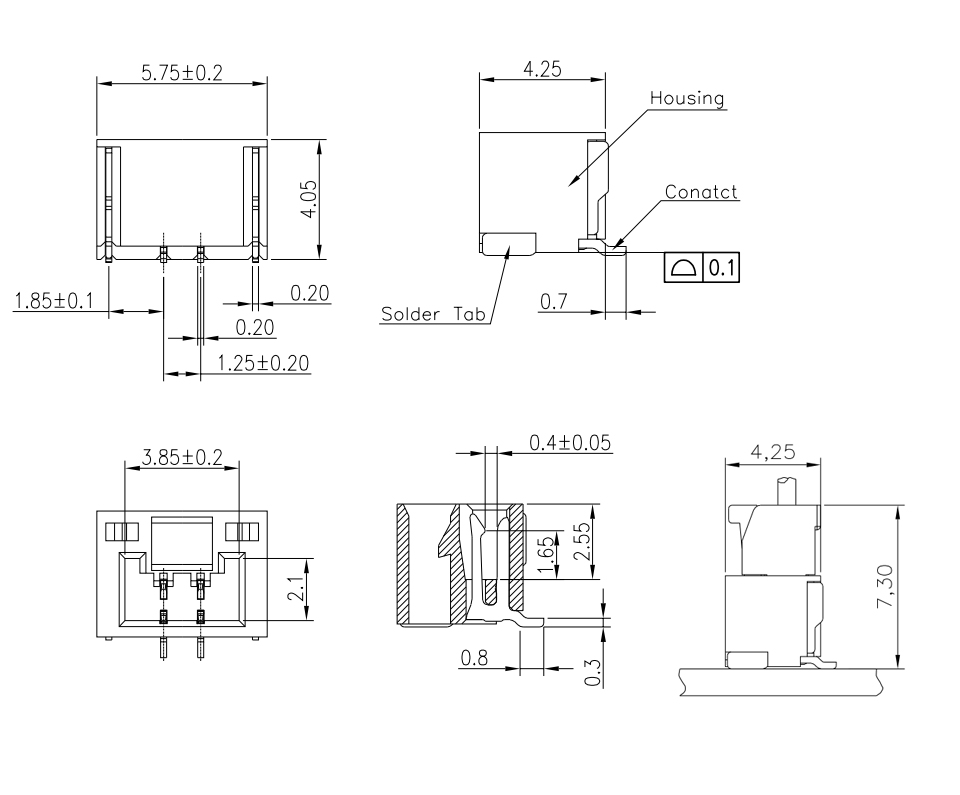

Dimensions Circuit Diagram

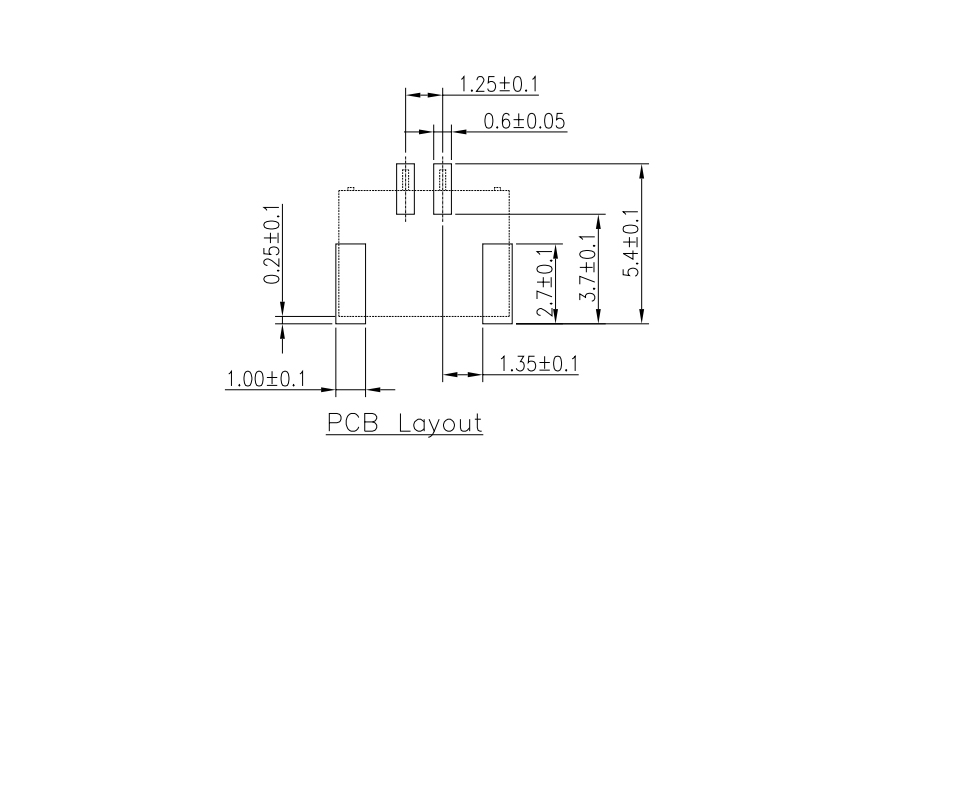

PCB Layout
