TS-Q002494-134 1.25mm Pitch Straight Pin Connector

Inquire Download PDF
PREV：TS-Q002495-134 1.25mm Pitch Right-Angle Pin ConnectorNEXT：TS-Q002144 1.25mm Pitch Vertical SMT Pin Header Connector with Latch

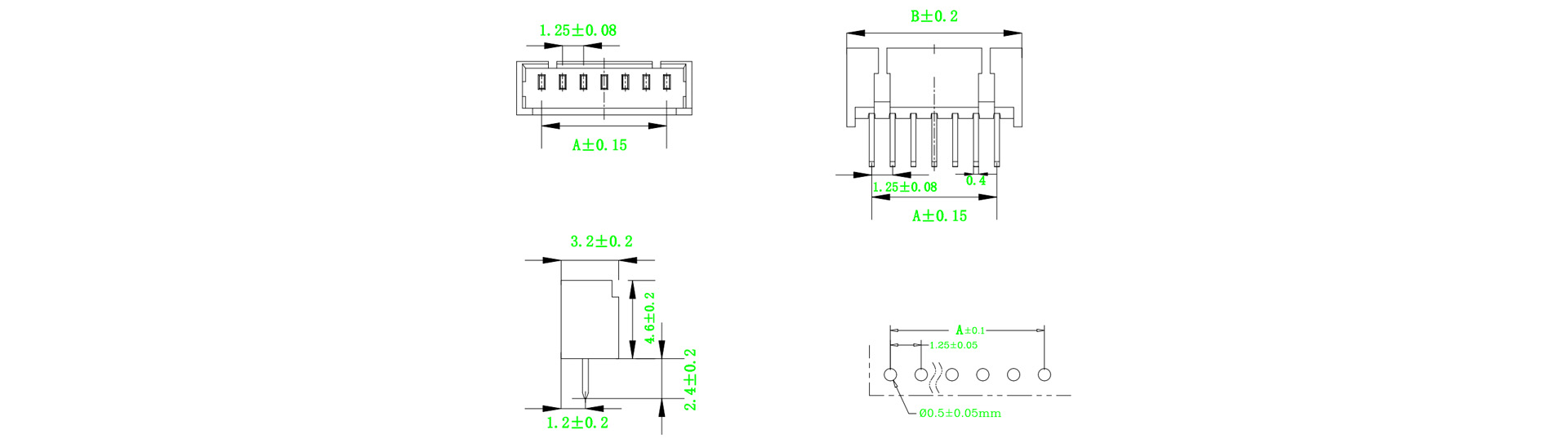

Technical Parameters Specification Drawings
Poles Type Dimensions mm
A B
2  1.25-2A 1.25  4.35
3  1.25-3A 2.50  5.60
4  125-4A 3.75  6.85
5  1.25-5A 5.00  8.10
6  1.25-6A 6.25  9.35
7  1.25-7A 7.50  10.60
8  125-8A 8.75  11.85
9  1.25-9A 10.00  13.10
10  125-10A 11.25  14.35
11  1.25-11A 12.50  15.60
12  1.25-12A 13.75  16.85
13  1.25-13A 15.00  18.10
14  1.25-14A 16.25  19.35
15  125-15A 17.50  20.60
16  1.25-16A 18.75  21.85
Material: PA66
Number of Poles:  2–16
Applicable Wire Gauge:  AWG #32 – #28
Applicable PC Board Thickness:  0.8 mm
Temperature Range:  -25°C to +85°C
Voltage Rating:  125V AC/DC
Current Rating:  1A
Contact Resistance:  ≤ 0.03 Ω
Insulation Resistance:  ≥ 1000 MΩ
Withstand Voltage:  250V AC / 1 min
Material:  Wafer — Beige (Thermoplastic), UL94V-0
