TS-Q002492-184 0.8mm Pitch Vertical SMT Pin Header Connector

1. Connector Surface Clean, No Rust, Oxide, Cracks, Missing Cores, Burrs, And Other Machinery Damage.
2. Housing: LCP, Color: Natural.
3. Contacts: Phosphor Bronze Tin Plating.
4. Fitting Nail: Phosphor Bronze Tin Plating.

Inquire Download PDF
PREV：TS-Q002493-184 0.8mm Pitch Right-Angle SMT Pin Header ConnectorNEXT：TS-Q004001 1.0mm Pitch Vertical SMT Pin Header Connector

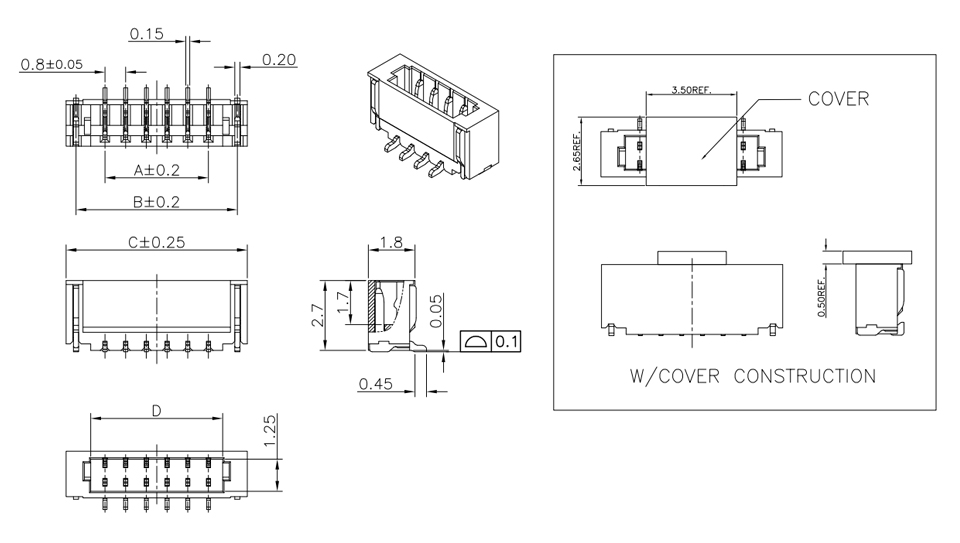

Technical Parameters Specification Drawings
No.of Contacts DIMA DIMB DIMC DIMD
2  0.8  3.04  3.8  1.9
3  1.6  3.84  4.6  2.7
4  2.4  4.64  5.4  3.5
5  3.2  5.44  6.2  4.3
6  4.0  6.24  7.0  5.1
7  4.8  7.04  7.8  5.9
8  5.6  7.84  8.6  6.7
9  6.4  8.64  9.4  7.5
10  7.2  9.44  10.2  8.3
11  8.0  10.24  11.0  9.1
12  8.8  11.04  11.8  9.9
13  9.6  11.84  12.6  10.7
14  10.4  12.64  13.4  11.5
15  11.2  13.44  14.2  12.3
16  12.0  14.24  15.0  13.1
17  12.8  15.04  15.8  13.9
18  13.6  15.84  16.6  14.7
19  14.4  16.64  17.4  15.5
20  15.2  17.44  18.2  16.3
Pitch:  0.8 mm
Rated Current:  0.7 A (AC/DC)
Rated Voltage:  30 V (AC/DC)
Temperature Range:  -25°C to +85°C
Applicable Wire Gauge:  AWG #36
Applicable PCB Thickness:  0.8 mm
Dimensions Circuit Diagram

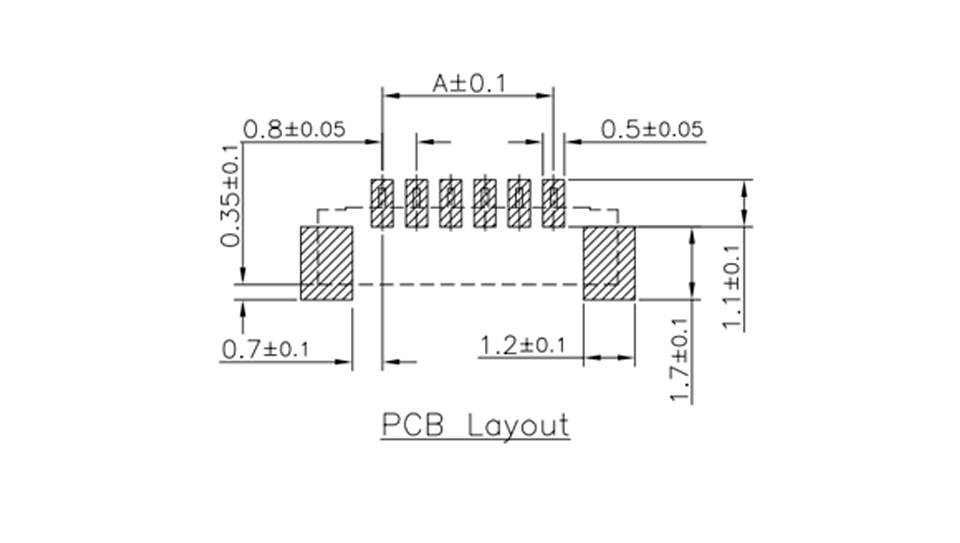

PCB Layout
