TS-Q024140-0129 1.25mm Pitch Ultra-Thin Right-Angle SMT Pin Header Connector

Inquire Download PDF
PREV：TS-Q002013-184 1.5mm Pitch Right-Angle SMT Pin HeaderNEXT：TS-Q002495-134 1.25mm Pitch Right-Angle Pin Connector

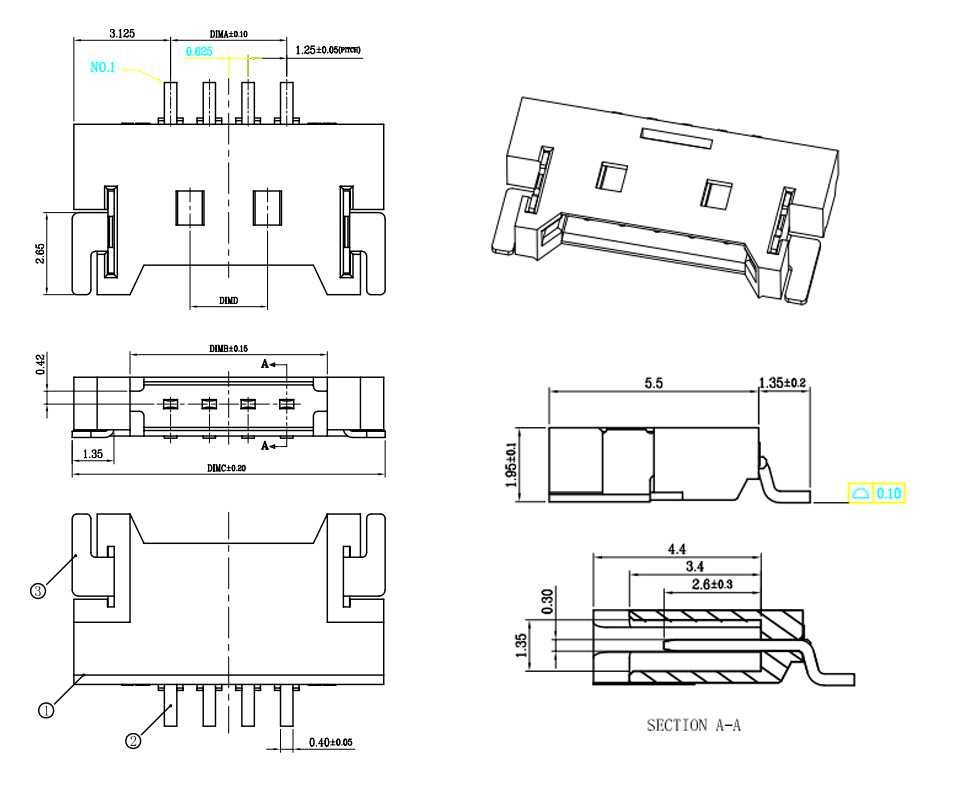

Technical Parameters Specification Drawings
CKT DIM A DIM B DIM C DIM D
2  1.25  3.87  7.60  0.00
3  2.50  5.12  8.85  0.00
4  3.75  6.37  10.10  2.50
5  5.00  7.62  11.35  3.75
6  6.25  8.87  12.60  5.00
7  7.50  10.12  13.85  6.25
8  8.75  11.37  15.10  7.50
9  10.00  12.62  16.35  8.75
10  11.25  13.87  17.60  10.00
11  12.50  15.12  18.85  11.25
12  13.75  16.37  20.10  12.50
13  15.00  17.62  21.35  13.75
14  16.25  18.87  22.60  15.00
15  17.50  20.12  23.85  16.25
16  18.75  21.37  25.10  17.50
17  20.00  22.62  26.35  18.75
18  21.25  23.87  27.60  20.00
19  22.50  25.12  28.85  21.25
20  23.75  26.37  30.10  22.50
1. The surface of the plastic components shall be smooth, free of burrs, and devoid of visible shrinkage, defects, cracks, or similar imperfections.
2. Temperature Range:  -40°C to 85°C.
3. Rated Voltage:  125V (AC/DC).
4. Contact Resistance:  <0.02 Ω.
5. Insulation Resistance:  >100 MΩ.
6. Rated Current: Applicable Wire Types:
a. AWG #28: 2.5A (per pin)
b. AWG #30: 1.0A (per pin)
c. AWG #32: 0.8A (per pin)
Dimensions Circuit Diagram

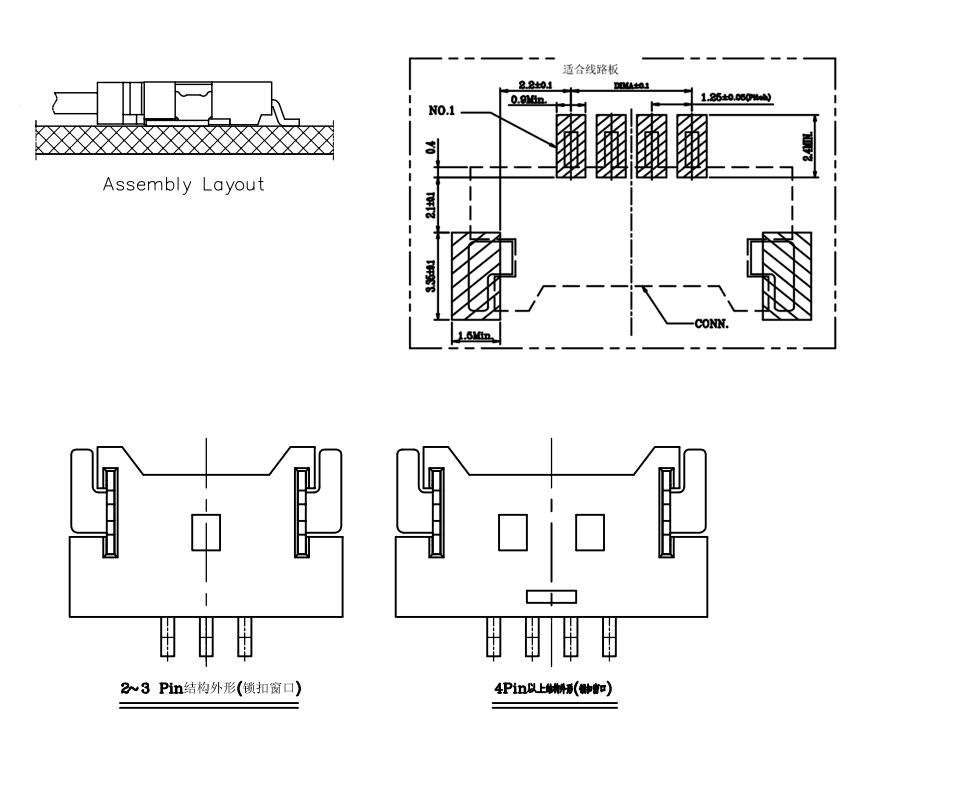

PCB Layout
