TS-K009026-184 1.5mm Pitch Vertical SMT Pin Header

 1. The product surface is clean and free from rust, oxidation, cracks, core defects, burrs and other mechanical damage;
 2. Plastic material: high-temperature-resistant polyester; colour: natural;
 3. Solder tabs: brass, tin-plated;
 4. Contact pins: brass, tin-plated.

Inquire Download PDF
PREV：CO-A002013 1.5mm Pitch Horizontal SMT Header Connector with Locking LatchNEXT：TS-Q002013-184 1.5mm Pitch Right-Angle SMT Pin Header

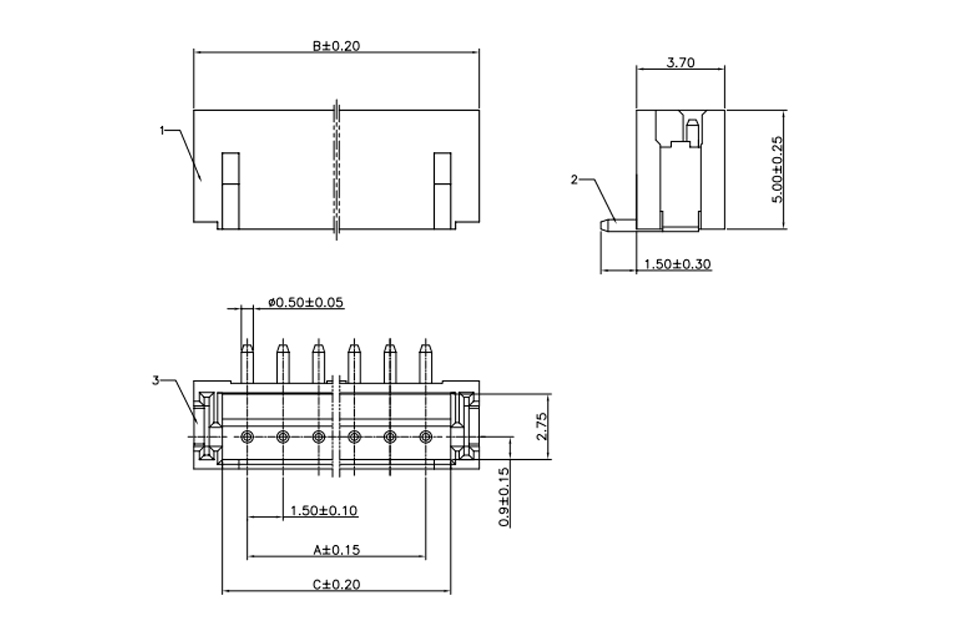

Technical Parameters Specification Drawings
Number of cores A B C
2 1.5 6 3.6
3 3 7.5 5.1
4 4.5 9 6.6
5 6 10.5 8.1
6 7.5 12 9.6
7 9 13.5 11.1
8 10.5 15 12.6
9 12 16.5 14.1
10 13.5 18 15.6
11 15 19.5 17.1
12 16.5 21 18.6
13 18 22.5 20.1
Pitch:  1.5mm
Rated Current:  1A (AC/DC)
Rated Voltage:  50V (AC/DC)
Temperature Range:  -25°C to +85°C
Applicable Wires:  AWG #26 – #32
Applicable PCB Thickness:  0.6mm – 1.2mm
Dimensions Circuit Diagram

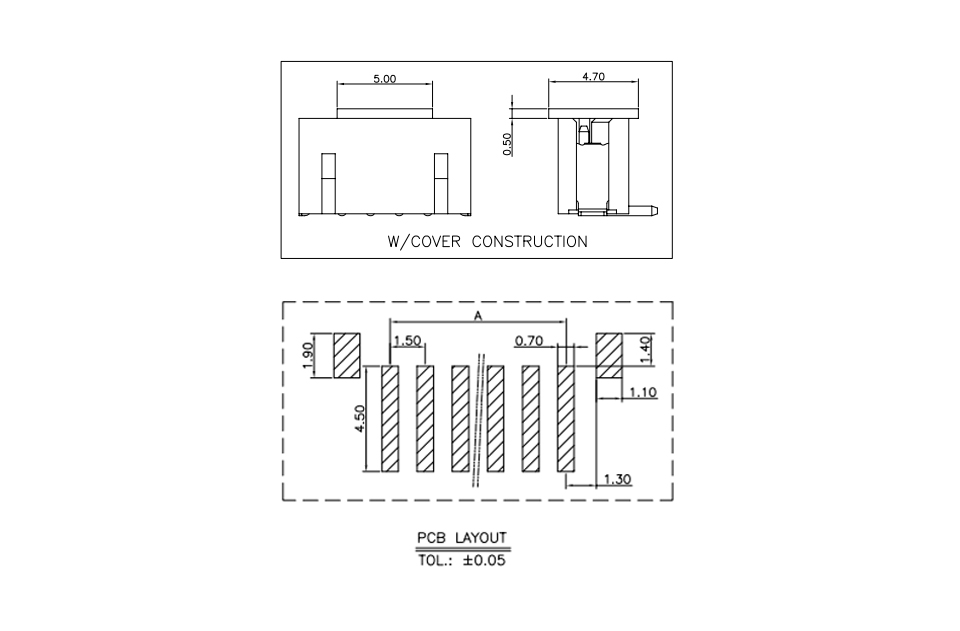

PCB Layout
