CO-A002013 1.5mm Pitch Horizontal SMT Header Connector with Locking Latch

1. Place the finished products onto spools, with 1,000 pieces per spool. Affix a certificate of conformity to each spool, then place the spools containing the products into an outer carton. Line the outer carton with a large PE bag beforehand, and affix a certificate of conformity to the outer carton.
2. All materials must comply with RoHS standards regarding the control of hazardous substances.

Inquire Download PDF
PREV：CO-A002013 1.5mm Pitch Vertical SMT Header Connector with Locking LatchNEXT：TS-K009026-184 1.5mm Pitch Vertical SMT Pin Header
Technical Parameters Specification Drawings
PIN. DIM A DIM B DIM C
2pin 1.5 4.3 3.7
3pin 3 5.8 5.2
4pin 4.5 7.3 6.7
5pin 6 8.8 8.2
6pin 7.5 10.3 9.7
7pin 9 11.8 11. 20
8pin 10.5 13.3 12.7
9pin 12 14.8 14.2
10pin 13.5 16.3 15.7
11pin 15 17.8 17.2
12pin 16.5 19.3 18.7
13pin 18 20.8 20.2
14pin 19.5 22.3 21.7
15pin 21 23.8 23.2
Poles:  02 to 15
Contact resistance: <20mΩ
Insulation resistance: >1000ΜΩ
Rated voltage: 350V AC DC
Rated current: 3.0A AC DC
Withstand Voltage:  500V AC/minute
Temperature Range: -25℃~ +85°℃
Housing:  LCP UL94V-0, Natural(Beige)
Contacts:  Phosphor Bronze/MATTE Sn

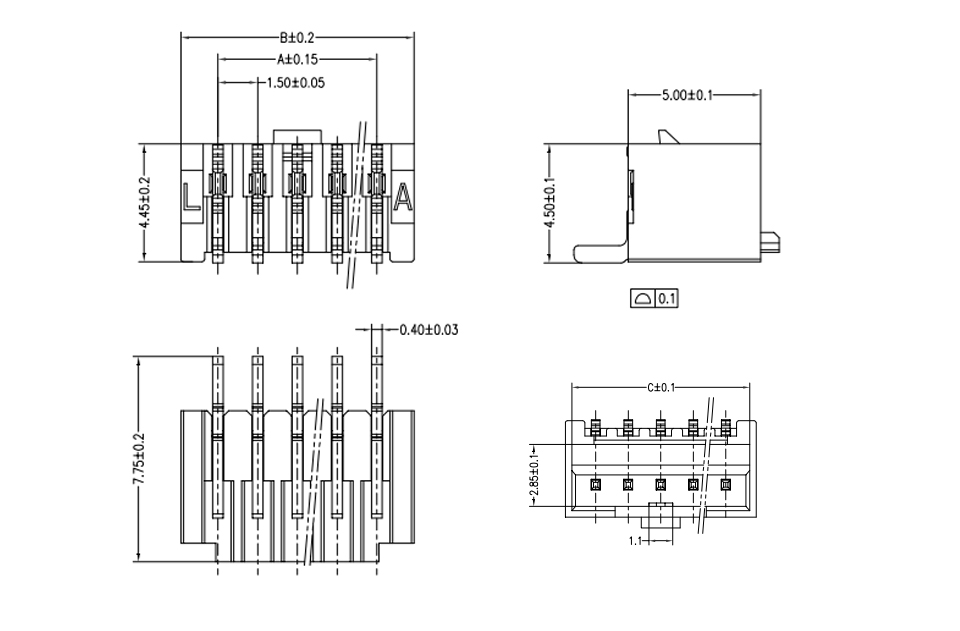

Dimensions Circuit Diagram

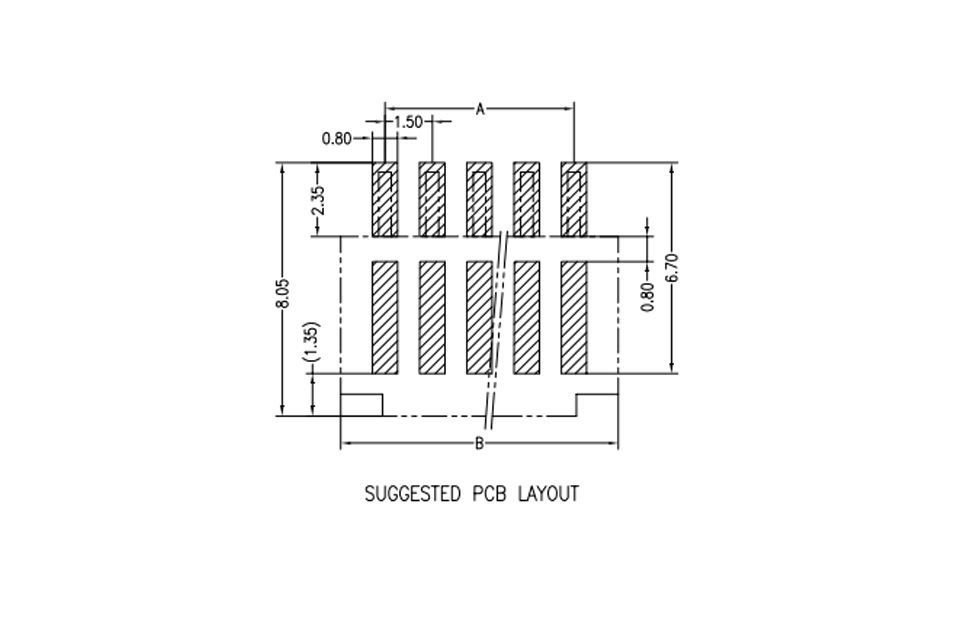

PCB Layout
