CO-A002013 1.5mm Pitch Vertical SMT Header Connector with Locking Latch

Inquire Download PDF
PREV：CO-A001035-134 1.5mm Pitch Right-Angle Pin ConnectorNEXT：CO-A002013 1.5mm Pitch Horizontal SMT Header Connector with Locking Latch
Technical Parameters Specification Drawings
PIN. DIM A DIM B DIM C
2pin 1.50  4.30  3.70
3pin 3.00  5.80  5.20
4pin 4.50  7.30  6.70
5pin 6.00  8.80  8.20
6pin 7.50  10.30  9.70
7pin 9.00  11.80  11.20
8pin 10.50  13.30  12.70
9pin 12.00  14.80  14.20
10pin 13.50  16.30  15.70
11pin 15.00  17.80  17.20
12pin 16.50  19.30  18.70
13pin 18.00  20.80  20.20
14pin 19.50  22.30  21.70
15pin 21.00  23.80  23.20
Rated current:  3.0 A
Contact resistance:  50 mΩ
Insulation resistance:  100 MΩ
Withstand voltage:  500 V, 50 Hz, 1 min

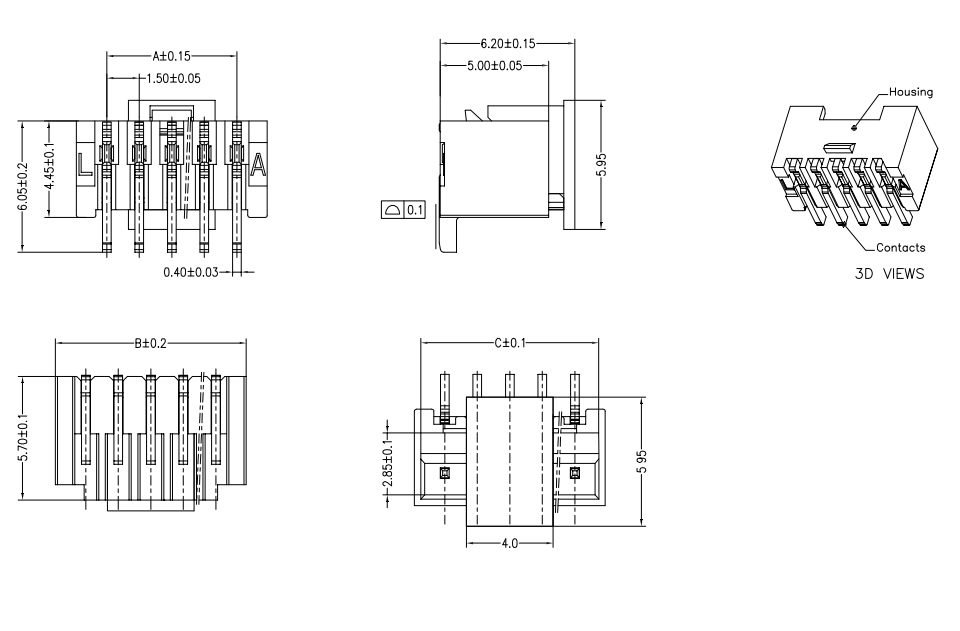

Dimensions Circuit Diagram

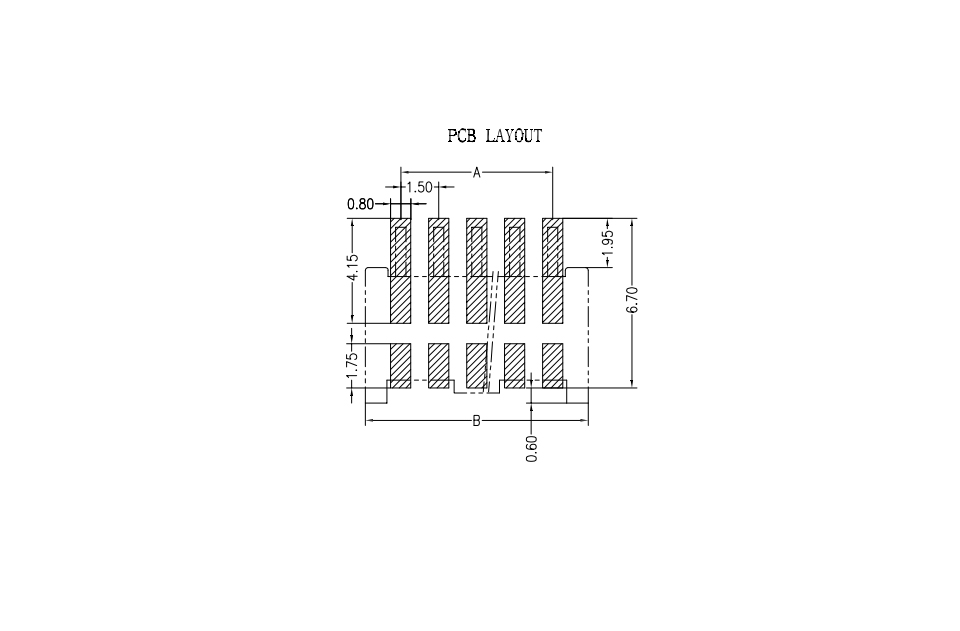

PCB Layout
