CO-A001035-134 1.5mm Pitch Right-Angle Pin Connector

Inquire Download PDF
PREV：CO-A008032-134 1.5mm Pitch Straight Pin ConnectorNEXT：CO-A002013 1.5mm Pitch Vertical SMT Header Connector with Locking Latch

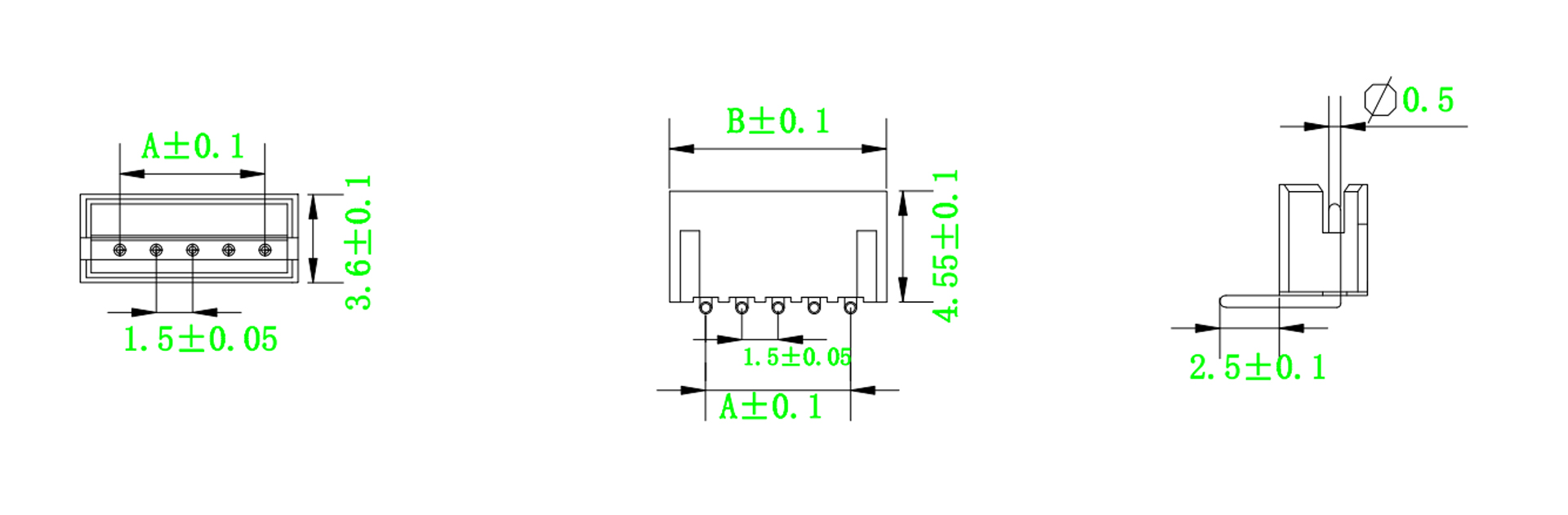

Technical Parameters Specification Drawings
Technical Specifications
Operating Temperature Range:  -25°C to +85°C
Applicable PCB Thickness:  0.8 mm to 1.6 mm
Voltage Rating:  50V AC/DC
Current Rating:  1A
Contact Resistance:  <0.01 Ω
Insulation Resistance:  >500 MΩ
Withstand Voltage:  500V (for 1 minute)
Materials
Housing:  PA66 UL94V-2(0)
Pins:  Brass
Hole Dimensions (m)
  A B
2 1.5  4.5
3 3.0  6.0
4 4.5  7.5
5 6.0  9.0
6 7.5  10.5
7 9.0  12.0
8 10.5  13.5
9 12.0  15.0
10 13.5  16.5
11 15.0  18.0
12 16.5  19.5
13 18.0  21.0
14 19.5  22.5
15 21.0  24.0
16 22.5  25.5
