TS-K009256 POGOPIN-01

Inquire Download PDF
PREV：TS-K009259 Pogo Pin Module - 04 Brass PostNEXT：No next article
Technical Parameters Drawings
Needle:  C3604
Sheath: C3604, gold-plated 3 μin / nickel base 50–100 μin
Sheath:  Gold-plated 3 μin / nickel base 50–100 μin
Technical specifications:  No pinholes, burrs, breaks, indentations or damage from the backing; no scratches on the plating; No eccentricity, symmetry ±0.02 mm; where no tolerance is specified, ±0.03 mm.
Spring Force Specifications:  Working height 3.0 mm, spring force 60 g*6 ±20%
Durability:  Over 10,000 cycles
Rated Maximum Voltage and Current:  12 V 1 A
Contact Resistance:  Less than 80 mΩ

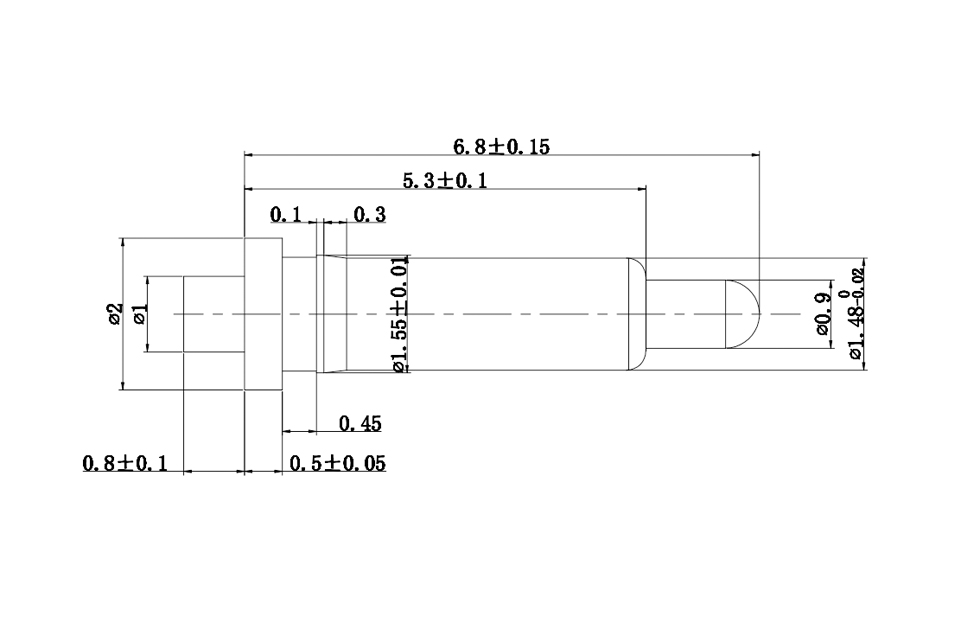

Dimensions
