TS-K009257 POGOPIN Module-02

Inquire Download PDF
PREV：No previous articleNEXT：TS-K009260 Pogo Pin Module – 5 Spring-Loaded Pins
Technical Parameters Drawings
1. Material Specifications
Plunger:  Brass
Tube:  Brass
Insulator:  PA9T
2. Plating/Finish Specifications
Plunger:  Gold 3uin over Nickel 50-100uin
Tube:  Gold 3uin over Nickel 50-100uin
3. Appearance & Structural Specifications
No burrs, flash, cracks, crush marks, or dent marks; plating free of scratches
No eccentricity; symmetry within ±0.05mm
4. Spring Force Specifications
Working Height:  3.0mm
Spring Force:  70g ±20% (56g ~ 84g) at working height
Durability:  10,000 cycles min.
5. Electrical Specifications
Rated Voltage/Current:  36V 0.4A max.
Contact Resistance:  < 80mΩ

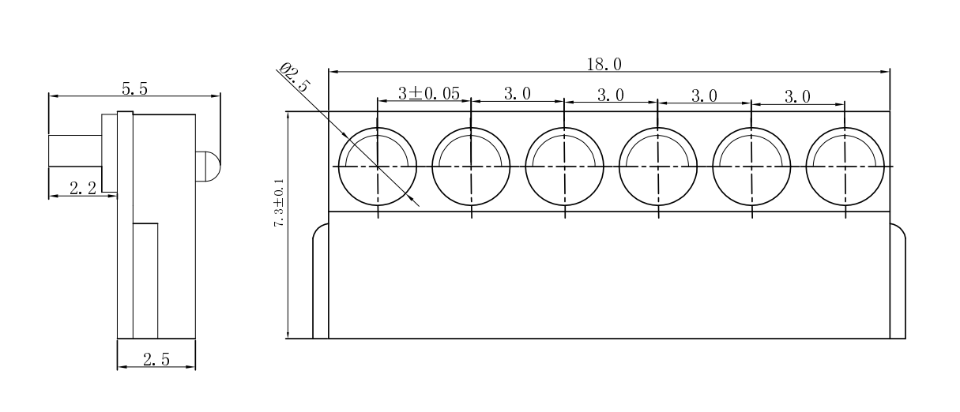

Dimensions
