Home · Products · Pin Header Connector · TS-S011133-134 2.54mm Pitch Right-Angle Pin Connector with Latch
  • TS-S011133-134 2.54mm Pitch Right-Angle Pin Connector with Latch
  • TS-S011133-134 2.54mm Pitch Right-Angle Pin Connector with Latch
Pin Header Connector

TS-S011133-134 2.54mm Pitch Right-Angle Pin Connector with Latch

Inquire Download PDF
PREV：TS-S011242-134 2.0mm Pitch Right-Angle Pin Connector with LatchNEXT：TS-S011022-134 2.54mm Pitch Straight Pin Connector with Latch
Technical Parameters Specification Drawings
Technical Specifications
Number of Poles:  2–16
Applicable Wire Gauge:  AWG #28 – #22
Applicable PCB Thickness:  1.6 mm
Temperature Range:  -25°C to 85°C
Voltage Rating:  250V AC/DC
Current Rating:  3A
Contact Resistance:  ≤ 0.02 Ω
Insulation Resistance:  ≥ 1000 MΩ
Withstand Voltage:  1000V AC / 1 min
Poles Type Dimensions   mm
A B
2  XHB-2AW 2.50  7.50
3  XHB-3AW 5.00  10.00
4  XHB-4AW 7.50  12.50
5  XHB-5AW 10.00  15.00
6  XHB-6AW 12.50  17.50
7  XHB-7AW 15.00  20.00
8  XHB-8AW 17.50  22.50
9  XHB-9AW 20.00  25.00
10  XHB-10AW 22.50  27.50
11  XHB-11AW 25.00  30.00
12  XHB-12AW 27.50  32.50

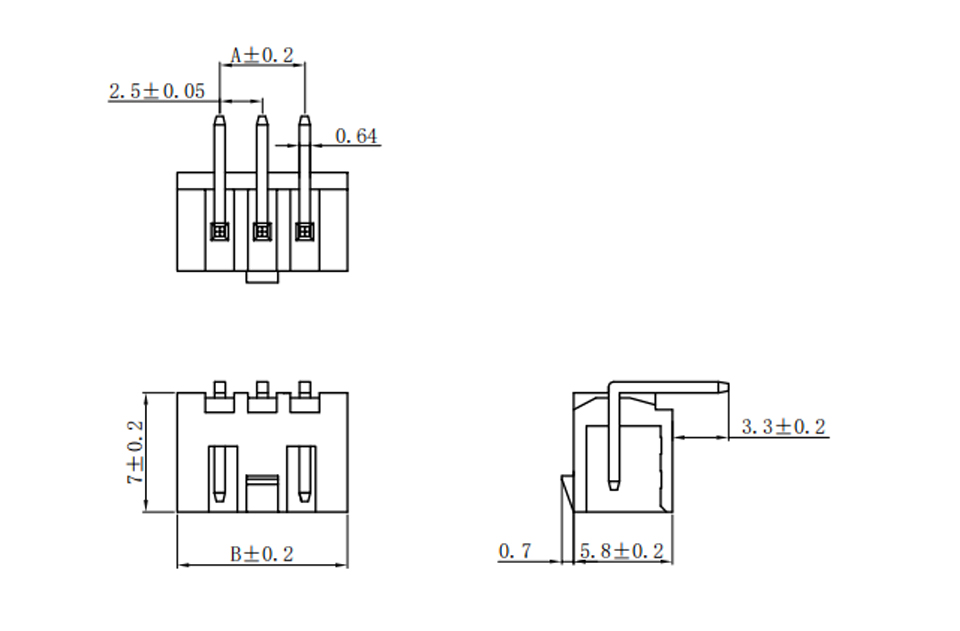

Dimensions Circuit Diagram

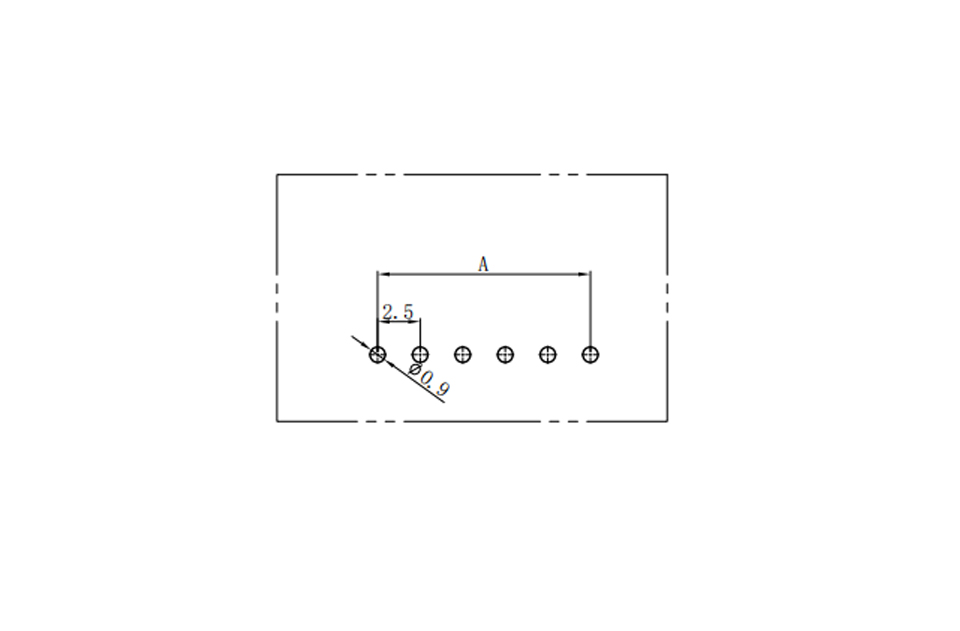

PCB Layout
