TS-S011022-134 2.54mm Pitch Straight Pin Connector with Latch

Inquire Download PDF
PREV：TS-S011133-134 2.54mm Pitch Right-Angle Pin Connector with LatchNEXT：TS-Q007001-184 2.54mm Pitch Horizontal SMT Pin Header
Technical Parameters Specification Drawings
Technical Specifications
Number of Poles:  2–16
Applicable Wire Gauge:  AWG #28 – #22
Applicable PCB Thickness:  1.6 mm
Temperature Range:  -25°C to 85°C
Voltage Rating:  250V AC/DC
Current Rating:  3A
Contact Resistance:  ≤ 0.02 Ω
Insulation Resistance:  ≥ 1000 MΩ
Withstand Voltage:  1000V AC / 1 min
Poles Type Dimensions mm
A B
2  XHB-2A 2.5  7.5
3  XHB-3A 5  10
4  XHB-4A 7.5  12.5
5  XHB-5A 10  15
6  XHB-6A   12.5  17.5
7  XHB-7A   15  20
8  XHB-8A   17.5  22.5
9  XHB-9A   20  25
10  XHB-10A   22.5  27.5
11  XHB-11A   25  30
12  XHB-12A   27.5  32.5

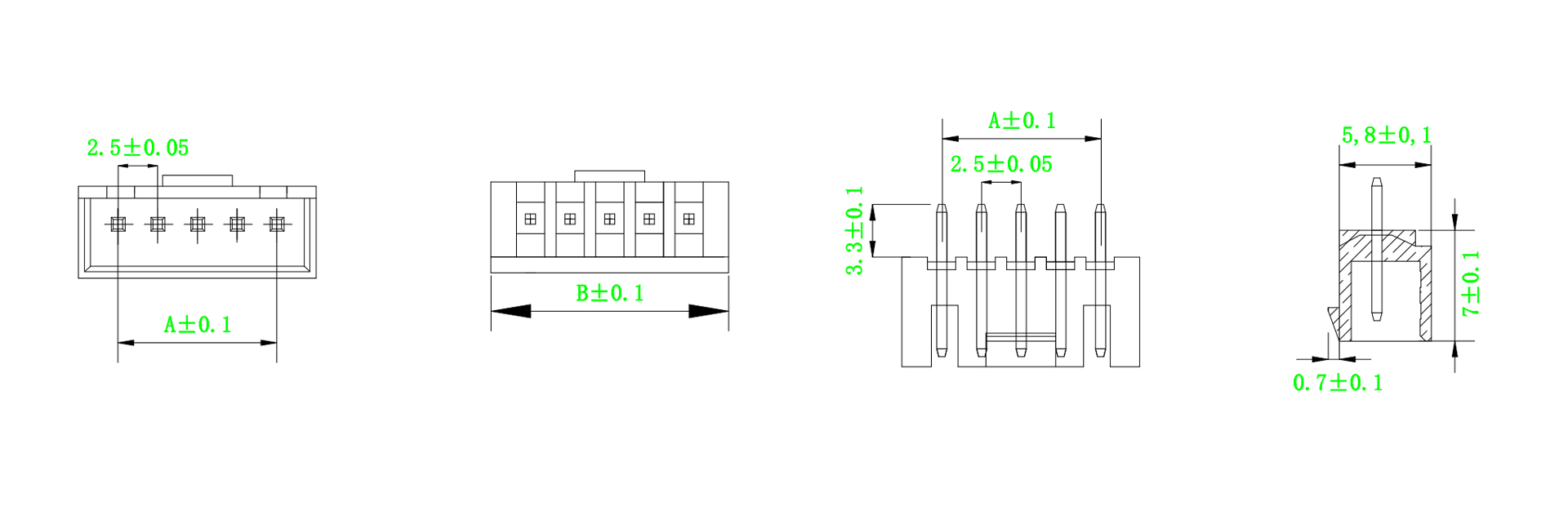

Dimensions
