TS-Q007001-184 2.54mm Pitch Horizontal SMT Pin Header

Inquire Download PDF
PREV：TS-S011022-134 2.54mm Pitch Straight Pin Connector with LatchNEXT：TS-Q002496-184 2.54mm Pitch Horizontal SMT Pin Header with Latch
Technical Parameters Specification Drawings
Technical Specifications
Pitch:  2.5 mm
Rated Current:  3A (AC/DC)
Rated Voltage:  250V (AC/DC)
Temperature Range:  -25°C to +85°C
Applicable Wire Gauge:  AWG #22 – #30
Applicable PCB Thickness:  1.6 mm
No.of
Contacts		 Dimension
 A B C
2  2.5  9.9  5.9
3  5.0  12.4  8.4
4  7.5  14.9  10.9
5  10.0  17.4  13.4
6  12.5  19.9  15.9
7  15.0  22.4  18.4
8  17.5  24.9  20.9
9  20.0  27.4  23.4
10  22.5  29.9  25.9
11  25.0  32.4  28.4
12  27.5  34.9  30.9
13  30.0  37.4  33.4
14  32.5  39.9  35.9
15  35.0  42.4  38.4
16  37.5  44.9  40.9

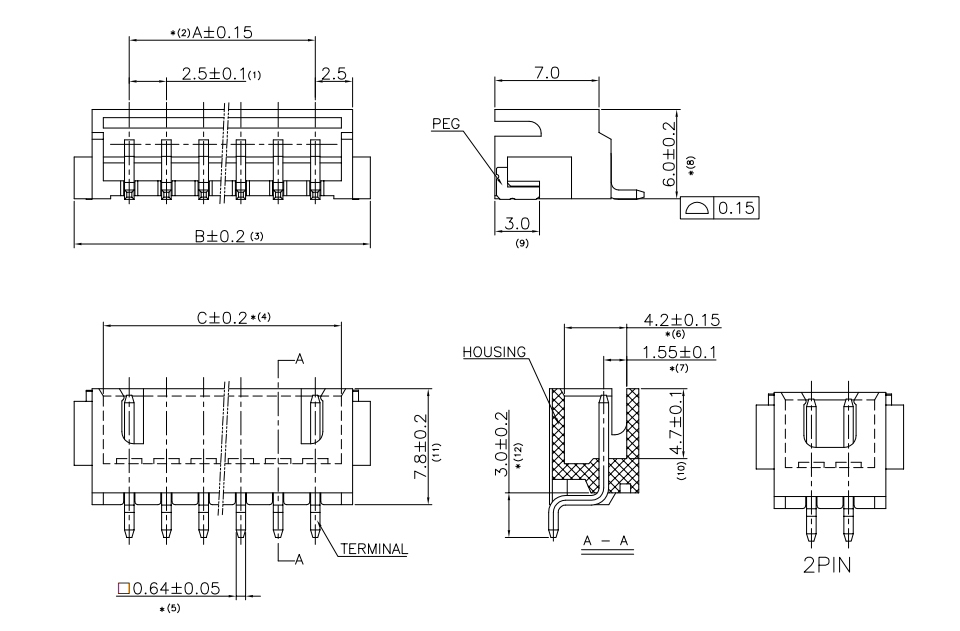

Dimensions Circuit Diagram

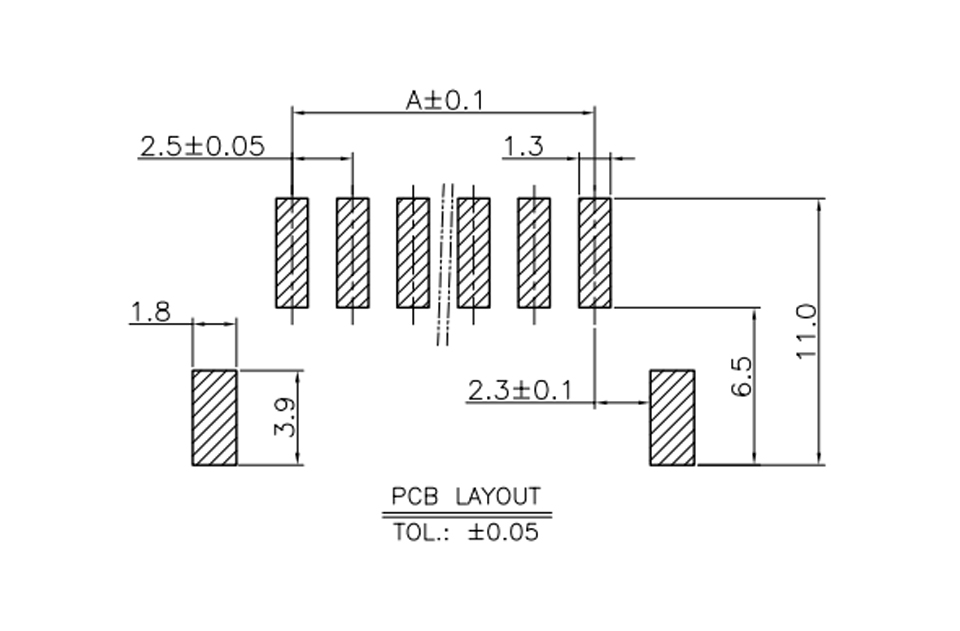

PCB Layout
