TS-S011015-134 2.0mm Pitch Straight Pin Connector with Latch

Inquire Download PDF
PREV：TS-Q002169-184 2.54mm Pitch Vertical SMT Pin HeaderNEXT：TS-Q024093-134 2.0mm Pitch Right-Angle Pin Connector
Technical Parameters Specification Drawings
Technical Specifications
Operating Temperature Range:  -25°C to +85°C
Applicable PCB Thickness:  0.8 mm to 1.6 mm
Voltage Rating:  50V AC/DC
Current Rating:  1A
Contact Resistance:  <0.01 Ω
Insulation Resistance:  >500 MΩ
Withstand Voltage:  500V / 1 min
Materials
Housing:  PA66 UL94V-2(0)
Pins:  Brass
Poles Type Dimensions mm
A B
2  HY-2A 2   6
3  HY-3A 4   8
4  HY-4A 6   10
5  HY-5A 8   12
6  HY-6A 10   14
7  HY-7A 12   16
8  HY-8A 14   18
9  HY-9A 16   20
10  HY-10A 18   22
11  HY-11A 20   24
12  HY-12A 22   26
13  HY-13A 24   28
14  HY-14A 26   30
15  HY-15A 28   32
16  HY-16A 30   34

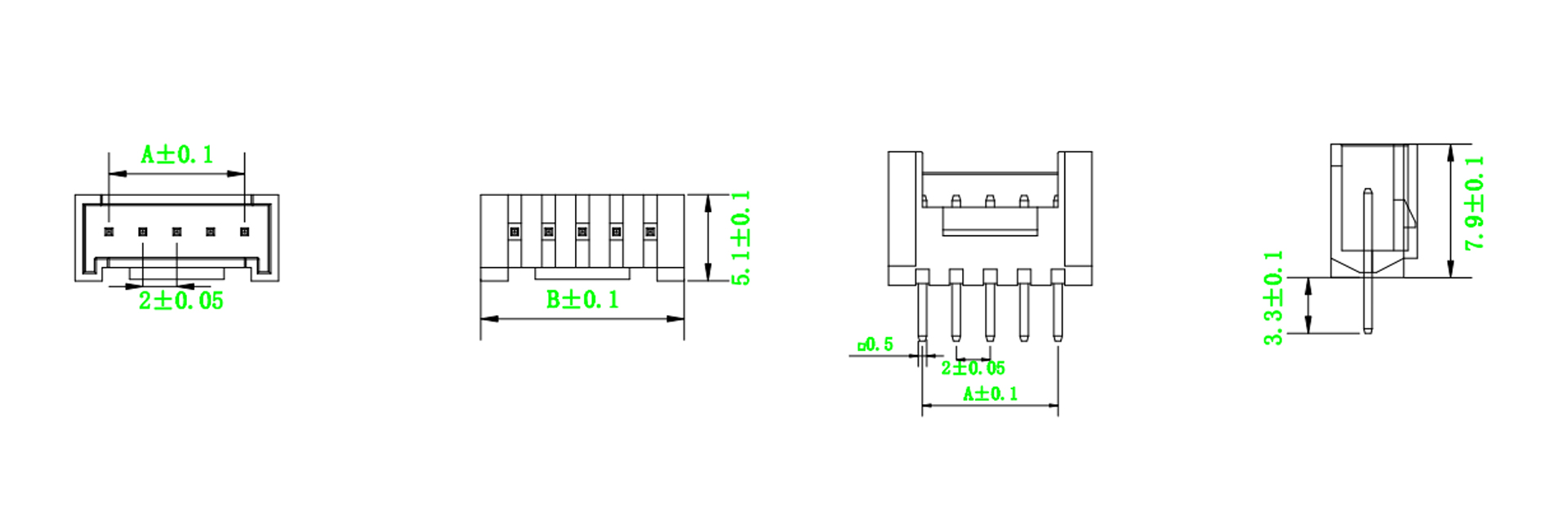

Dimensions
