TS-Q002169-184 2.54mm Pitch Vertical SMT Pin Header

Inquire Download PDF
PREV：TS-Q002496-184 2.54mm Pitch Horizontal SMT Pin Header with LatchNEXT：TS-S011015-134 2.0mm Pitch Straight Pin Connector with Latch
Technical Parameters Specification Drawings
Technical Specifications
Pitch:  2.5 mm
Rated Current:  3A (AC/DC)
Rated Voltage:  250V (AC/DC)
Temperature Range:  -25°C to +85°C
Applicable Wire Gauge:  AWG #22 – #30
Applicable PCB Thickness:  1.6 mm
 CONNECTOR SURFACE CLEAN, NO RUST, OXIDE, CRACKS, MISSING CORES, BURRS, AND OTHER MACHINERY DAMAGE.
HOUSING:  LCP
COLOR:  NATURAL
CONTACTS:  BRASS
PEG:  BRASS
PLATING: TIN OVER NICKEL.

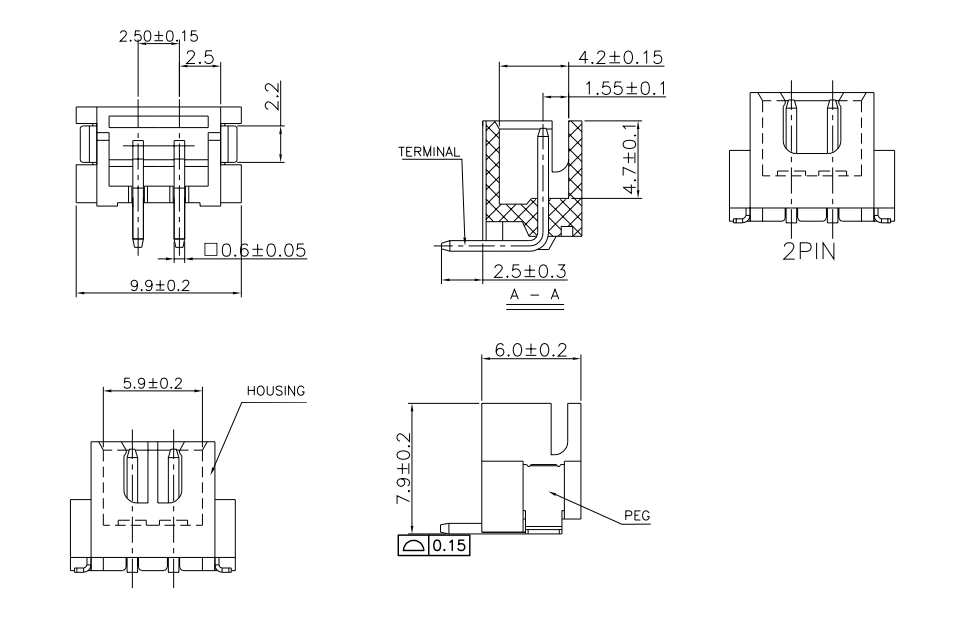

Dimensions Circuit Diagram

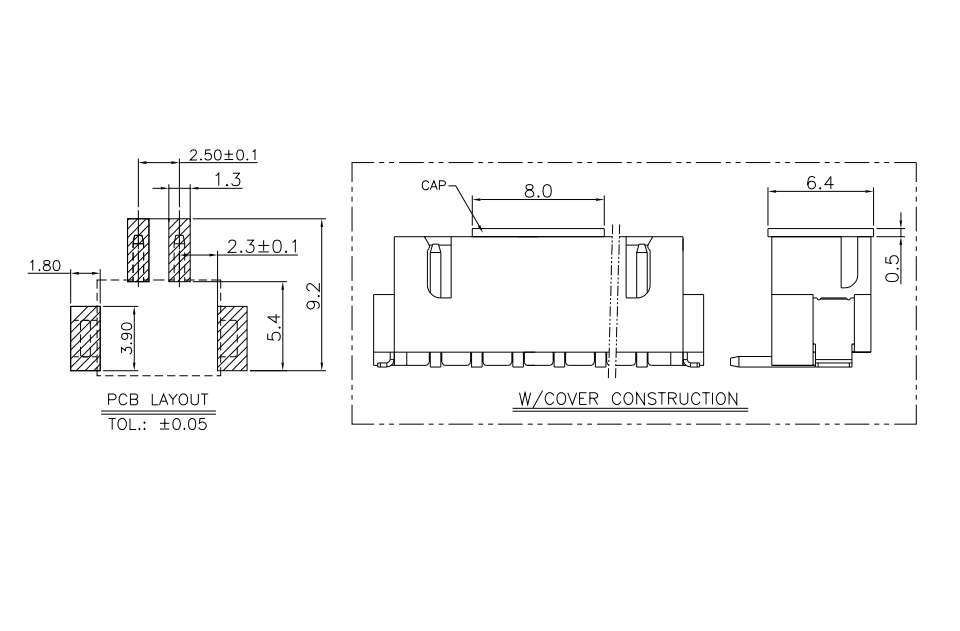

PCB Layout
