TS-Q024093-134 2.0mm Pitch Right-Angle Pin Connector

Inquire Download PDF
PREV：TS-S011015-134 2.0mm Pitch Straight Pin Connector with LatchNEXT：TS-Q002210-134 2.0mm Pitch Straight Pin Connector

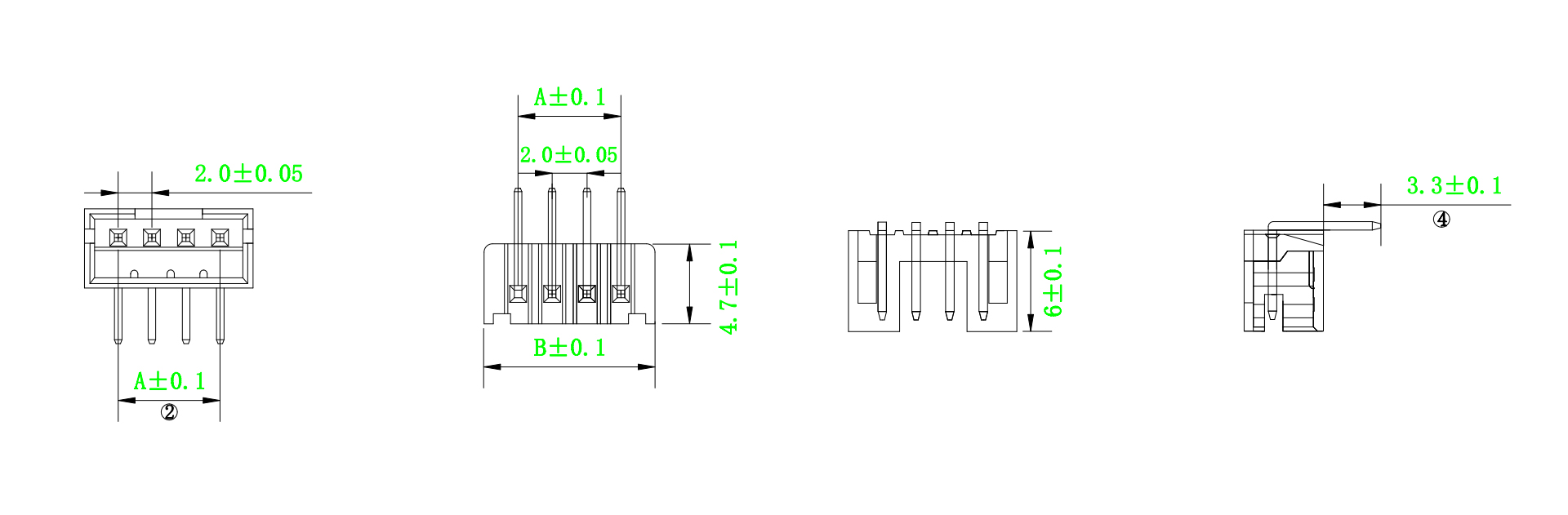

Technical Parameters Specification Drawings
Number of poles:  2–20
Applicable wire gauge:  AWG 28–22
Applicable PCB thickness:  1.6 mm
Temperature range:  –25 °C to 85 °C
Voltage rating:  250 V AC/DC Current Rating: 3A
Contact Resistance:  ≤0.02Ω
Insulation Resistance:  ≥1000 MΩ
Withstand Voltage:  1000 V AC/1 min
Wafer:  Nylon UL94 V-2(0)
Poles Type Dimensions mm
A B
2  PH-2A 2  6
3  PH-3A 4  8
4  PH-4A 6  10
5  PH-5A 8  12
6  PH-6A 10  14
7  PH-7A 12  16
8  PH-8A 14  18
9  PH-9A 16  20
10  PH-10A 18  22
11  PH-11A 20  24
12  PH-12A 22  26
13  PH-13A 24  28
14  PH-14A 26  30
15  PH-15A 28  32
16  PH-16A 30  34
Dimensions
