TS-Q002210-134 2.0mm Pitch Straight Pin Connector

Inquire Download PDF
PREV：TS-Q024093-134 2.0mm Pitch Right-Angle Pin ConnectorNEXT：TS-Q002154-184 2.0mm Pitch Right-Angle SMT Pin Header with Latch
Technical Parameters Specification Drawings
Technical Specifications
Number of Poles:  2–16
Applicable Wire Gauge:  AWG #28–#22
Applicable PCB Thickness:  1.6 mm
Temperature Range:  -25°C to +85°C
Voltage Rating:  250V AC/DC
Current Rating:  2A
Contact Resistance:  ≤ 0.02 Ω
Insulation Resistance:  ≥ 1000 MΩ
Withstand Voltage:  1000V AC / 1 min
Poles Type Dimensions mm
A B
2  PH-2A 2  6
3  PH-3A 4  8
4  PH-4A 6  10
5  PH-5A 8  12
6  PH-6A 10  14
7  PH-7A 12  16
8  PH-8A 14  18
9  PH-9A 16  20
10  PH-10A 18  22
11  PH-11A 20  24
12  PH-12A 22  26
13  PH-13A 24  28
14  PH-14A 26  30
15  PH-15A 28  32
16  PH-16A 30  34

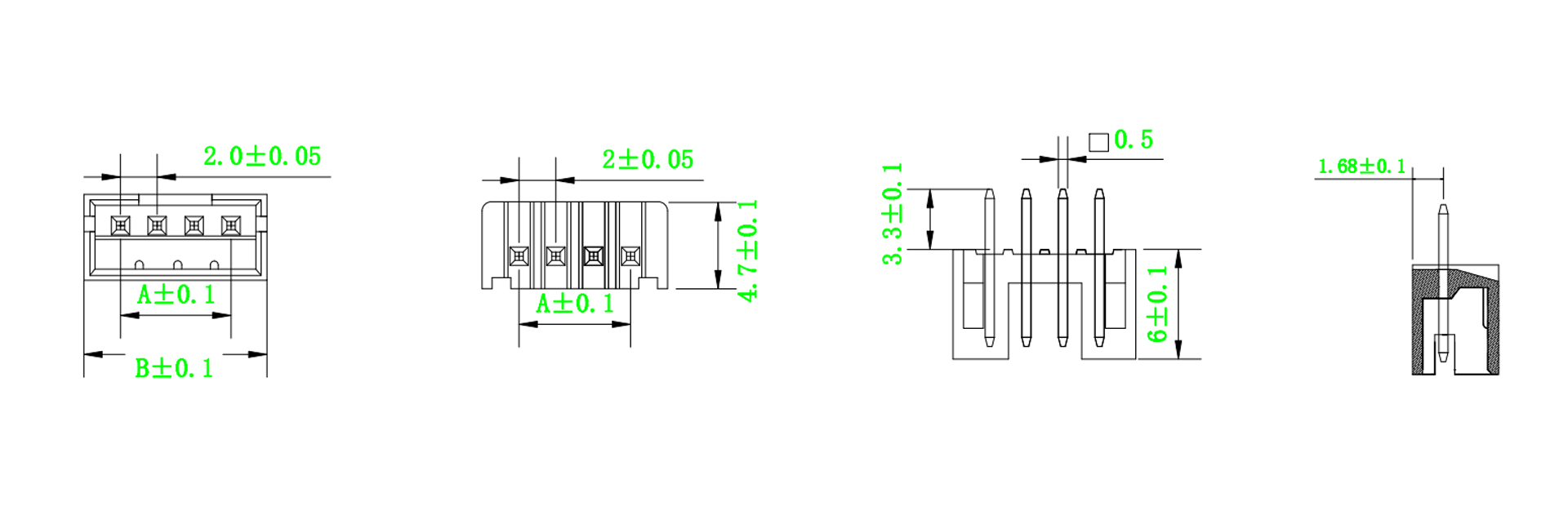

Dimensions
