TS-Q002154-184 2.0mm Pitch Right-Angle SMT Pin Header with Latch

1. The product surface must be clean and free from rust, oxidation, cracks, core defects, burrs,
and other mechanical damage;
2. Plastic material: high-temperature-resistant resin; Colour: natural;
3. Pin material: brass, tin-plated;
4. Solder tab material: brass, tin-plated

Inquire Download PDF
PREV：TS-Q002210-134 2.0mm Pitch Straight Pin ConnectorNEXT：TS-Q002147-184 2.0mm Pitch Vertical SMT Pin Header with Latch
Technical Parameters Specification Drawings
Hole DIMA DIMB DIMC
2 2 8 4.8
3 4 10 6.8
4 6 12 8.8
5 8 14 10.8
6 10 16 12.8
7 12 18 14.8
8 14 20 16.8
9 16 22 18.8
10 18 24 20.8
11 20 26 22.8
12 22 28 24.8
13 24 30 26.8
14 26 32 28.8
15 28 34 30.8
16 30 36 32.8
Number of cores  A B  C
2  2.0  8.0  4.8
3  4.0  10.0  6.8
4  6.0  12.0  8.8
5  8.0  14.0  10.8
6  10.0  16.0  12.8
7  12.0  18.0  14.8
8  14.0  20.0  16.8
9  16.0  22.0  18.8
10  18.0  24.0  20.8
11  20.0  26.0  22.8
12  22.0  28.0  24.8
13  24.0  30.0  26.8
14  26.0  32.0  28.8
15  28.0  34.0  30.8
16  30.0  36.0  32.8

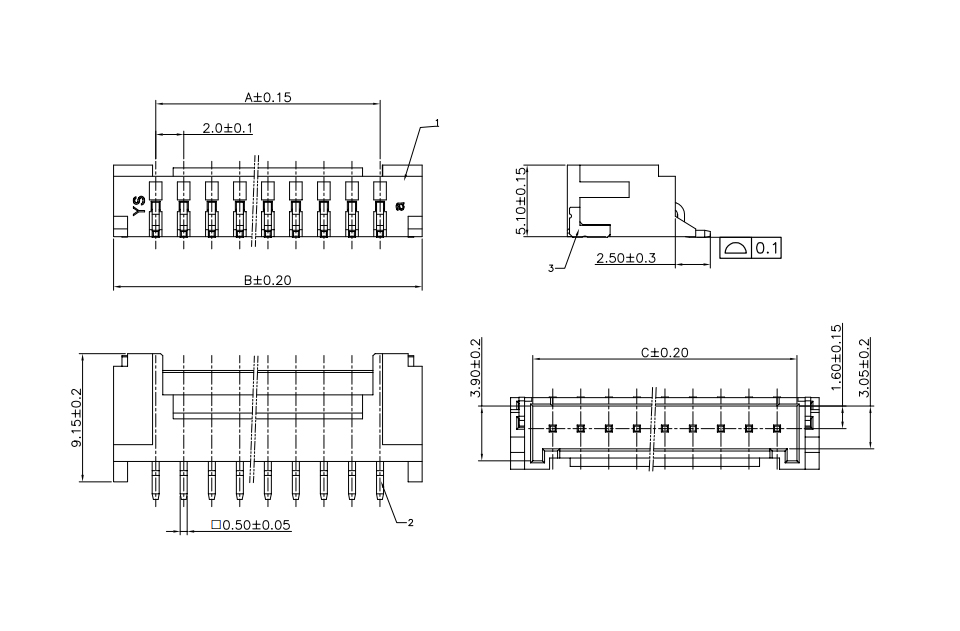

Dimensions Circuit Diagram

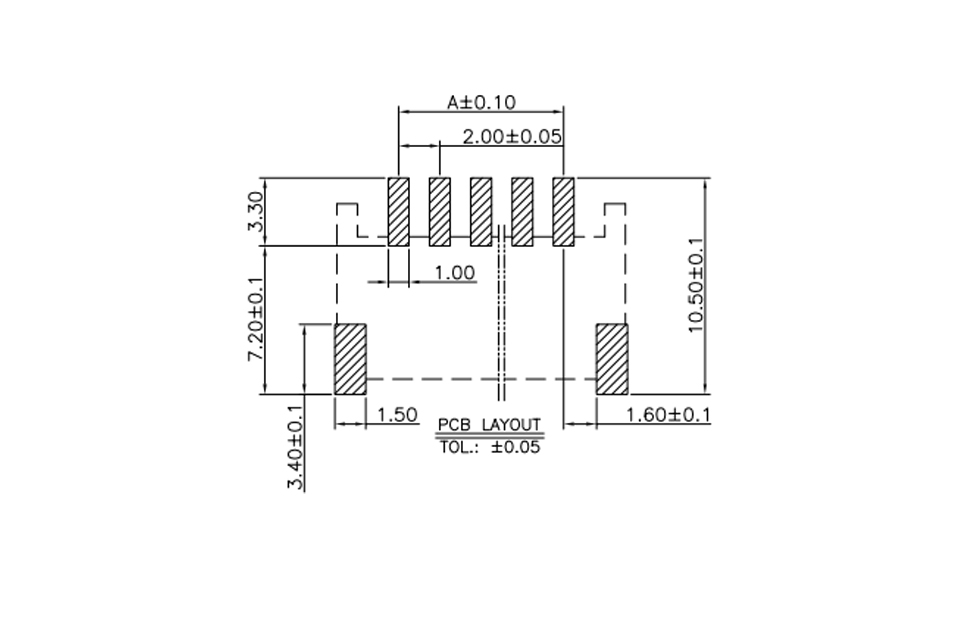

PCB Layout
