TS-Q002147-184 2.0mm Pitch Vertical SMT Pin Header with Latch

1.The product surface must be clean and free from rust, oxidation, cracks, core defects, burrs, and other mechanical damage;
2. Plastic material: high-temperature-resistant resin; Colour: natural;
3. Pin material: brass, tin-plated;
4. Solder tab material: brass, tin-plated.

Inquire Download PDF
PREV：TS-Q002154-184 2.0mm Pitch Right-Angle SMT Pin Header with LatchNEXT：TS-Q002133A-184 2.0mm Pitch Right-Angle SMT Pin Header

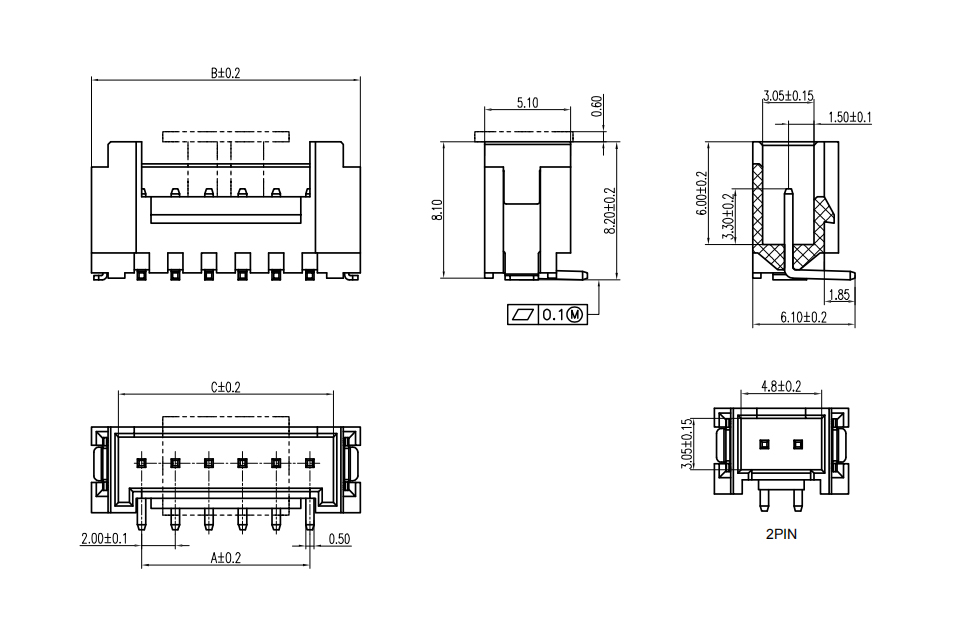

Technical Parameters Specification Drawings
Hole DIMA DIMB DIMC
2 2 8 4.8
3 4 10 6.8
4 6 12 8.8
5 8 14 10.8
6 10 16 12.8
7 12 18 14.8
8 14 20 16.8
9 16 22 18.8
10 18 24 20.8
11 20 26 22.8
12 22 28 24.8
13 24 30 26.8
14 26 32 28.8
15 28 34 30.8
16 30 36 32.8
Pitch:  2.0mm
Rated Current:  2A (AC/DC)
Rated Voltage:  250V (AC/DC)
Temperature Range:  -25°C to +85°C
Applicable Wires:  AWG #24 – #30
Applicable PCB Thickness:  0.8mm – 1.6mm
Dimensions Circuit Diagram

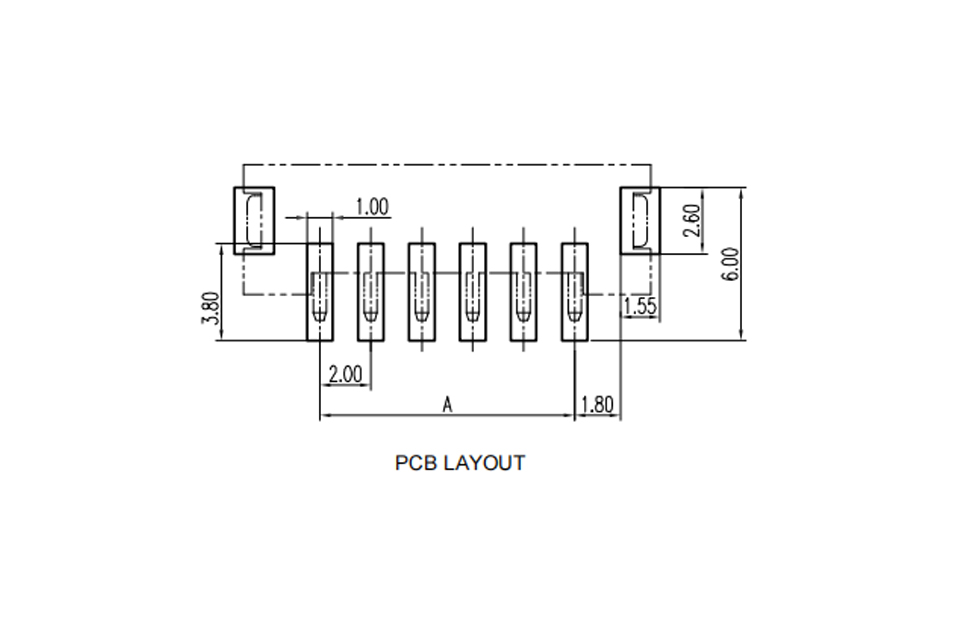

PCB Layout
