TS-Q002498-282 VH 3.96mm Pitch Horizontal SMT Header Connector

Inquire Download PDF
PREV：TS-S011152-134 VH 3.96mm Pitch Straight Pin ConnectorNEXT：TS-Q002497-282 VH 3.96mm Pitch Vertical SMT Header Connector
Technical Parameters Specification Drawings
Technical Specifications
Current Rating:  7A AC, DC
Voltage Rating:  250V AC, DC
TemperatuerRange:  -25℃~+85℃
Contact Resistance:  20mΩ Max
Insulation Resistance:  1000M Ω Min
Withstanding Voltang:  1500V AC/minute
Material: Wafer PA9T, UL94V-0
PIN Brass Tin-plated
Solder tad Brass Tin-plated
PIN Dimensions (mm)
A B C
-02AWB 3.96  8.68  11.88
-03AWB 7.92  12.64  15.84
-04AWB 11.88  16.60  19.80
-05AWB 15.84  20.56  23.76
-06AWB 19.80  24.52  27.72
-07AWB 23.76  28.48  31.68
-08AWB 27.72  32.44  35.64
-09AWB 31.68  36.40  39.60
-10AWB 35.64  40.36  43.56
-11AWB 39.60  44.32  47.52
-12AWB 43.56  48.28  51.48

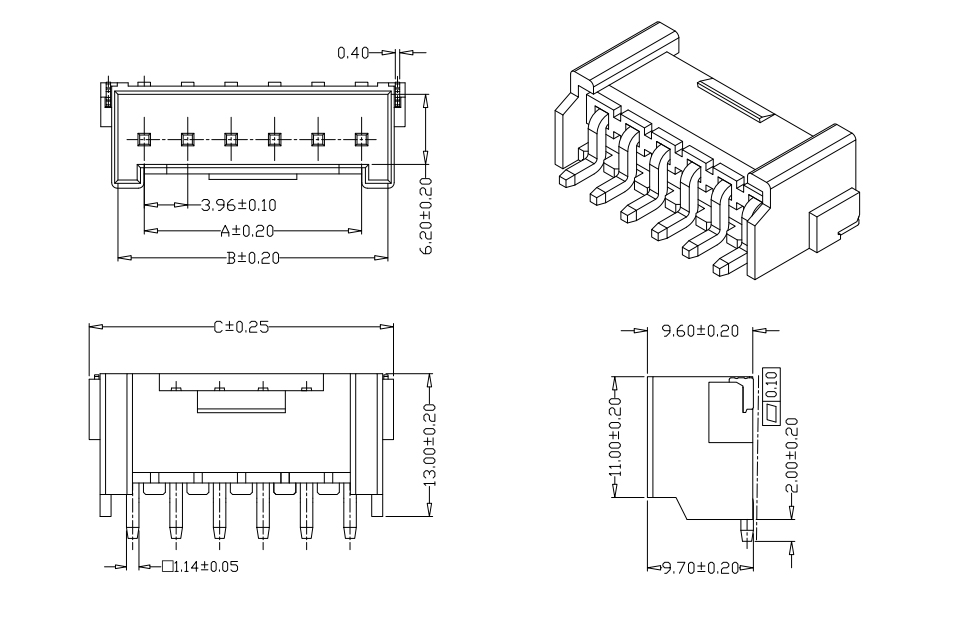

Dimensions Circuit Diagram

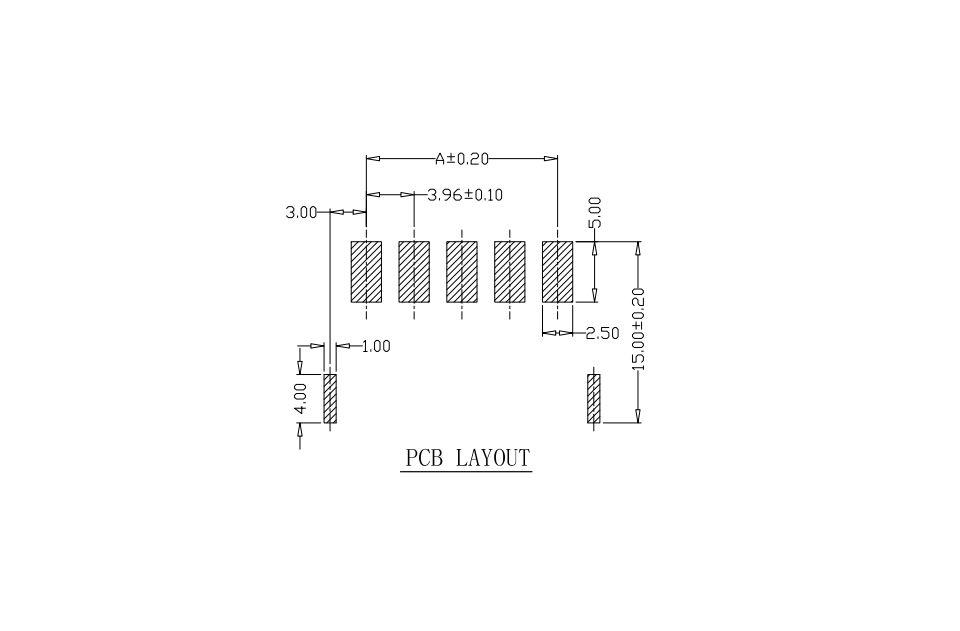

PCB Layout
