TS-S011152-134 VH 3.96mm Pitch Straight Pin Connector

Inquire Download PDF
PREV：TS-S011184-134 VH 3.96mm Pitch Right-Angle Pin ConnectorNEXT：TS-Q002498-282 VH 3.96mm Pitch Horizontal SMT Header Connector
Technical Parameters Specification Drawings
Technical Specifications
Number of Poles:  2–12
Applicable Wire Gauge:  AWG #22 – #18
Applicable PCB Thickness:  1.6 mm
Temperature Range:  -25°C to 85°C
Voltage Rating:  250 V AC/DC
Current Rating:  7.5 A
Contact Resistance:  ≤ 0.015 Ω
Insulation Resistance:  ≥ 1000 MΩ
Withstand Voltage:  1500 V AC / 1 min
Poles Type Dimensions mm
A B
2  VH-2A 3.96  7.92
3  VH-3A 7.92  11.88
4  VH-4A 11.88  15.84
5  VH-5A 15.84  19.8
6  VH-6A 19.8  23.76
7  VH-7A 23.76  27.72
8  VH-8A 27.72  31.68
9  VH-9A 31.68  35.64
10  VH-10A 35.64  39.6
11  VH-11A 39.6  43.56
12  VH-12A 43.56  47.52
Materials：    PA66

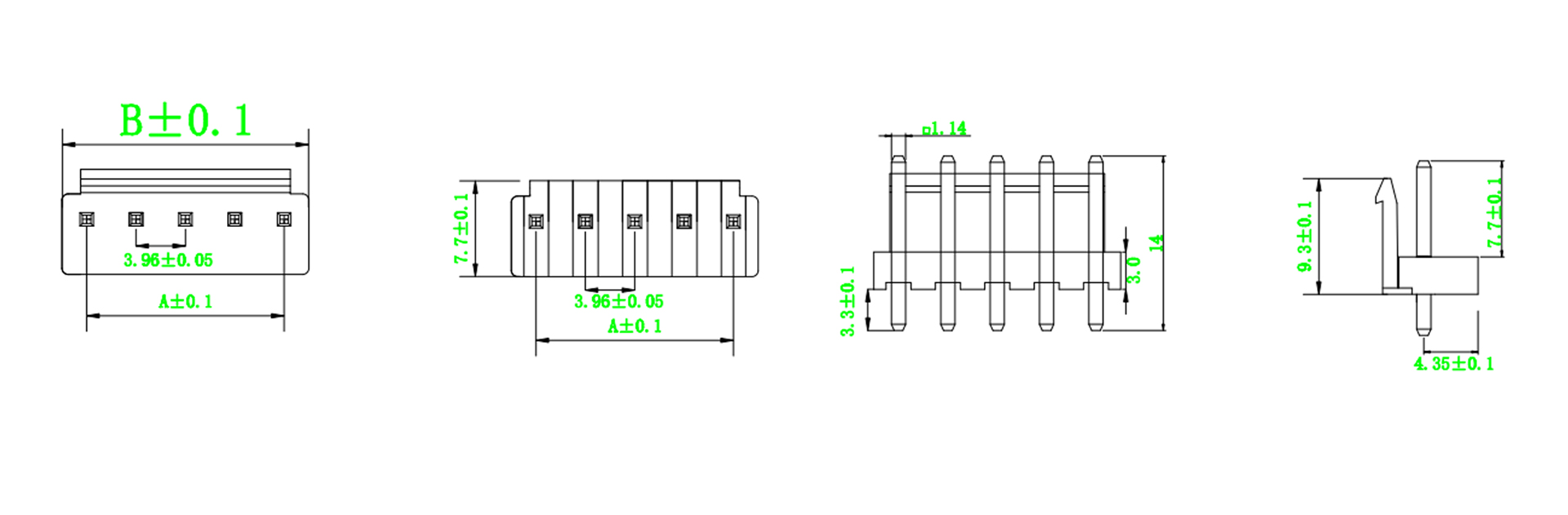

Dimensions
