CO-A007007A-134 3.96mm Pitch Straight Pin Connector

Inquire Download PDF
PREV：TS-Q003021 4.0mm Pitch Horizontal SMT Header ConnectorNEXT：TS-S011196-134 3.96mm Pitch Flat Right-Angle Pin Connector

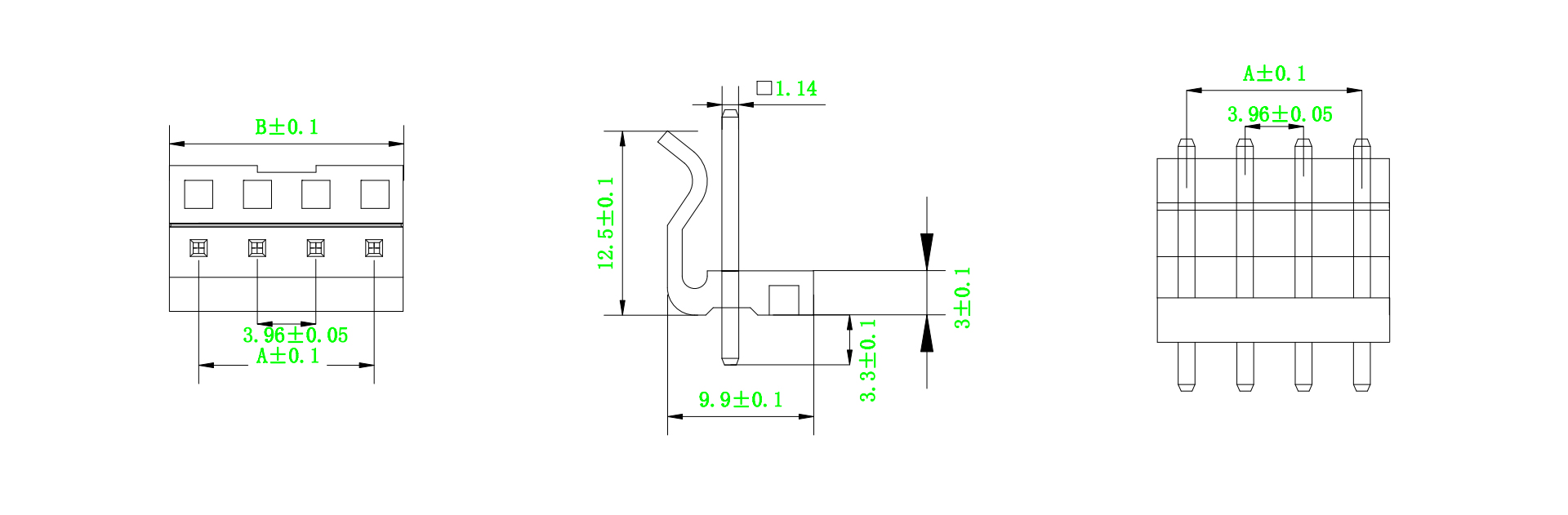

Technical Parameters Specification Drawings
Technical Specifications
Number of Poles:  2–12
Applicable Wire Gauge:  AWG #22 – #18
Applicable PCB Thickness:  1.6 mm
Temperature Range:  -25°C to 85°C
Voltage Rating:  250 V AC/DC
Current Rating:  7.5 A
Contact Resistance:  ≤ 0.015 Ω
Insulation Resistance:  ≥ 1000 MΩ
Withstand Voltage:  1500 V AC / 1 min
Poles Type Dimensions mm
A B
2  3.96-2A 3.96  7.92
3  3.96-3A 7.92  11.88
4  3.96-4A 11.88  15.84
5  3.96-5A 15.84  19.8
6  3.96-6A 19.8  23.76
7  3.96-7A 3.76  27.72
8  3.96-8A 27.72  31.68
9  3.96-9A 31.68  35.64
10  3.96-10A 35.5.64 39.6
11  3.96-11A 39.6  43.56
12  3.96-12A 43.56  47.52
