TS-S011196-134 3.96mm Pitch Flat Right-Angle Pin Connector

Inquire Download PDF
PREV：CO-A007007A-134 3.96mm Pitch Straight Pin ConnectorNEXT：TS-S011184-134 VH 3.96mm Pitch Right-Angle Pin Connector
Technical Parameters Specification Drawings
Technical Specifications
Number of Poles:  2–12
Applicable Wire Gauge:  AWG #22 – #18
Applicable PCB Thickness:  1.6 mm
Temperature Range:  -25°C to 85°C
Voltage Rating:  250 V AC/DC
Current Rating:  7.5 A
Contact Resistance:  ≤ 0.015 Ω
Insulation Resistance:  ≥ 1000 MΩ
Withstand Voltage:  1500 V AC / 1 min
Poles PType Dimensions mm
A B
2  3.96-2A 3.96  7.92
3  3.96-3A 7.92  11.88
4  3.96-4A 11.88  15.84
5  3.96-5A 15.84  19.8
6  3.96-6A 19.8  23.76
7  3.96-7A 23.76  27.72
8  3.96-8A 27.72  31.68
9  3.96-9A 31.68  35.64
10    3.96-10A    355.64  39.6
11    3.96-11A   39.6  43.56
12    3.96-12A   43.56  47.52

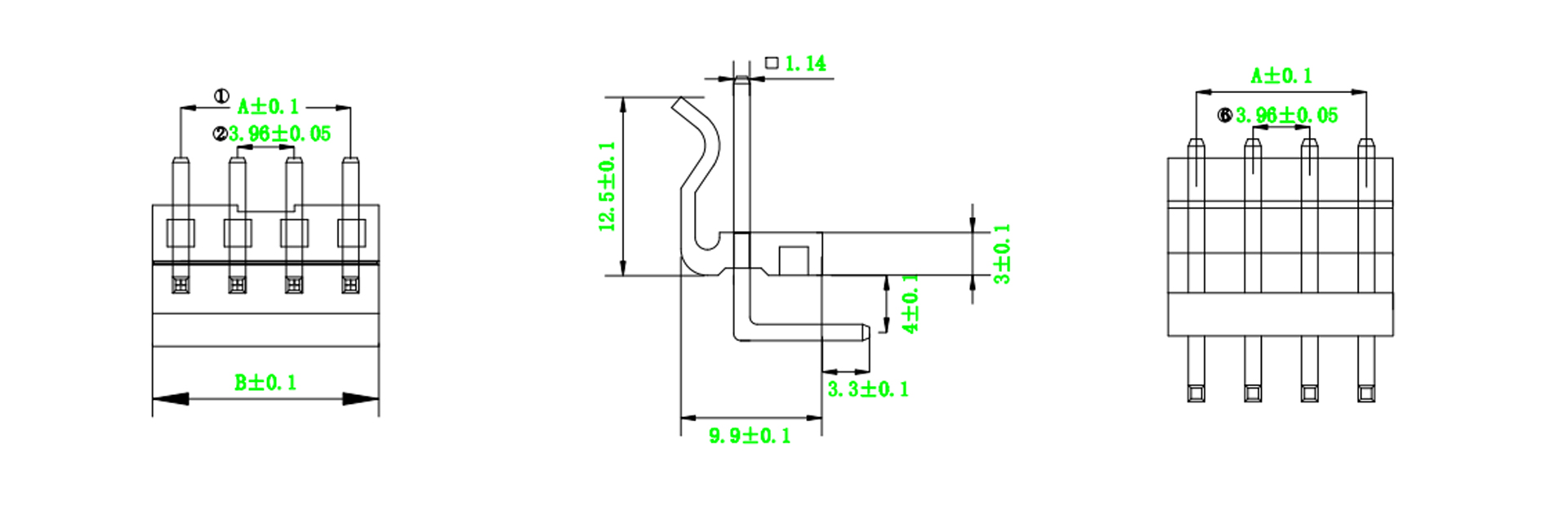

Dimensions
