TS-Q003021 4.0mm Pitch Horizontal SMT Header Connector

Inquire Download PDF
PREV：TS-Q002321-134 4.2mm Pitch Right-Angle Pin ConnectorNEXT：CO-A007007A-134 3.96mm Pitch Straight Pin Connector
Technical Parameters Drawings
Technical Specifications
Number of Poles:  01 to 03P
Contact Resistance:  ≤20mΩ
Insulation Resistance:  ≥800MΩ
Rated Voltage:  250V AC/DC
Rated Current:  9.0A AC/DC
Withstand Voltage:  800V AC (for 1 minute)
Temperature Range:  -25℃ to +105℃

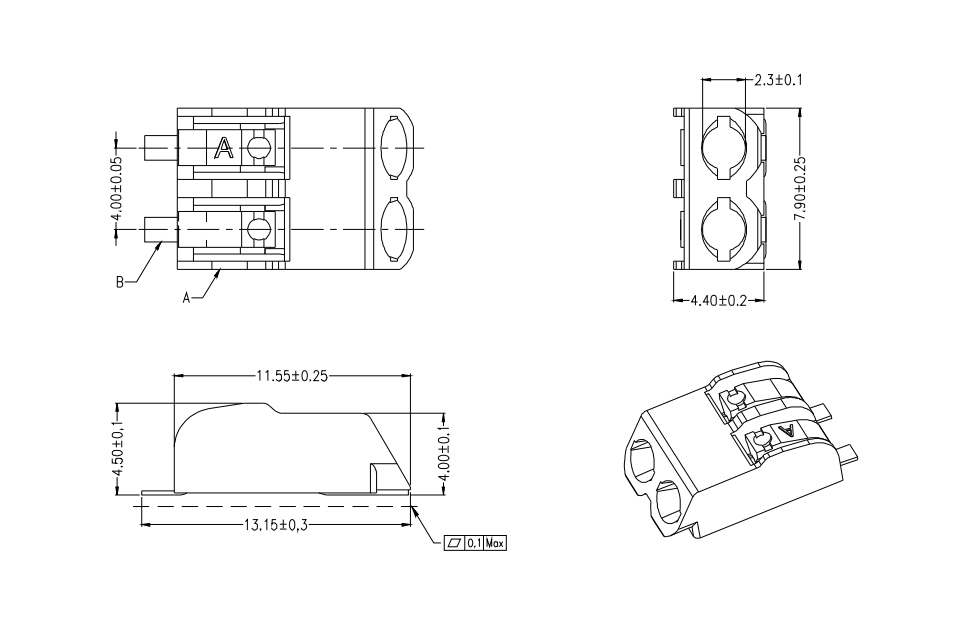

Dimensions Circuit Diagram

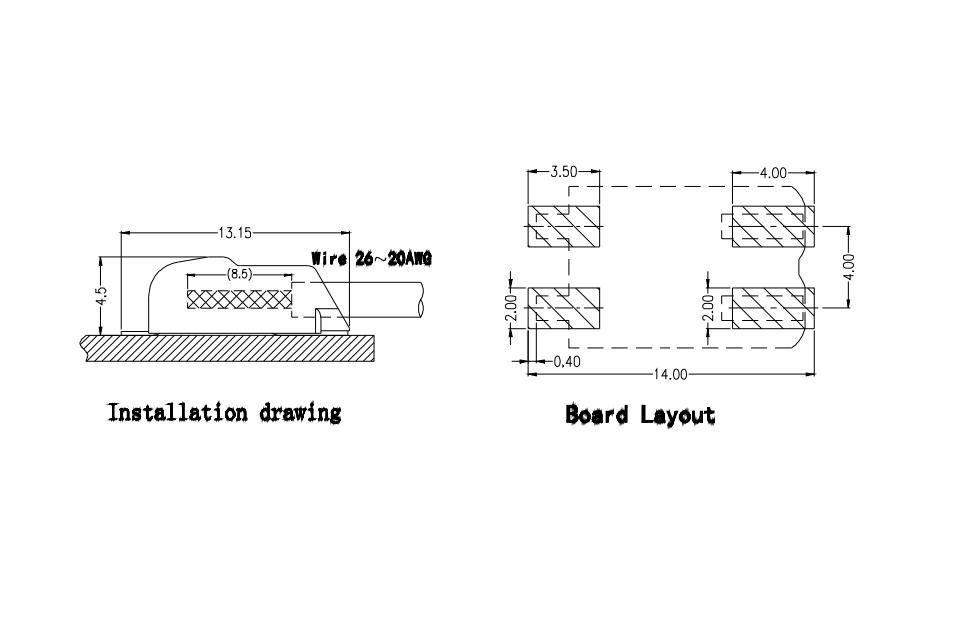

PCB Layout
