TS-Q024055 FPC 0.5mm Pitch Horizontal Back-Lock Cable Connector

Inquire Download PDF
PREV：TS-K008001A 0.5mm Flip-Lock (Rear Press Type) 16-Pin FPC/FFC ConnectorNEXT：TS-Q003046 FPC 1.0mm Pitch Horizontal Back-Lock Cable Connector
Technical Parameters Drawings
The surface of the plastic parts should be smooth，no rough edges，no obvious shrinkage，defects，cracks and other phenomena.）
Temperature range： -25° C~+85°C
Rated voltage： 50V，AC/DC
Contact resistance： <0.03Ω.
Insulation resistance： >500MΩ

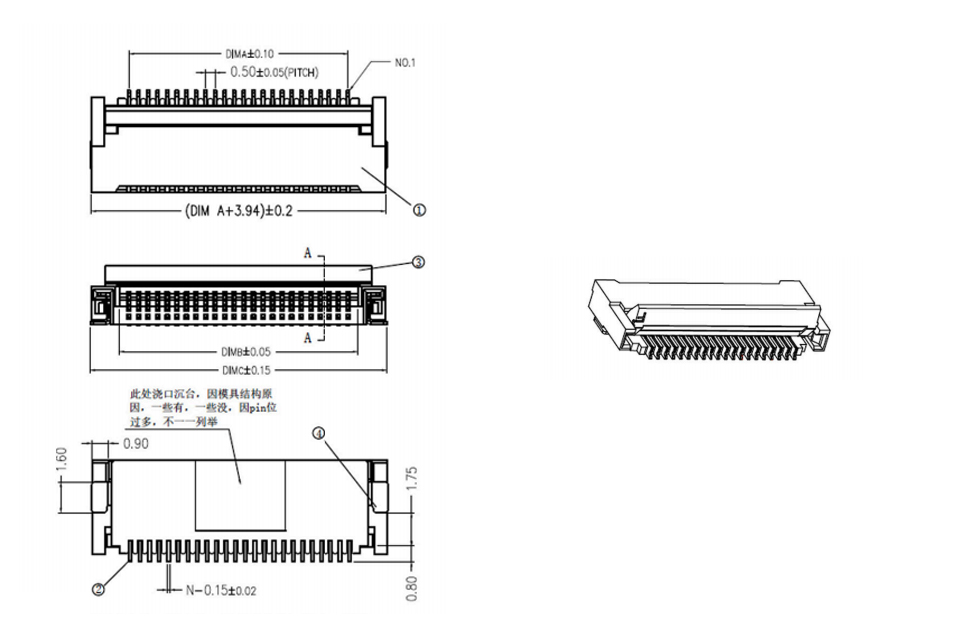

Dimensions Circuit Diagram

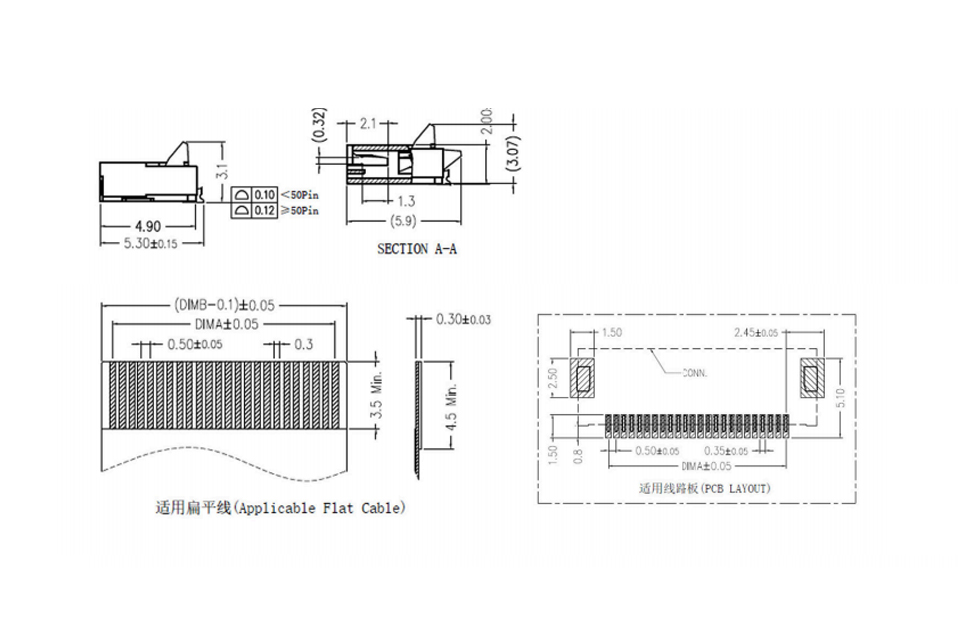

PCB Layout
