Home · Products · FFC/FPC Cable Connector · TS-K008001A 0.5mm Flip-Lock (Rear Press Type) 16-Pin FPC/FFC Connector
  • TS-K008001A 0.5mm Flip-Lock (Rear Press Type) 16-Pin FPC/FFC Connector
  • TS-K008001A 0.5mm Flip-Lock (Rear Press Type) 16-Pin FPC/FFC Connector
  • TS-K008001A 0.5mm Flip-Lock (Rear Press Type) 16-Pin FPC/FFC Connector
  • TS-K008001A 0.5mm Flip-Lock (Rear Press Type) 16-Pin FPC/FFC Connector
FFC/FPC Cable Connector

TS-K008001A 0.5mm Flip-Lock (Rear Press Type) 16-Pin FPC/FFC Connector

Inquire Download PDF
PREV：TS-Q002108 0.5mm Pitch, Flip-Lock Horizontal Type, Bottom Contact (Height 2.0mm), 24-Pin FPC/FFC ConnectorNEXT：TS-Q024055 FPC 0.5mm Pitch Horizontal Back-Lock Cable Connector

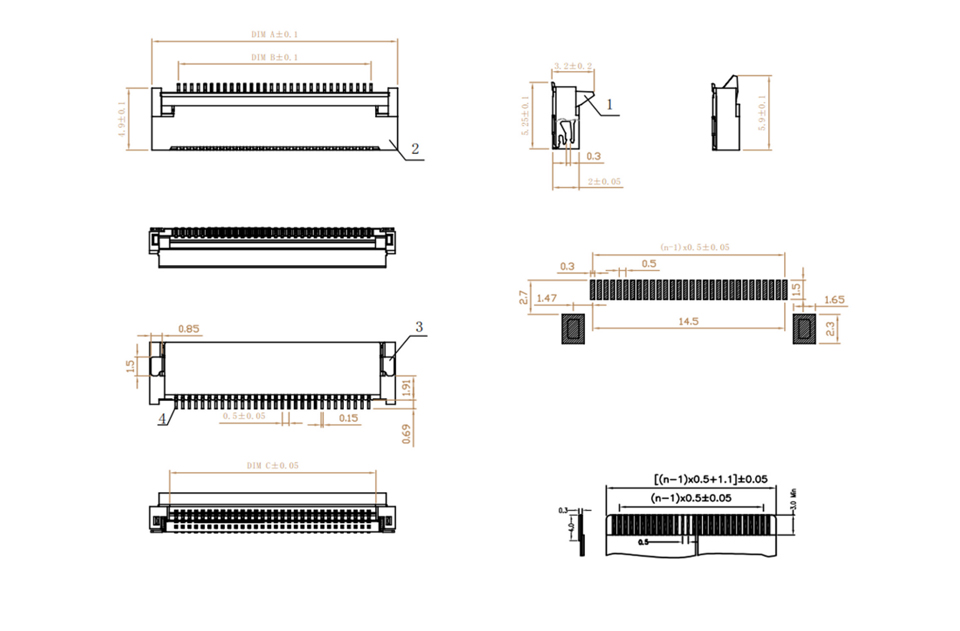

Technical Parameters Drawings
Electrical Performance 2.1. Rated current: 1.0 A
2.2. Rated voltage: 125 V
2.3. Contact resistance: 20 mΩ max
2.4. Insulation resistance: 100 MΩ min
2.5. Withstand voltage: 500 V AC
Circuit Diagram
PCB Layout
