TS-Q003046 FPC 1.0mm Pitch Horizontal Back-Lock Cable Connector

Inquire Download PDF
PREV：TS-Q024055 FPC 0.5mm Pitch Horizontal Back-Lock Cable ConnectorNEXT：TS-L003120 FPC 0.5mm Pitch Horizontal Pull-Lock (Gen 3) Bottom-Contact Cable Connector
Technical Parameters Drawings
The surface of the moulded part should be smooth, free from burrs, and show no signs of significant shrinkage, defects or cracks.
Temperature range: -25°C to 85°C.
Rated voltage: 50 V, AC/DC
Contact resistance: <0.03 Ω.
Insulation resistance: >500 MΩ

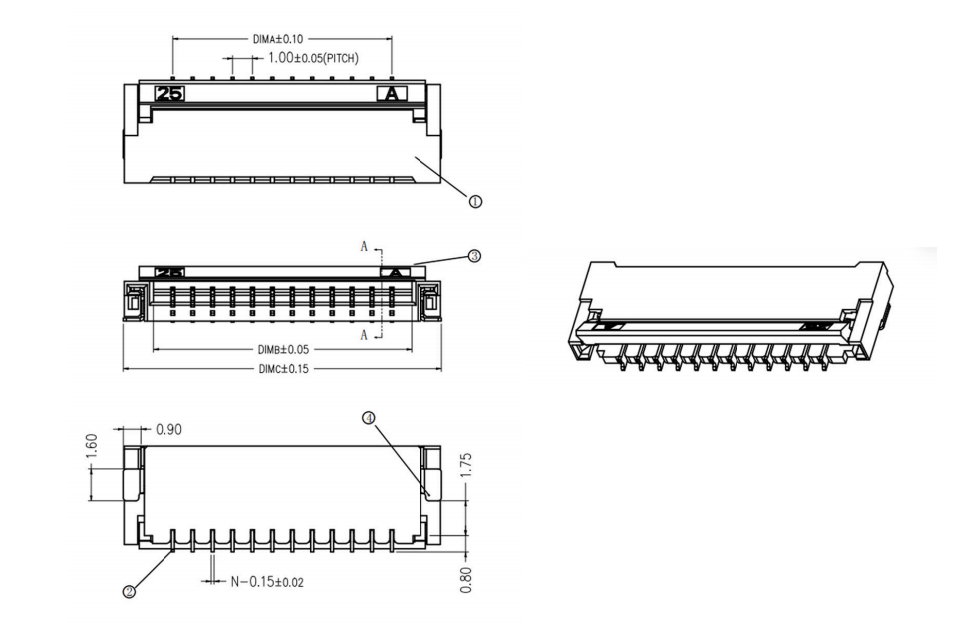

Dimensions Circuit Diagram

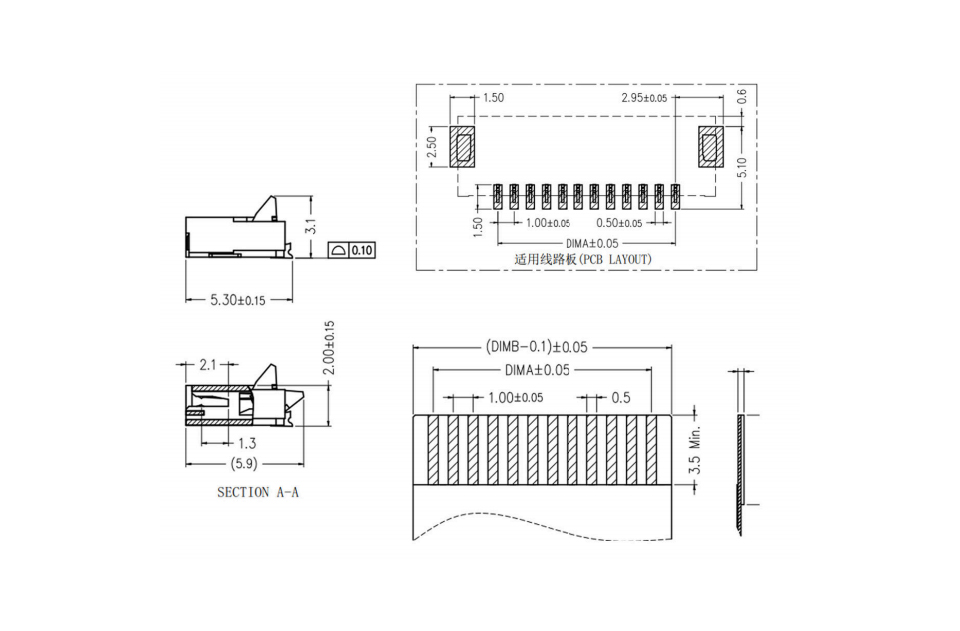

PCB Layout
