Home · Products · FFC/FPC Cable Connector · TS-L003120 FPC 0.5mm Pitch Horizontal Pull-Lock (Gen 3) Bottom-Contact Cable Connector
  • TS-L003120 FPC 0.5mm Pitch Horizontal Pull-Lock (Gen 3) Bottom-Contact Cable Connector
  • TS-L003120 FPC 0.5mm Pitch Horizontal Pull-Lock (Gen 3) Bottom-Contact Cable Connector
FFC/FPC Cable Connector

TS-L003120 FPC 0.5mm Pitch Horizontal Pull-Lock (Gen 3) Bottom-Contact Cable Connector

Inquire Download PDF
PREV：TS-Q003046 FPC 1.0mm Pitch Horizontal Back-Lock Cable ConnectorNEXT：TS-Q024087 FPC 1.0mm Pitch Horizontal K-Type Top-Contact Cable Connector
Technical Parameters Drawings
The surface of the plastic parts should be smooth，no rough edges，no obvious shrinkage，defects，cracks and other phenomena.
Temperature range： -25° C~+85° C.
Rated voltage： 50V，AC/DC
Contact resistance： <0.03Ω.
Insulation resistance： 2500MΩ

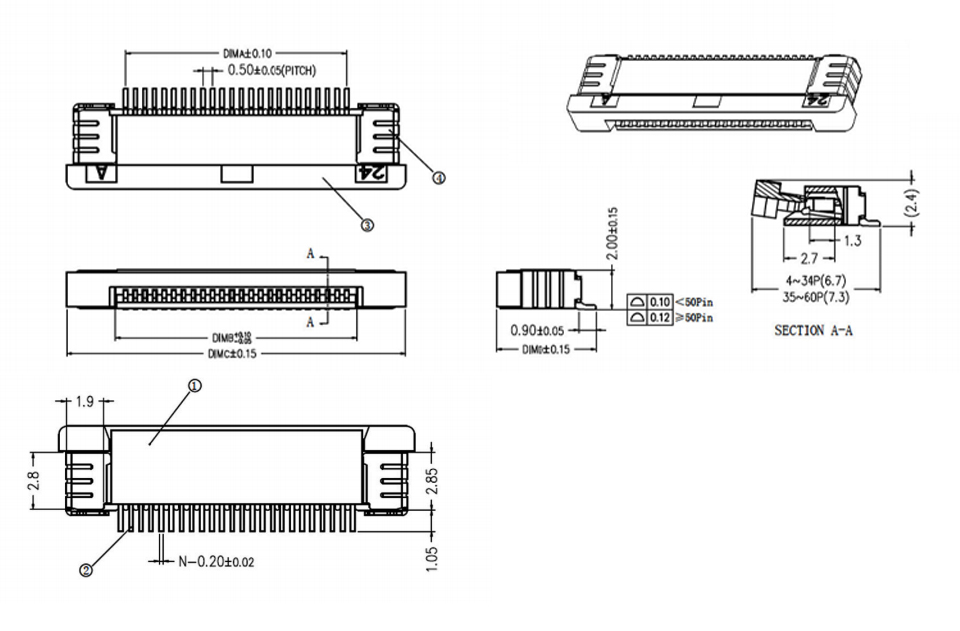

Dimensions Circuit Diagram

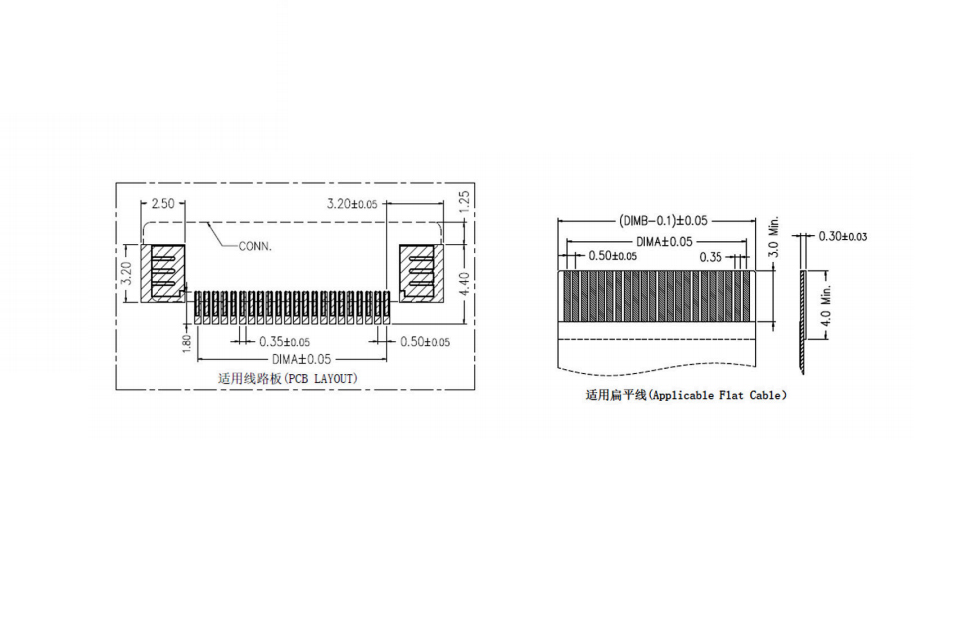

PCB Layout
