TS-Q024087 FPC 1.0mm Pitch Horizontal K-Type Top-Contact Cable Connector

Inquire Download PDF
PREV：TS-L003120 FPC 0.5mm Pitch Horizontal Pull-Lock (Gen 3) Bottom-Contact Cable ConnectorNEXT：TS-Q003141 FPC 1.0mm Pitch Horizontal K-Type Bottom-Contact Cable Connector
Technical Parameters Drawings
The surface of the plastic parts should be smooth，no rough edges，no obvious shrinkage，defects，cracks and other phenomena.）
Temperature range： -25° C~+85°C
Rated voltage： 50V，AC/DC
Contact resistance： <0.03Ω.
Insulation resistance： >500MΩ

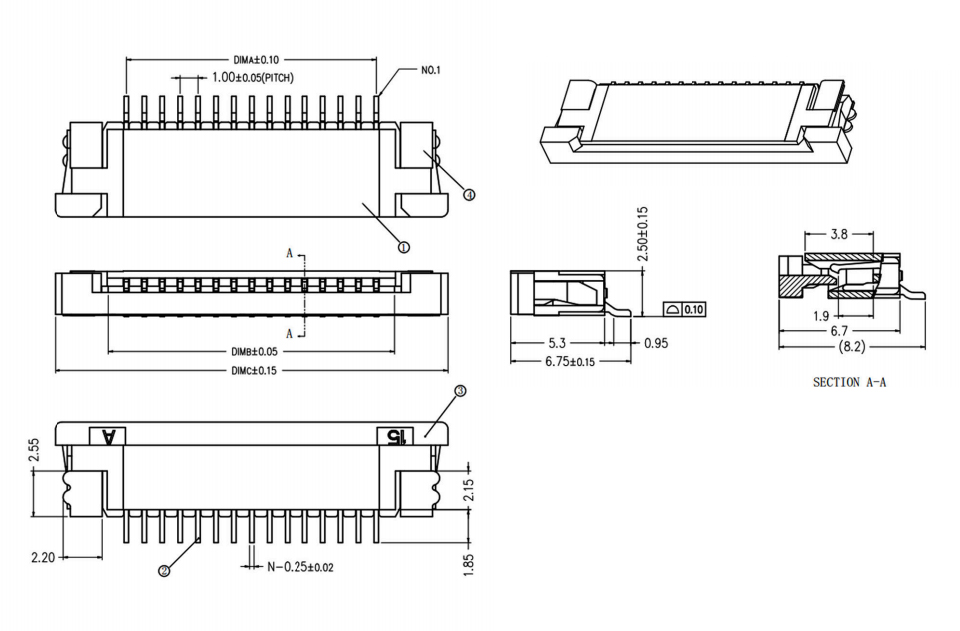

Dimensions Circuit Diagram

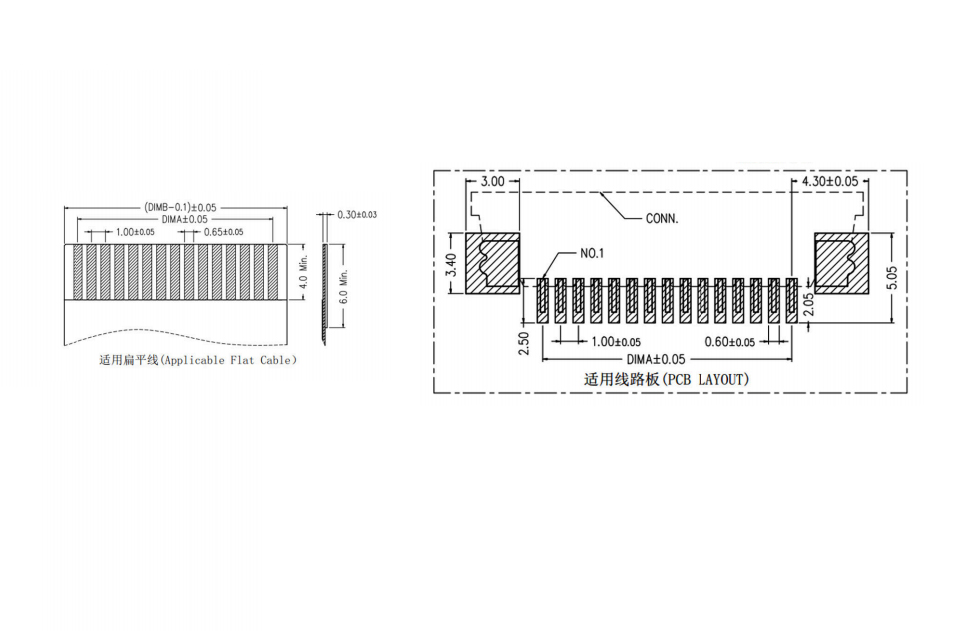

PCB Layout
