F Series Waterproof Tactile Switch

TS-F014001 8.5×8.5×3.95mm Silicone Tactile Switch with Wrapped Leads, Green Head

Inquire Download PDF
PREV：Tactile Switch TS-F012014, 8×8×15.0mm, Waterproof, Center 2-Pin, Red ActuatorNEXT：TS-F011020 6.5x6.5 Blue-Head Silicone Tactile Switch

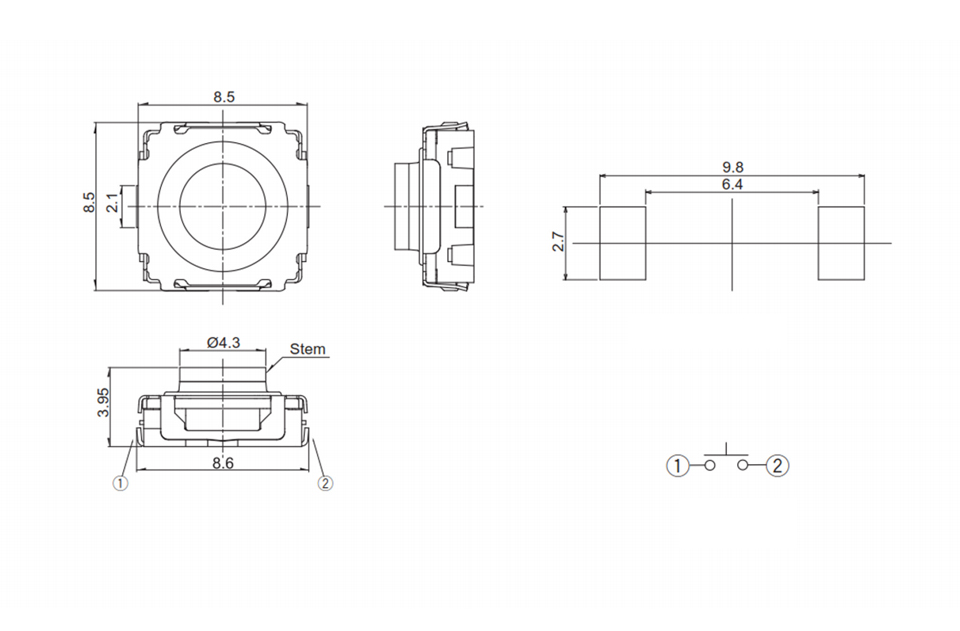

Technical Parameters Drawings
Rated current:  50mA 16V DC
Contact resistance:  100 mΩ
Actuation force:  400±80g
Travel:  0.9±0.4mm
Insulation resistance:  100 MΩ
Dielectric strength:  250V 50Hz 1 min
Lifespan:  200,000 cycles
Circuit Diagram
PCB Layout
