F Series Waterproof Tactile Switch

Tactile Switch TS-F012014, 8×8×15.0mm, Waterproof, Center 2-Pin, Red Actuator

Inquire Download PDF
PREV：No previous articleNEXT：TS-F014001 8.5×8.5×3.95mm Silicone Tactile Switch with Wrapped Leads, Green Head
Technical Parameters Drawings
Rated Current 50mA / 12V DC
Contact Resistance ≤ 100mΩ
Operating Force 260gf ± 50gf (210gf ~ 310gf)
Travel 0.3mm ± 0.1mm (0.2mm ~ 0.4mm)
Insulation Resistance ≥ 100MΩ (at 500V DC)
Durability  100,000 cycles min
Waterproof Rating IP67

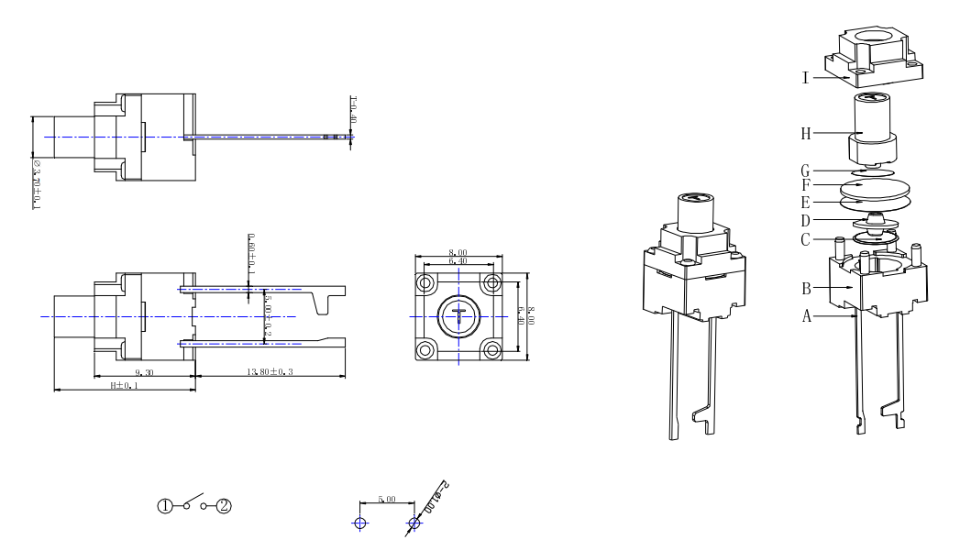

Dimensions Circuit Diagram
PCB Layout
