  • TS-F011020 6.5x6.5 Blue-Head Silicone Tactile Switch
  • TS-F011020 6.5x6.5 Blue-Head Silicone Tactile Switch
F Series Waterproof Tactile Switch

TS-F011020 6.5x6.5 Blue-Head Silicone Tactile Switch

Inquire Download PDF
PREV：TS-F014001 8.5×8.5×3.95mm Silicone Tactile Switch with Wrapped Leads, Green HeadNEXT：TS-F002015 6x6 Pin-Type Waterproof Tactile Switch
Technical Parameters Drawings
Rated current:  50mA 12VDC
Contact resistance:  100 milliohms
Actuation force:  400±100 gf
Travel:  0.9±0.3mm
Insulation resistance:  100 megohms
Lifespan:  1 million cycles

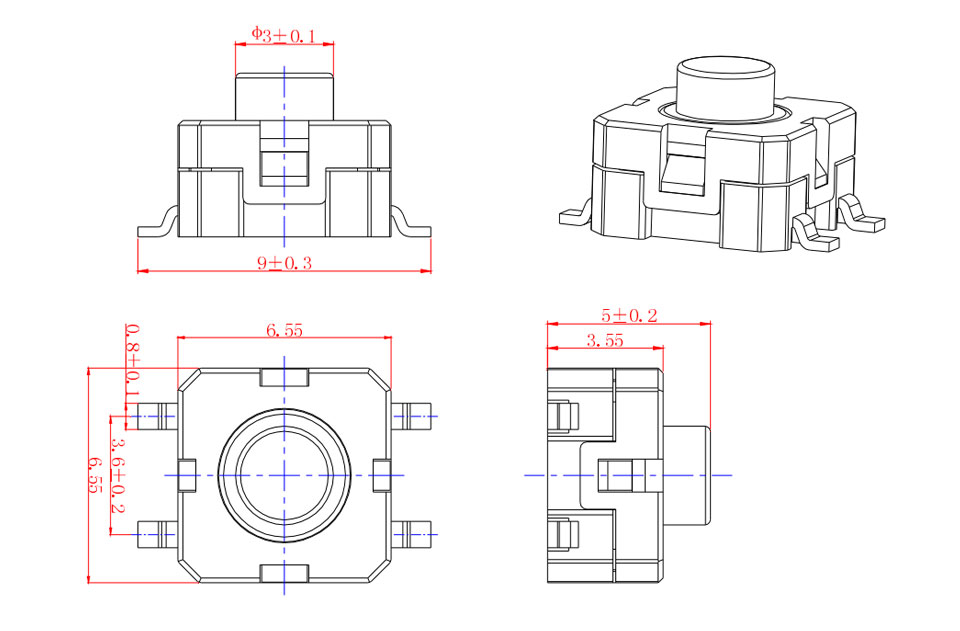

Dimensions Circuit Diagram

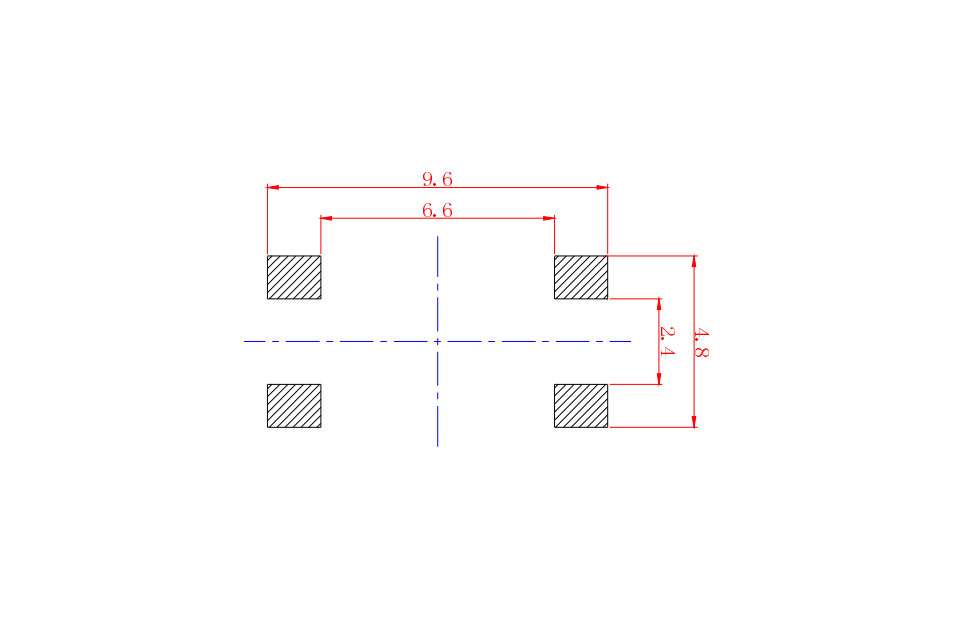

PCB Layout
