F Series Waterproof Tactile Switch
Inquire
Download PDF
Technical Parameters
Drawings
| Rated current: | 50 mA, 12 V DC |
| Contact resistance: | 100 mΩ |
| Travel: | 0.30± 0.1mm |
| Insulation resistance: | 100 MΩ |
| Withstand voltage: | 250 V, 50 Hz, 1 min |

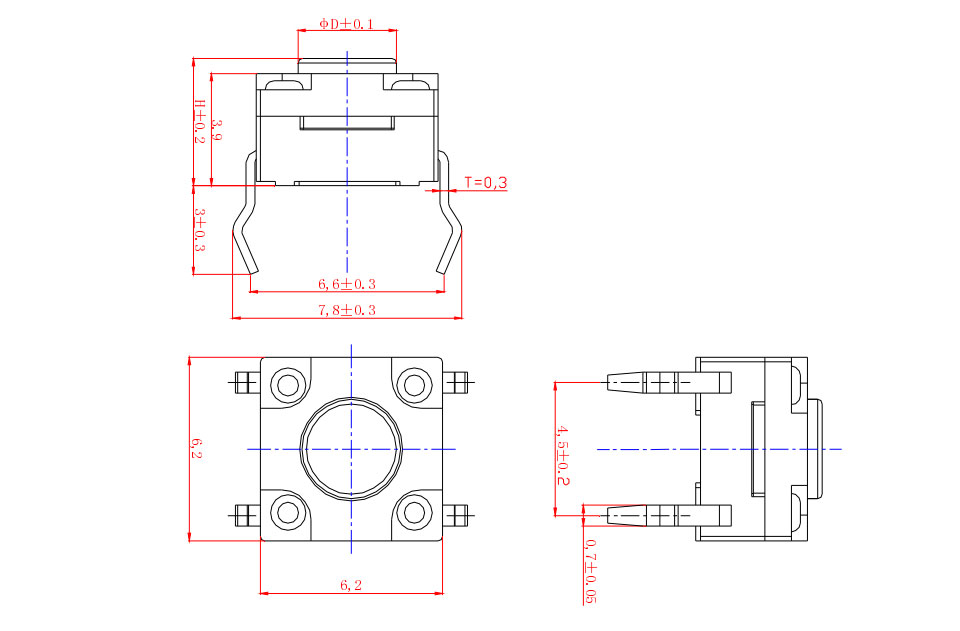

| Dimensions | Circuit Diagram |

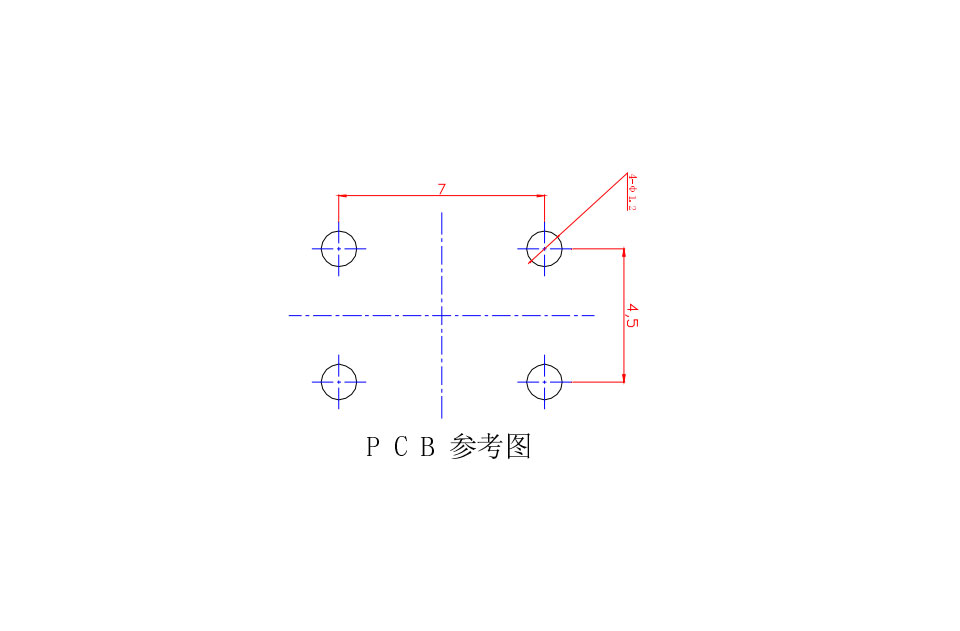

| PCB Layout | |
 |
 |
