  • TS-D007219 6*6 2-Position Tactile Switch with Bracket
  • TS-D007219 6*6 2-Position Tactile Switch with Bracket
D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch

TS-D007219 6*6 2-Position Tactile Switch with Bracket

Inquire Download PDF
PREV：TS-D007226 6*6*3.8 Flat-Pin 2-Position Tactile SwitchNEXT：TS-D007217 6.2*6.2 4-Pin SMD Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.35± 0.15mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min
Actuation force:  1st:110±30gf 2nd: 250±50gf
Lifespan:  200,000 cycles
Dimensions Circuit Diagram

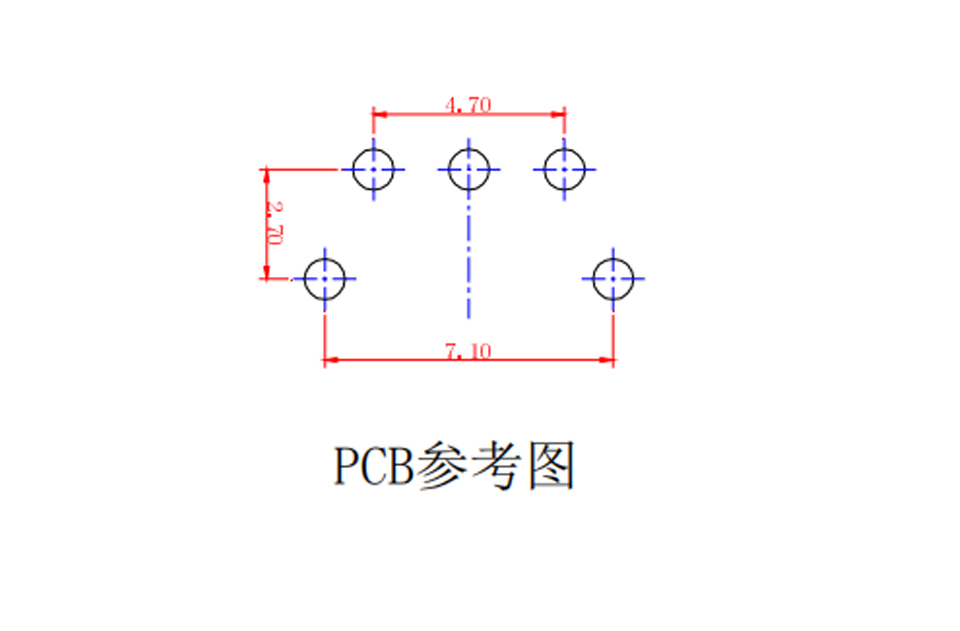

PCB Layout
