  • TS-D007226 6*6*3.8 Flat-Pin 2-Position Tactile Switch
  • TS-D007226 6*6*3.8 Flat-Pin 2-Position Tactile Switch
D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch

TS-D007226 6*6*3.8 Flat-Pin 2-Position Tactile Switch

Inquire Download PDF
PREV：TS-D016003 6*6 Top-Actuated/Bottom-SMD Tactile SwitchNEXT：TS-D007219 6*6 2-Position Tactile Switch with Bracket
Technical Parameters Drawings
Rated current:  50mA 12VDC
Contact resistance:  100 mΩ
Actuation force:  1st:200±50gf 2nd:450±100gf
Travel:  1st:0.25±0.15mm 2nd:0.4±0.15mm
Insulation resistance:  100 MΩ
Lifespan:  100,000 cycles

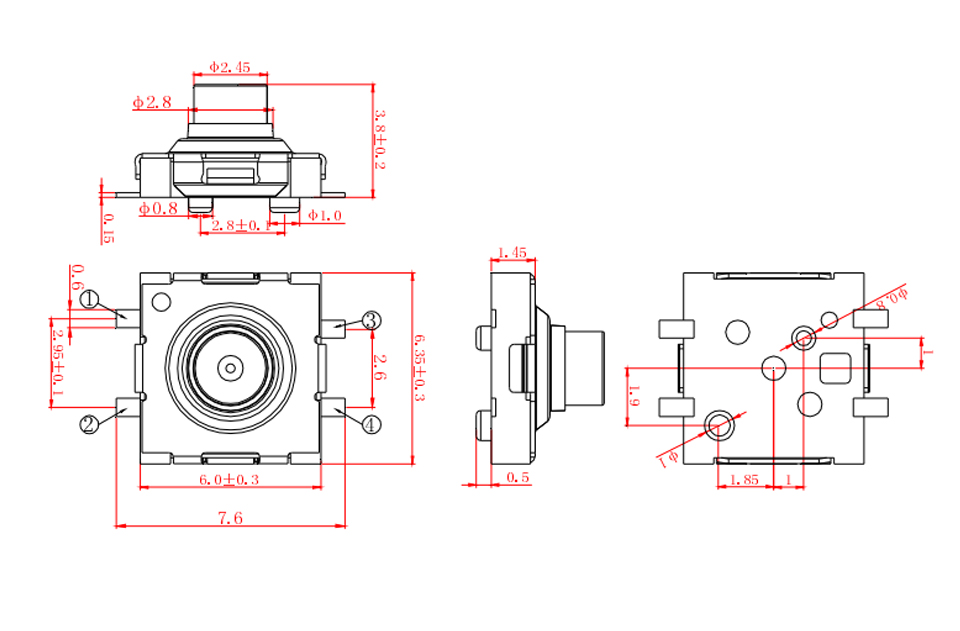

Dimensions Circuit Diagram

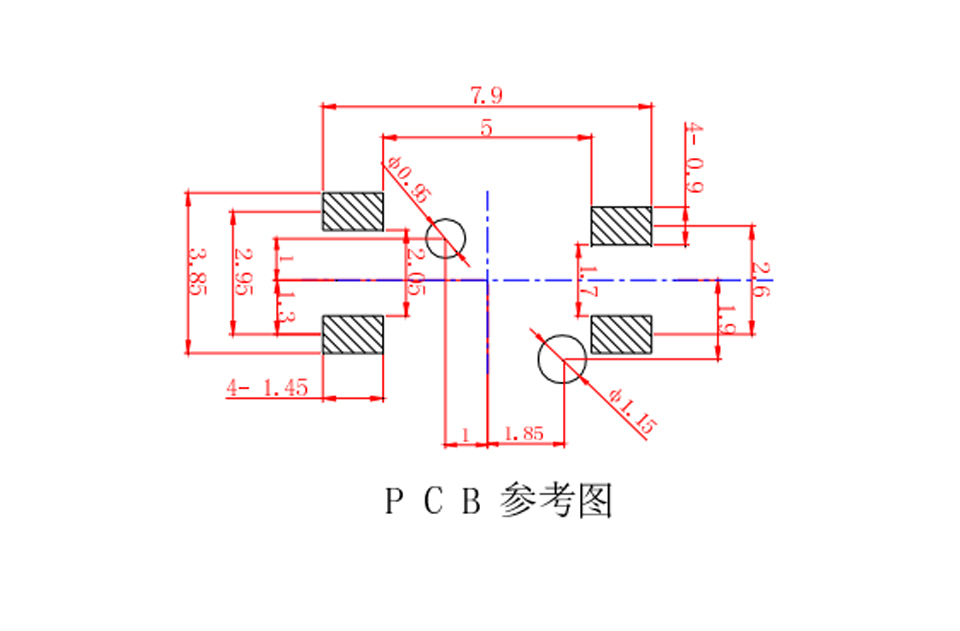

PCB Layout
