Home · Products · Tactile Switch · D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch · TS-D007217 6.2*6.2 4-Pin SMD Tactile Switch
  • TS-D007217 6.2*6.2 4-Pin SMD Tactile Switch
  • TS-D007217 6.2*6.2 4-Pin SMD Tactile Switch
D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch

TS-D007217 6.2*6.2 4-Pin SMD Tactile Switch

Inquire Download PDF
PREV：TS-D007219 6*6 2-Position Tactile Switch with BracketNEXT：TS-D010066A 4.5*4.5 Top-Actuated/Bottom-SMD Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.25± 0.1mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

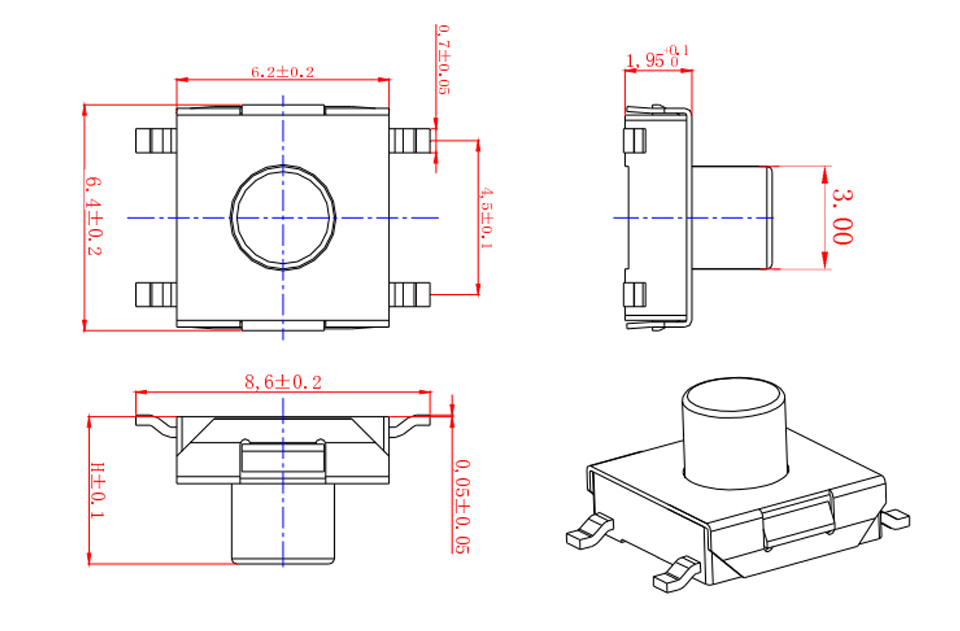

Dimensions Circuit Diagram

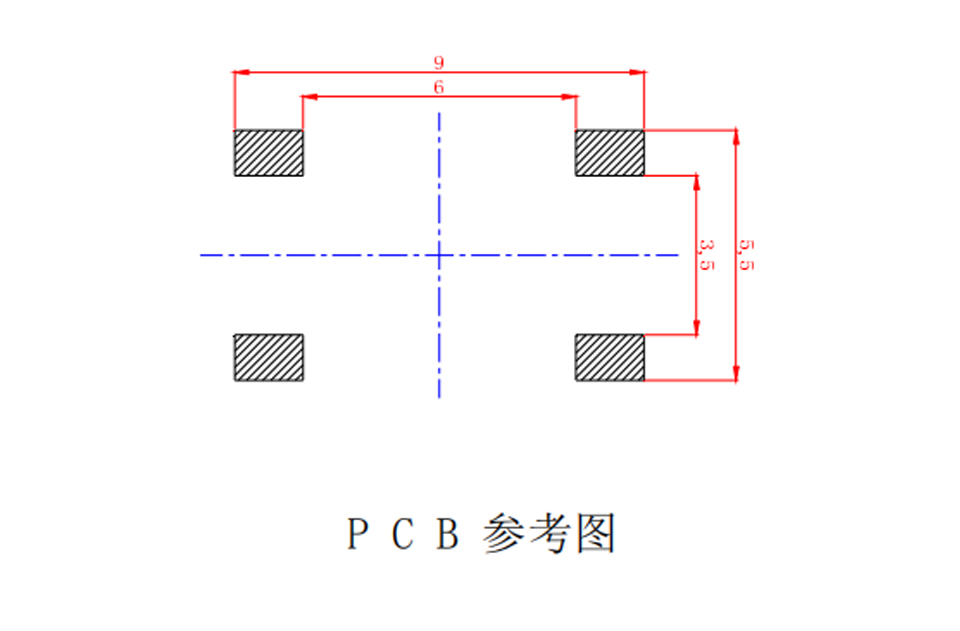

PCB Layout
