D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch
Inquire
Download PDF
Technical Parameters
Drawings
| Rated current: | 50 mA, 12 V DC |
| Contact resistance: | 100m Ω max |
| Travel: | 0.25±0.1mm |
| Insulation resistance: | 100 MΩmin |
| Dielectric strength: | 100 V, 50 Hz, 1 min |

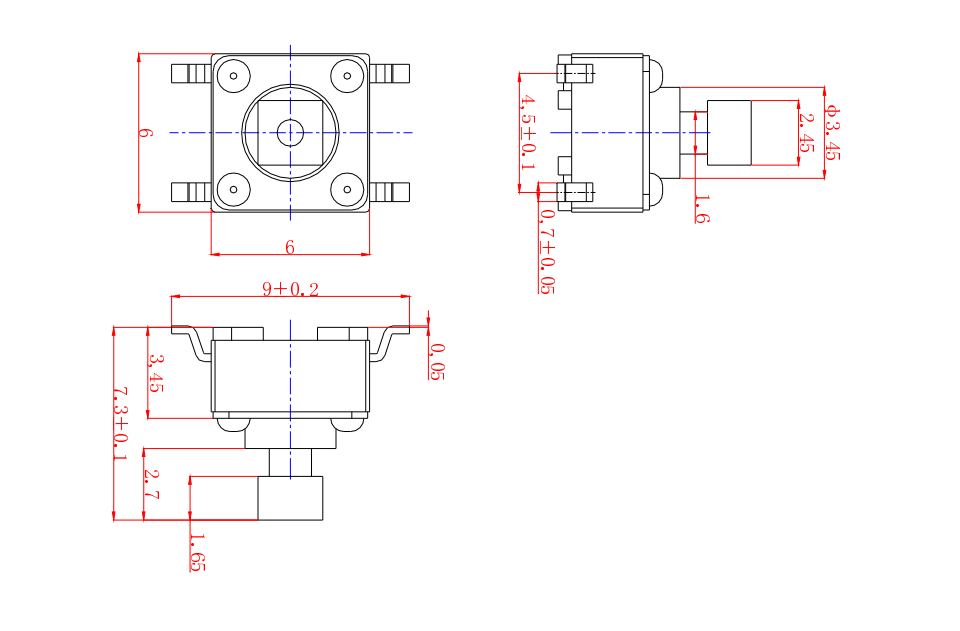

| Dimensions | Circuit Diagram |

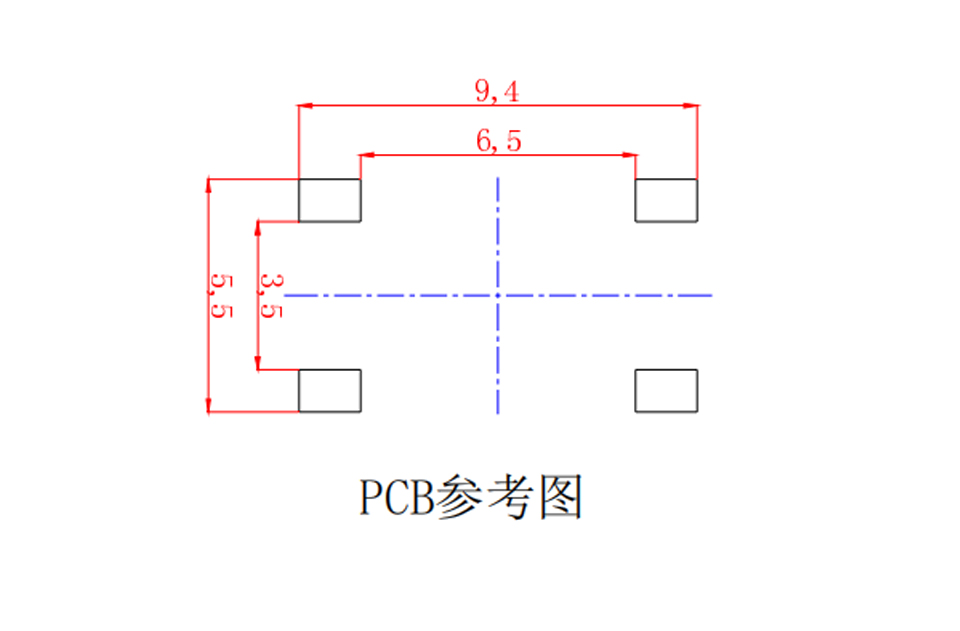

| PCB Layout | |
 |
 |
