Home · Products · Tactile Switch · D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch · TS-D001146 4.5*2.2 Gold-Plated Recessed-Mount Tactile Switch
  • TS-D001146 4.5*2.2 Gold-Plated Recessed-Mount Tactile Switch
  • TS-D001146 4.5*2.2 Gold-Plated Recessed-Mount Tactile Switch
D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch

TS-D001146 4.5*2.2 Gold-Plated Recessed-Mount Tactile Switch

Inquire Download PDF
PREV：TS-D003615 6*6 Square-Cap SMD Tactile SwitchNEXT：TS-D007239 6*6 2-Position SMD Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.15±0.05mm
Insulation resistance:  100 MΩ

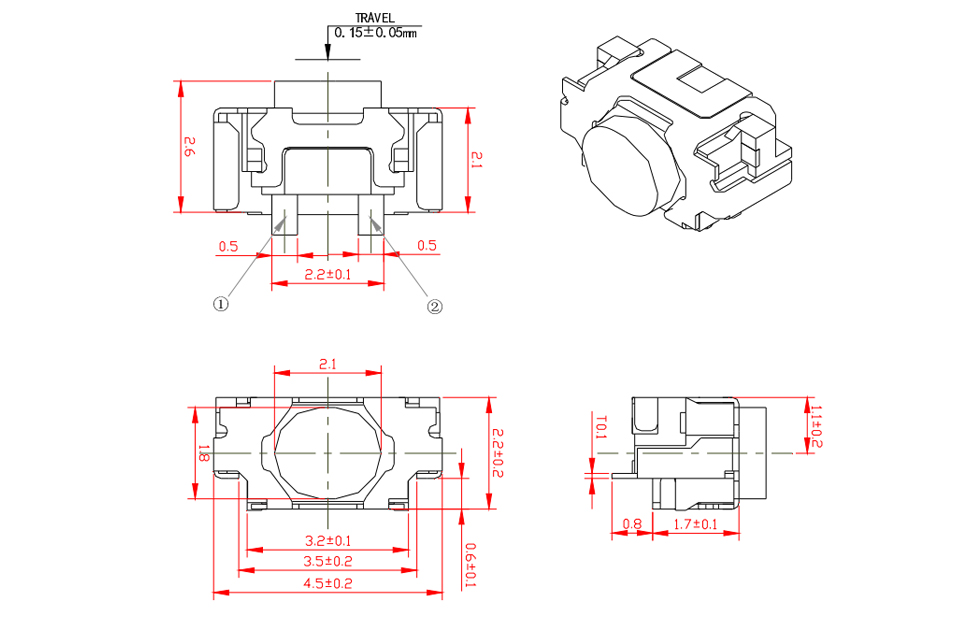

Dimensions Circuit Diagram

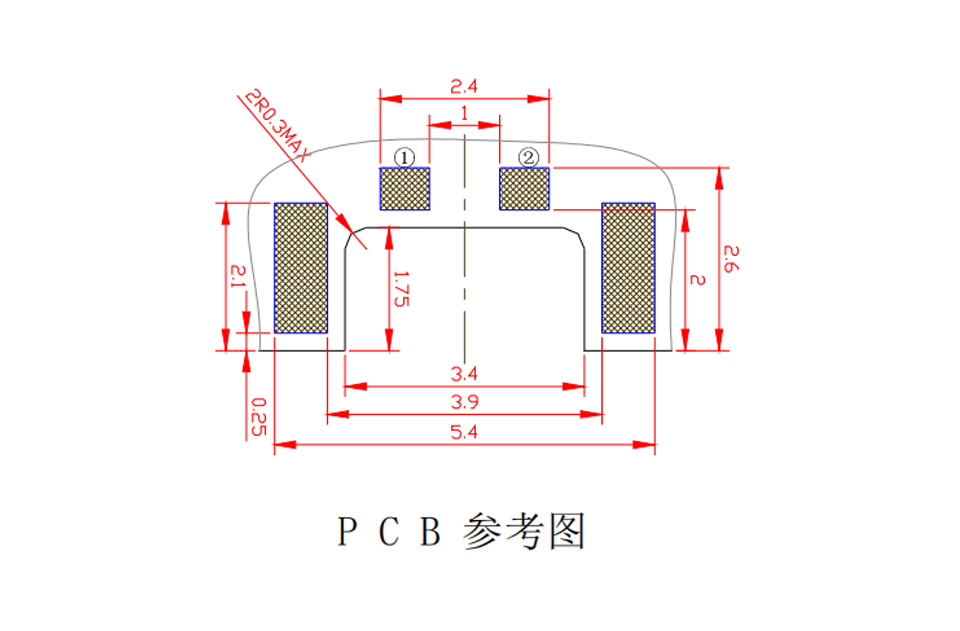

PCB Layout
