Home · Products · Tactile Switch · D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch · TS-D012002 4.5*4.5 Side-Actuated Full-SMD Tactile Switch
  • TS-D012002 4.5*4.5 Side-Actuated Full-SMD Tactile Switch
  • TS-D012002 4.5*4.5 Side-Actuated Full-SMD Tactile Switch
D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch

TS-D012002 4.5*4.5 Side-Actuated Full-SMD Tactile Switch

Inquire Download PDF
PREV：TS-D007134 6.2*6.2 4-Pin SMD Tactile Switch with Red CapNEXT：TS-D003615 6*6 Square-Cap SMD Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100m Ω max
Travel:  0.15±0.05mm
Insulation resistance:  100 MΩmin

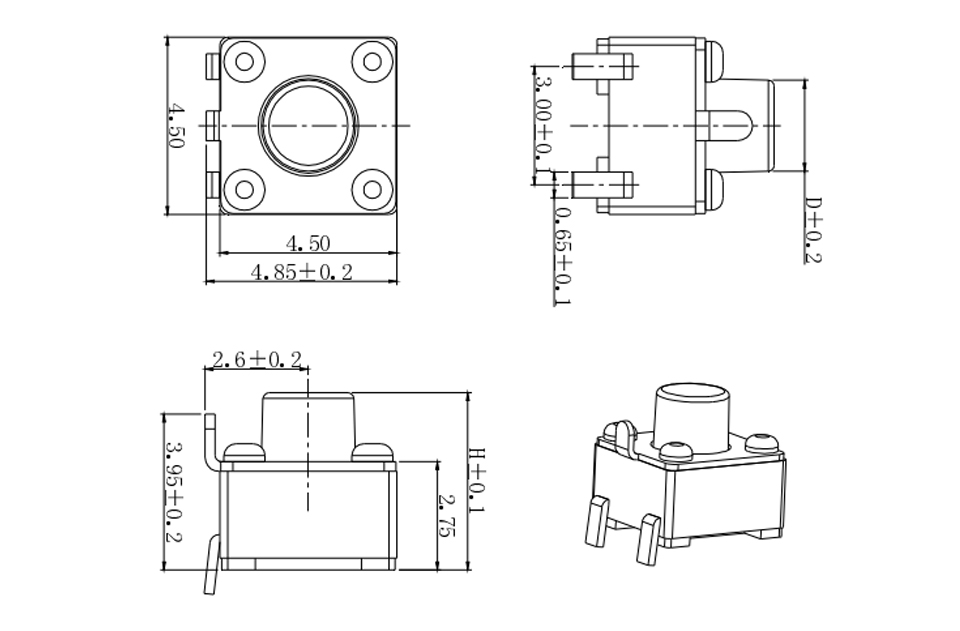

Dimensions Circuit Diagram

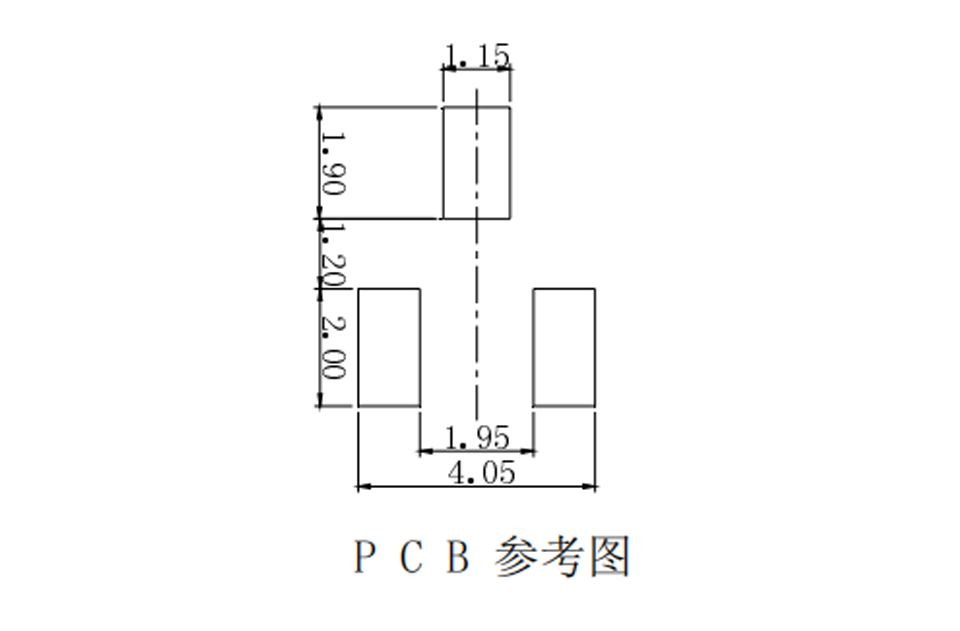

PCB Layout
