Technical Parameters
Drawings
| Rated electrical load: | DC12V 0.1A |
| Insulation resistance: | ≥100MΩ |
| Dielectric strength: | AC250V(50Hz)1min |
| Contact resistance: | ≤100mQ |
| Operating force: | 250±100gf |
| Service life: | 10000 |
| Stroke: | 2.0±0.2mm |

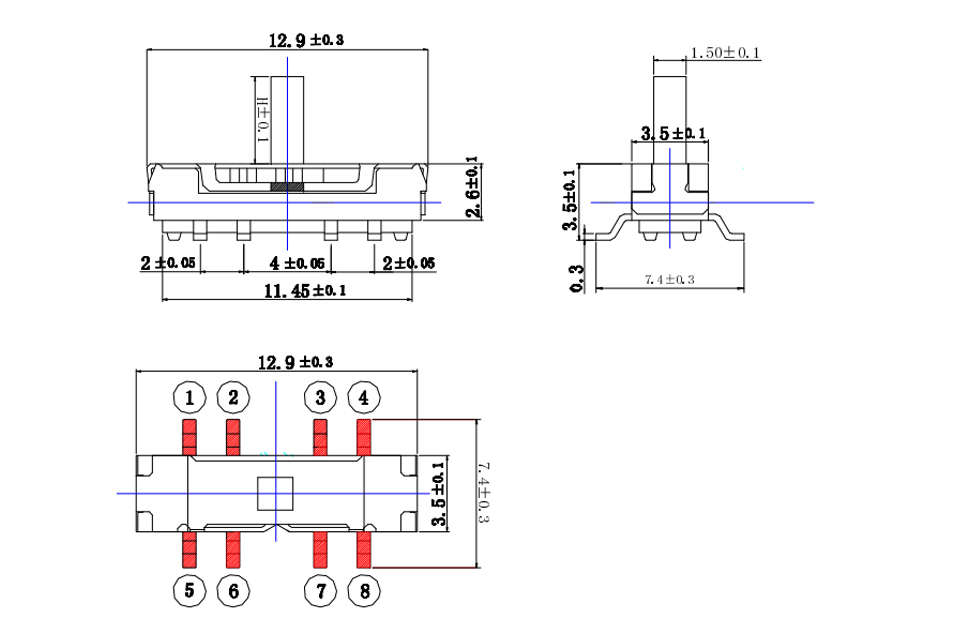

| Dimensions | Circuit Diagram |

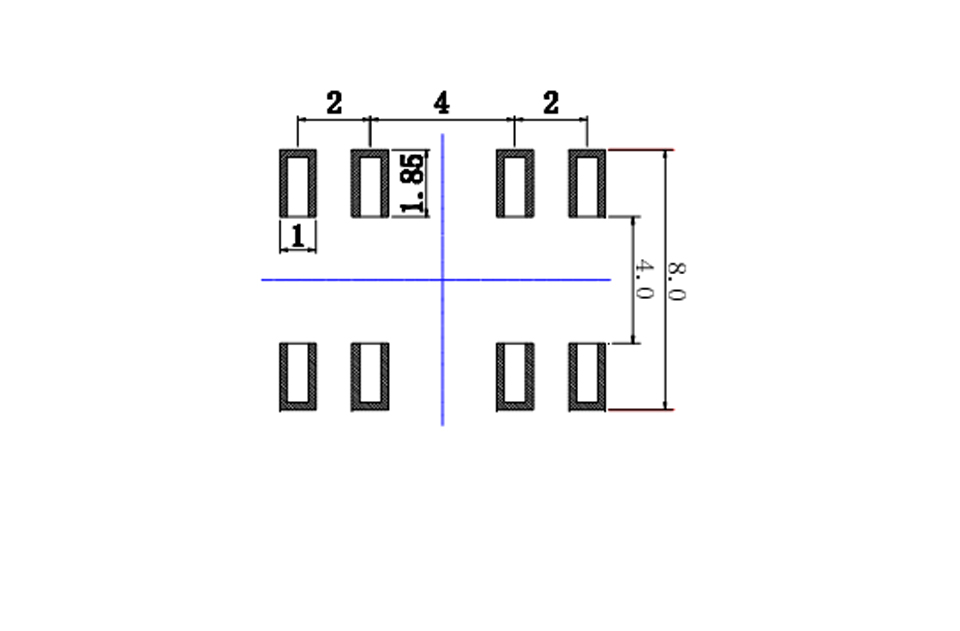

| PCB Layout | |
 |
 |
