Technical Parameters
Drawings
| Rated electrical load: | DC 12V 0.1A |
| Insulation resistance: | >100 MΩ |
| Dielectric strength: | AC 250V (50Hz) for 1 minute |
| Travel: | 1.5±0.2 mm |
| Contact resistance: | 100 mΩ |
| Actuation force: | 250 gf±100 gf |
| Service life: | 10,000 cycles |

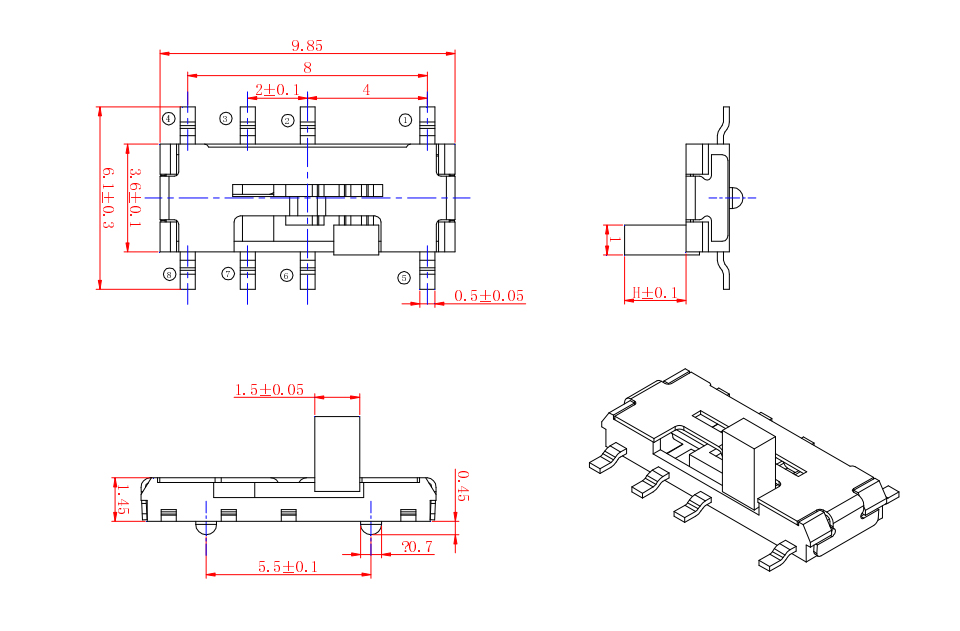

| Dimensions | Circuit Diagram |

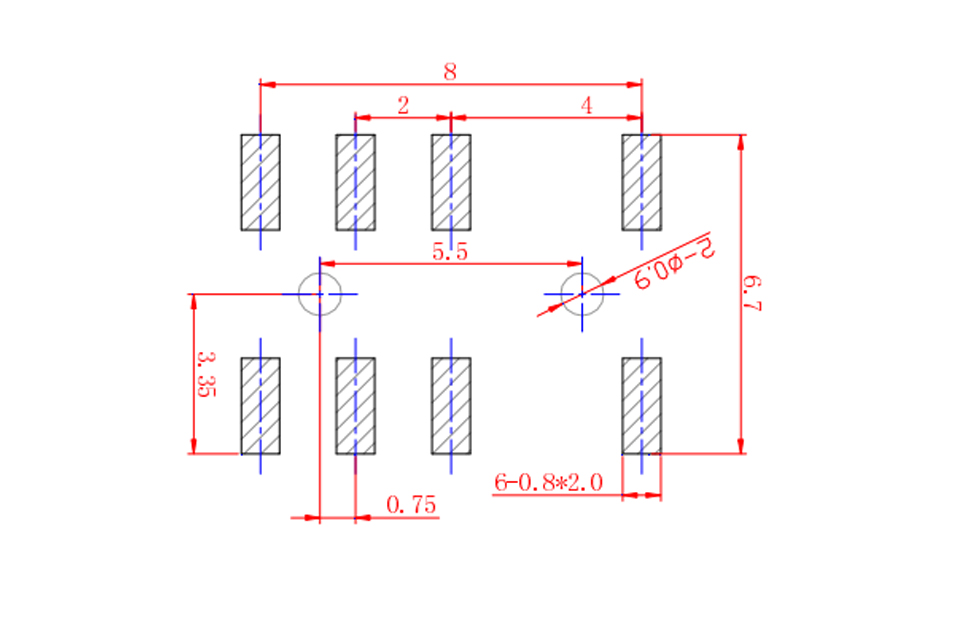

| PCB Layout | |
 |
 |
